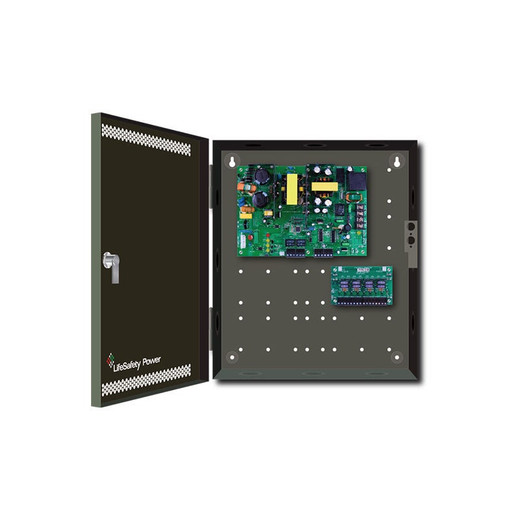

Lifesafety Power FPO150/250-2C83D8E8V/P16-B 16-Door Power Supply

Overview

The FPO150/250-2C83D8E8V/P16-B is a 400W regulated power supply designed for multi-door access control and security applications. It delivers 12A at 12V DC and 10A at 24V DC across 16 independent distribution rails, addressing the core problem: powering multiple door locks, readers, and auxiliary devices from a single, supervised source. Pre-wired for VERTX integration with Panduit cabling, this unit eliminates field assembly time on mid-scale deployments (16–24 zones typical).

Compatibility

This supply is pre-configured for VERTX ecosystems and compatible with access control systems using standard 12V and 24V door lock hardware. The 16-door rack configuration (16DR) with dual voltage outputs (DV) works with electronic strike locks, magnetic locks, request-to-exit sensors, and auxiliary monitoring loads common in commercial and industrial access control panels. Verify your existing panel or controller supports external multi-output power architecture before integration.

Installation Notes

The unit ships pre-wired to Panduit distribution standards. Confirm adequate UPS backup capacity if the system requires battery-backed power during outages — 400W is the supply capacity, but actual draw depends on connected load. Install in a secure, climate-controlled enclosure away from moisture and dust. Verify incoming AC voltage matches the FPO150/250 input spec before connection. Test each rail output under load before sealing the cabinet — a single shorted lock circuit can affect downstream rails if not properly fused.
