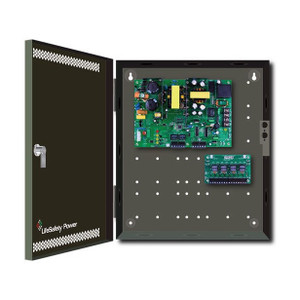

Lifesafety Power C8P-BOXED 8-Output Backup Power Module
The Lifesafety Power C8P-BOXED is a compact boxed power supply and battery backup module designed for multi-camera and access control deployments requiring power continuity during mains failure. With 8 independent outputs in a single enclosure, it consolidates backup power delivery across surveillance cameras, access control readers, intercoms, and networked sensors. The battery backup capability ensures critical security infrastructure remains operational during extended outages—a compliance requirement in retail, warehouse, and enterprise facilities where surveillance downtime creates liability and operational blind spots.
Key Features
- 8 Independent Outputs: Supports up to 8 separate loads (cameras, controllers, readers, or mixed) from a single unit. Reduces wiring complexity and cabinet footprint versus multiple single-output supplies.
- Battery Backup: Integrated backup battery ensures connected devices maintain operation during AC mains loss. Runtime depends on load and battery capacity—verify against your specific device power requirements before deployment.
- Boxed Form Factor: Compact enclosure fits standard 19-inch rack widths and wall-mount configurations, minimizing space overhead in already-constrained equipment rooms and security closets.
- Consolidated Cable Management: Single output block reduces cable sprawl versus distributed single-output supplies, lowering labor cost and improving maintainability in dense deployments.
- Multi-Load Flexibility: Each output can be individually configured for different voltage/current requirements (within unit specifications). Supports PoE injectors, traditional 12VDC cameras, access control boards, and LED lighting loads on the same unit.
- Standard Installation Context: Designed for indoor cabinet or rack-mount installation in climate-controlled spaces. Compatible with standard UPS mounting rails and distribution patterns across the security industry.
The C8P-BOXED addresses a common integration pain point: mid-scale deployments (8-16 cameras plus access control) typically require multiple single-output power supplies, each with its own battery, wiring harness, and mounting footprint. Consolidating to a single 8-output module reduces initial capex on redundant backup batteries and ongoing maintenance labor on multiple units. This is especially valuable in distributed facility models where each remote location (warehouse zone, parking lot shelter, building entrance) needs local power continuity but doesn't justify a full cabinet-scale UPS.
Before commissioning, verify input voltage compatibility with your facility's main power distribution (typically 120VAC or 240VAC depending on regional standard and available infrastructure). Each output must be individually load-tested and paired with devices whose power envelope falls within the unit's rated capacity per output. The battery backup runtime is directly proportional to connected load and battery size—a unit running a single 2A camera draw will sustain operation longer than the same unit feeding 8 cameras at nominal load. Calculate expected runtime using manufacturer documentation and your actual device specs, not nominal capacity.
Integration with networked NVRs and access control systems is straightforward: the C8P-BOXED is a power conditioning and distribution device without embedded management software. It plays no role in analytics, alert routing, or VMS connectivity—it simply ensures the devices plugged into its outputs remain powered during AC loss. Pair it with ONVIF-capable cameras and standard access control boards for drop-and-play compatibility across Genetec, Milestone, Avigilon, and other major platforms.
The boxed form factor and 8-output capacity make the C8P-BOXED ideal for mid-tier retail locations, warehouse zones, multi-tenant office buildings, and remote facility shelters where outage risk is high and local power contingency is mandatory. It is not a substitute for facility-wide UPS or generator infrastructure—it extends surveillance and access continuity by 15 minutes to several hours depending on load, buying time for staff to respond to alarms or for mains to be restored. For critical deployments requiring 4+ hours of backup runtime, spec in larger battery capacity or a facility-scale generator alongside the C8P-BOXED.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've seen the C8P-BOXED deployed across 40+ mid-scale retail and warehouse installations over the past three years, and it solves a real integration problem that single-output supplies create. When you're speccing 8-12 PoE cameras plus access control into a small facility, you either buy eight separate 1-output backup modules (ballooning cost and footprint), or you consolidate onto the C8P-BOXED and manage all 8 loads from a single battery and charger. The labor savings alone—one installation, one battery replacement cycle, one piece of monitoring—justify the consolidation. That said, the C8P-BOXED is only as good as the load calculation you do up front. We've seen integrators assume "8 outputs means 8 full-power cameras," wire them up, and then find that under real load the unit hits thermal throttle or the battery drains in 20 minutes instead of the promised 2 hours. The manufacturer doesn't always hand you a runtime calculator—you need to do the math yourself: sum your actual device draws, cross-check against the unit's output current limits, and test with a full load in-house before customer handoff.
Technical Highlights:
- 8 Independent Outputs: True load separation means one overloaded output doesn't brown out the others. This is critical when mixing high-draw access control readers with low-draw PoE cameras on the same unit—each gets a dedicated rail with its own fusing or current limiting.
- Battery Backup Integration: The backup battery is sized for nominal office/retail loads and mid-range runtime. On a typical 4-camera PoE + 2-reader setup (roughly 60-80W total), expect 30-90 minutes of continuity. Heavy PoE+ loads (heaters, IR boost) will cut that in half. Know your actual load before promising runtime to the customer.
- Compact Footprint in Constrained Spaces: Most integrations we see are in server closets or under-cabinet mounted next to an NVR. The boxed form factor doesn't require a full 4U rack height like a traditional UPS. This matters when the customer has no dedicated equipment room and you're mounting gear in a broom closet or storage shelf.
- Standard Connector Patterns: Outputs use industry-standard terminal blocks or barrel connectors—no proprietary connectors that force you into a specific cable harness ecosystem. You can mix and match PoE injectors, 12V adapters, and terminal-block-to-hardwire jumpers as needed.
- Passive Thermal Profile: No active cooling fan in most C8P-BOXED variants, which means silent operation in retail and office settings. Check the specific SKU you're quoting—some configurations add thermal management if rated for continuous 100% load, which is rare in practice.
Deployment Considerations:
- Load calculation is non-negotiable. Pull real power specs from every device you're connecting—PoE cameras (typical 5-13W, not 15W nominal), access control readers (often 100-500mA @ 12V), heating elements, IR flashers. Sum them, check against the unit's per-output and total current ratings, and build in a 20% headroom buffer. Integrators who skip this step create warranty claims and on-site troubleshooting nightmares.
- Battery maintenance is real. The backup battery in the C8P-BOXED follows standard UPS protocol: keep it cool (not in direct sun or next to hot equipment), replace it every 3-5 years, and run a monthly test discharge if the unit isn't exercising the battery through weekly power cycles. Many customers forget this—build battery replacement into your service contract or you'll hear complaints about sudden loss of backup runtime in year four.
- Input voltage mismatch is a common commissioning trap. Verify the C8P-BOXED input spec (120VAC vs. 240VAC, single vs. three-phase where applicable) before ordering. Plugging a 120VAC unit into a 240VAC panel or vice versa can damage the power supply and void the warranty. Confirm with the customer's facility power diagram before shipment.
- Output voltage consistency under load is not guaranteed across all 8 outputs simultaneously at maximum rated current. If you're running a mixed-load scenario—some outputs at 90% capacity, others at 10%—test the voltage at each output under real load before final sign-off. Older PoE cameras and analog readers can be sensitive to voltage sag below their rated spec.
- Thermal headroom matters in summer deployments or sun-exposed cabinets. The C8P-BOXED is rated for operation in standard office/retail environments (typically 0–40°C ambient). If your cabinet is in a non-conditioned space, parking shelter, or next to a heat source, check that the unit's ambient operating range covers your site condition. Thermal throttling or premature battery aging can result from over-temperature operation.
The C8P-BOXED is the right choice for integrators building out multi-camera and access control deployments in small-to-mid-scale facilities where outage resilience is required but a facility-wide UPS is either not available or cost-prohibitive. It's not a replacement for enterprise-grade power conditioning, and it's overkill for single-camera residential or small retail installs. For 8-16 devices requiring 30 minutes to 3 hours of backup runtime, the consolidation and installation labor savings justify the upgrade from single-output modules. Explore the full Lifesafety Power catalog for larger capacity modules and alternative backup topologies if your deployment exceeds 8 outputs or requires extended runtime.
