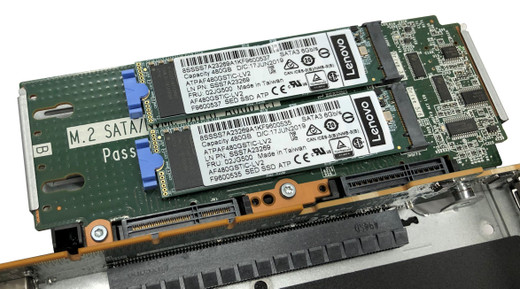

Lenovo Thinksystem M.2 with Mirroring Enablement KIT - 7Y37A01093

Lenovo 7Y37A01093 M.2 RAID Enablement Kit

Overview

The Lenovo 7Y37A01093 is a server enablement kit designed to add M.2 storage capabilities, including RAID functionality for mirroring, to specific Lenovo ThinkSystem servers. This adapter allows for the integration of M.2 NVMe or SATA drives, providing enhanced storage performance and data redundancy options for operating systems or critical applications within a server environment. It addresses the need for faster boot times and more resilient storage configurations.

Compatibility

This enablement kit is compatible with select Lenovo ThinkSystem servers. Specifically, it supports the ThinkSystem SR630 V4 and ThinkSystem SR650 V4. Different part numbers within the 7Y37A01093 designation (e.g., CD0S, CCCZ, C0JJ) map to specific configurations such as front or rear installation, and support for NVMe, SATA, or both, often with Broadcom RAID controllers.

Installation Notes

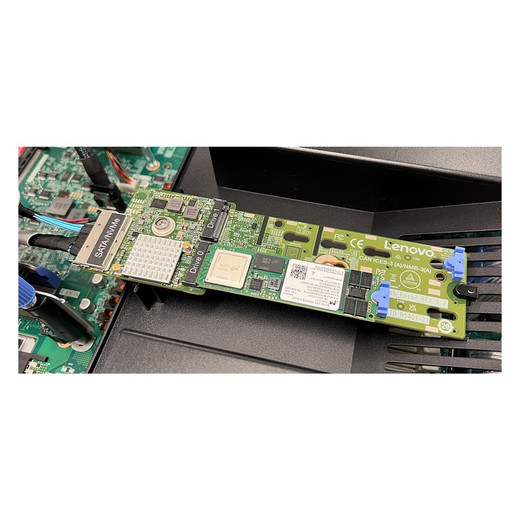

Installation requires direct access to the server's internal components. The specific adapter (identified by feature codes like CD0S, CCCZ, C0JJ) dictates whether it mounts in the front or rear of the chassis. It enables the use of M.2 drives for RAID configurations (0, 1), providing data mirroring for enhanced reliability. Ensure the correct feature code is selected based on server model and desired drive interface (NVMe/SATA).
