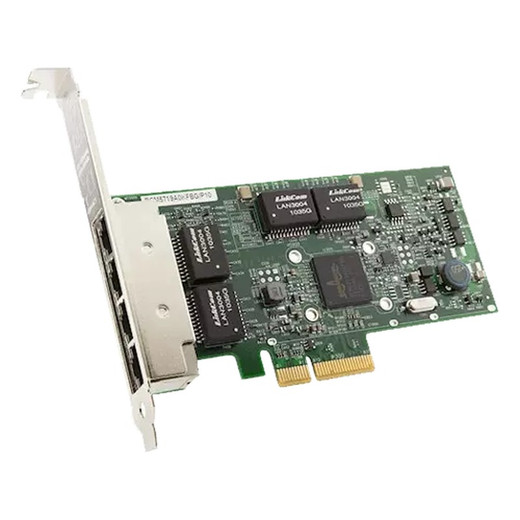

Lenovo 7ZT7A00484 Thinksystem Broadcom Netxtreme PCIE 1GB 4-PORT RJ45 Ethernet Adapter

Lenovo 7ZT7A00484 Ethernet Adapter

Overview

The Lenovo 7ZT7A00484 is a PCIe network adapter designed to expand server and workstation connectivity. It provides four Gigabit Ethernet ports, enabling you to add robust wired networking capabilities for demanding applications like video surveillance recording, data acquisition, or high-throughput storage access. Its internal design means it occupies a PCIe slot, keeping external chassis space free.

Compatibility

This adapter is built for server and workstation environments. It interfaces via PCI Express, compatible with standard PCIe slots found in most enterprise-grade systems. It supports IEEE 802.1Q VLAN tagging, allowing for network segmentation critical in managed environments.

Installation Notes

The adapter installs into an available PCI Express slot. It requires no external power source, drawing power directly from the PCIe bus. The dimensions are 9.50 x 6.00 x 2.00 inches (L x W x H), with internal measurements of 132 mm (width) x 19 mm (depth) x 65 mm (height), ensuring fit within standard server chassis. Country of Origin: MX.
