Lenovo 7XH7A05896 Thinksystem SR530/SR630 2.5INCH Sata/sas 8-BAY Backplane KIT

Lenovo 7XH7A05896 ThinkSystem SR530/SR630 2.5-Inch SAS/SATA 8-Bay Backplane Kit

Overview

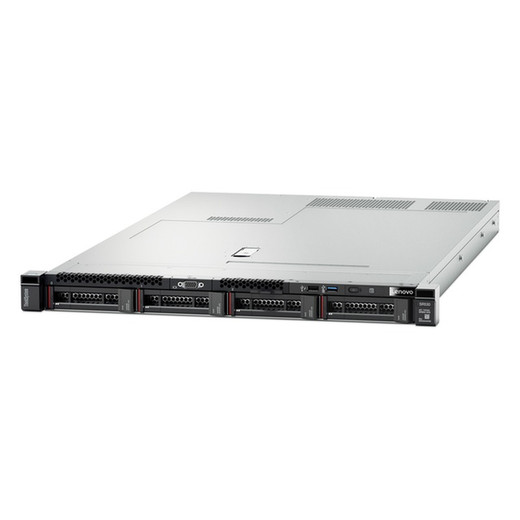

The 7XH7A05896 is a factory-new 8-bay 2.5-inch backplane kit for Lenovo ThinkSystem SR530 and SR630 rack servers. If you're expanding drive capacity or replacing a failed backplane in an existing SR530/SR630 chassis, this kit provides the drive interconnect infrastructure needed to bring eight additional 2.5-inch SAS or SATA drives online. Dual-protocol support (SAS and SATA) means you can mix enterprise SAS drives alongside SATA SSDs or HDDs within the same bay configuration — useful when tiering storage workloads without committing to a single interface standard.

Compatibility

This backplane kit is designed specifically for the Lenovo ThinkSystem SR530 and SR630 server platforms. Both are 1U and 2U rack servers in the ThinkSystem S-series lineup. The backplane supports 2.5-inch small-form-factor drives only — 3.5-inch LFF drives are not compatible. Interface support covers SAS and SATA; NVMe U.2 or M.2 drives are outside the scope of this backplane. Verify your SR530 or SR630 chassis configuration before ordering — not all SR530/SR630 base configurations ship with all backplane slots populated, and the exact bay numbering and cabling requirements depend on your installed storage controller and expander card.

Installation Notes

The kit weighs 3.05 lb and measures 21.00 x 16.10 x 4.40 inches — confirm clearance within your rack before installation. Country of origin is Mexico. Consult the ThinkSystem SR530 or SR630 Hardware Maintenance Manual for backplane seating, SAS/SATA signal cable routing to the RAID adapter, and any required firmware updates to recognize the expanded bay count after installation.
