Lenovo 4Z57A10848 LC-LC OM4 MMF Cable
Lenovo 4Z57A10848 LC-LC OM4 MMF Cable
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: 4Z57A10848
UPC: 889488461486
Condition: New
Write a Review
Lenovo

Lenovo 4Z57A10848 LC-LC OM4 MMF Cable

Lenovo 4Z57A10848 LC-LC OM4 MMF Cable Overview The Lenovo 4Z57A10848 is a 24-port SFP+ Fibre Channel switch designed for high-performance Storage Area…

$301.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Lenovo 4Z57A10848 LC-LC OM4 MMF Cable

$301.99
Add to Cart

Overview

SKU: 4Z57A10848
UPC: 889488461486
Condition: New

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Lenovo 4Z57A10848 LC-LC OM4 MMF Cable

Overview

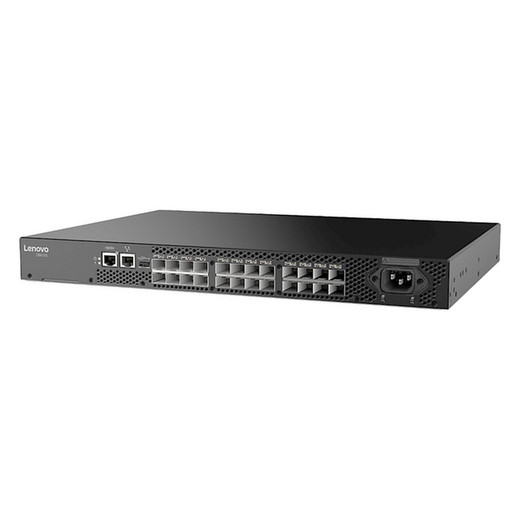

The Lenovo 4Z57A10848 is a 24-port SFP+ Fibre Channel switch designed for high-performance Storage Area Networks (SANs). It provides the necessary connectivity for enterprise-class storage solutions, supporting auto-sensing port speeds up to 32 Gbps. This switch is ideal for deployments requiring robust data traffic handling and advanced fabric services, enabling efficient data access and management in virtualized environments.

Compatibility

This switch is compatible with 32 Gb FC SFP+ transceivers (short and long wavelength) and 16 Gb FC SFP+ transceivers (short, long, and extended long wavelength). It supports Full Fabric mode (F_Port, M_Port, E_Port, D_Port) and Access Gateway mode (F_Port, NPIV-enabled N_Port). The number of activated ports is model-dependent and can be upgraded via licenses, but the physical chassis provides 24 SFP+ ports.

Installation Notes

The unit features a 1U rack-mount form factor with dimensions of 43 mm height, 429 mm width, and 307 mm depth. It includes four fixed fans with N+1 cooling redundancy providing non-port-to-port side airflow. Power is supplied by a single fixed 150 W AC power supply (100-240 V) with an IEC 320-C14 connector. SFP+ transceivers are hot-swappable. Management is handled via an Ethernet port (10/100/1000 Mb), RS-232 serial port, or USB port.

Expert Analysis
Specifications
Ir Lowlight: 850nm
Mount Type: Rack
Ports: 24x SFP+ physical ports. The number of ports that are activated is model dependent and can be upgraded with additional licenses - see thePort activation licensessection.
Dimensions: Height: 43 mm (1.7 in.); width: 429 mm (16.9 in.); depth: 307 mm (12.1 in.)
Weight: Empty: 4.2 kg (9.3 lb); Fully configured: 5.8 kg (12.7 lb)
Component: Specification
Machine Type: 6559 (1-year and 3-year warranty),7D8P (Lifetime warranty)
Media Types: 32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL)16 Gb FC SFP+ transceivers: SWL, LWL, extended long wavelength (ELWL)
Port Speeds: 32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing16 Gb FC SFP+ transceivers: 16/8/4 Gbps auto-sensing
Fc Port Types: Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port)Access Gateway mode: F_Port and NPIV-enabled N_Port
Data Traffic Types: Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only)
Classes Of Service: Class 2, Class 3, Class F (inter-switch frames)
Standard Features: Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools
Optional Features: Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric)
Cooling: Four fixed fans with N+1 cooling redundancy. Non-port to port side airflow
Power Supply: One fixed 150 W AC (100 - 240 V) power supply (IEC 320-C14 connector)
Hot-Swap Parts: SFP+ transceivers
Management Ports: One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage)
Management Interfaces: EZSwitch Setup;Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View, or Brocade Network Advisor
Transceiver: Standard
16 Gb Fc Elwlsfp+ (00My770: FC-PI-5
10/100/1000 Mb Ethernet Port: 1000BASE-T
Serial Port: RS-232
Cto Only: 1.8m, 10A/100-250V, 2xC13PM to IEC 320-C14 Rack Power Cable
