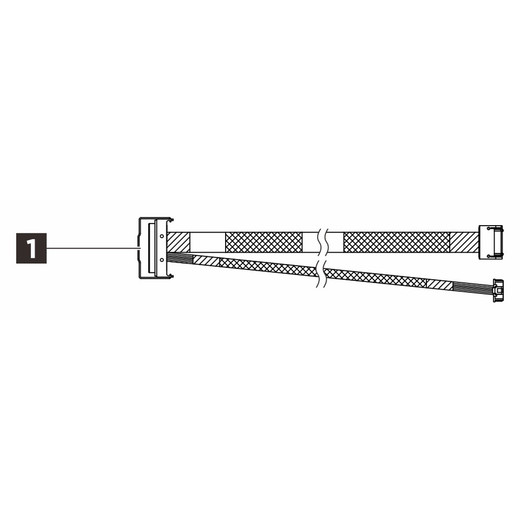

Lenovo 4XH7B03859 SR650 V4 M.2 RAID B540D-2HS Sata/nvme

Lenovo 4XH7B03859 SR650 V4 M.2 RAID B540D-2HS NVMe/SATA Adapter

Overview

The Lenovo 4XH7B03859 is the ThinkSystem SR650 V4 M.2 RAID B540D-2HS storage adapter, purpose-built to add dual M.2 drive capacity to SR650 V4 servers via a single internal slot. Supporting both NVMe and SATA M.2 interfaces, this adapter lets you mix drive technologies — deploy NVMe for OS boot acceleration or SATA M.2 for cost-conscious secondary storage — without occupying precious hot-swap bays. At 10 lb shipping weight, it ships factory-new from Lenovo's Mexico manufacturing facility.

Key Features

• Dual M.2 Interface Support (NVMe + SATA): The B540D-2HS controller handles both NVMe and SATA M.2 form factors, giving you flexibility to populate with whatever drive tier your workload demands — high-throughput NVMe for hypervisor boot volumes or SATA M.2 where cost per GB matters more than peak IOPS.
• SR650 V4 Platform Fit: Designed specifically for the ThinkSystem SR650 V4 chassis. Validated hardware components eliminate the compatibility risk that comes with aftermarket alternatives — you get predictable firmware co-versioning and full Lenovo XClarity management integration.
• RAID-Capable Controller (B540D): The B540D controller provides hardware RAID capability for the M.2 pair, enabling redundancy on boot volumes without consuming a separate PCIe RAID card slot or drawing on the server's software RAID stack.
• Bay-Preserving Design: By routing boot or cache storage through M.2, you preserve all hot-swap 2.5" and 3.5" bays for application data — a meaningful tradeoff in dense storage builds where every bay counts.

Integration & Compatibility

The 4XH7B03859 is validated for the Lenovo ThinkSystem SR650 V4 platform. Verify chassis generation before ordering — SR650 V3 and earlier use different M.2 adapter SKUs. Interface support covers both NVMe (PCIe-attached) and SATA M.2 drives; consult Lenovo's SR650 V4 option compatibility matrix for validated drive models and maximum capacity per slot. UNSPSC classification 26121620 (Rechargeable batteries and storage accessories) confirms channel classification as a storage subsystem component. For broader Lenovo server options or servers and storage components, explore the full catalog. If you're planning storage architecture for a surveillance or AI compute deployment, the NVR and storage planning section may also be relevant.

Frequently Asked Questions

Q: What server platform is the 4XH7B03859 compatible with?

A: The 4XH7B03859 is designed for the Lenovo ThinkSystem SR650 V4. It is not validated for SR650 V3 or earlier generations — confirm your chassis generation before ordering.

Q: Does the 4XH7B03859 support both NVMe and SATA M.2 drives?

A: Yes. The B540D-2HS controller supports both NVMe (PCIe-attached) and SATA M.2 interface types, allowing you to populate slots with either drive technology depending on your performance and cost requirements.

Q: Does the B540D controller provide hardware RAID for the M.2 drives?

A: The B540D is a RAID-capable controller for M.2 drives. For validated RAID levels and drive support, consult Lenovo's official SR650 V4 option compatibility documentation.

Q: Where is the 4XH7B03859 manufactured?

A: Country of origin is Mexico (MX), per distribution feed data.

Ted Perry

The 4XH7B03859 is one of those components that solves a specific SR650 V4 build problem cleanly: you need RAID-protected boot storage without burning a hot-swap bay or a PCIe slot on a discrete controller. The B540D-2HS dual-slot M.2 adapter handles that — NVMe or SATA, your call based on what you're booting.

Technical Highlights:

• Dual Interface (NVMe + SATA M.2): Gives you a real choice at populate time — NVMe for sub-millisecond OS boot latency on hypervisor hosts, SATA M.2 where the budget is tighter and sequential boot speed is acceptable.
• B540D RAID Controller: Hardware RAID on the M.2 pair means your boot volume survives a single-drive failure without software overhead — relevant for always-on surveillance servers or edge AI inference nodes that can't afford unplanned downtime for a rebuild.
• Bay Preservation: Every M.2-based boot drive you deploy here is one fewer bay consumed by OS storage — in a 24-bay SR650 V4 build, that's a meaningful increase in usable application storage density.

Deployment Considerations:

• Verify SR650 V4 chassis generation before ordering — this adapter is not cross-compatible with V3 or earlier SR650 variants; Lenovo uses distinct M.2 option SKUs per server generation.
• Evidence covers form factor and interface only; RAID level support, maximum M.2 drive capacity per slot, and firmware co-versioning requirements should be confirmed against Lenovo's SR650 V4 option compatibility matrix before specifying drives.

Best fit for SR650 V4 deployments where boot volume redundancy is required and bay density needs to stay allocated to application or surveillance storage — edge NVR builds, hyperconverged edge nodes, and dense video analytics servers are the natural home for this adapter.
