Lenovo 4XG7A72956 ST650 V2 Gold 6338 32C 205W 2.0GHZ

Lenovo 4XG7A72956 Intel Xeon Gold 6338 32-Core Server Processor

Overview

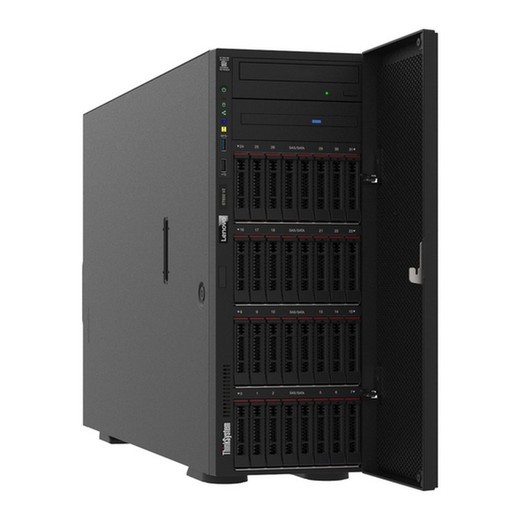

The Lenovo 4XG7A72956 is a factory-configured Intel Xeon Gold 6338 processor option for the ThinkSystem ST650 V2 tower server. Built on Intel's 3rd Generation Xeon Scalable (Ice Lake) architecture and fabricated on a 10nm process node, this 32-core, 64-thread CPU targets workloads that demand sustained multi-threaded throughput — think large-scale video analytics servers, enterprise NVR hosts running dozens of simultaneous AI-inference streams, or compute-dense back-end infrastructure where core count drives licensing or parallel-processing headroom.

At 2.0 GHz base with a 3.2 GHz boost ceiling and a 205W TDP, the 4XG7A72956 is positioned as a performance-class option within the Gold 6000 series — not the lowest-power choice, but one that delivers the thread count and cache depth that enterprise workloads require.

Key Features

• 32 Cores / 64 Threads: With 64 logical processors available, hypervisors, containerized analytics engines, and multi-stream VMS platforms can assign dedicated vCPU resources per workload without contention. This matters on servers running Milestone XProtect or Genetec with GPU-accelerated analytics — the OS scheduler has room to breathe.
• 3.2 GHz Boost Frequency: The 1.2 GHz gap between base (2.0 GHz) and boost (3.2 GHz) means latency-sensitive tasks — alarm event processing, metadata indexing, live-view rendering — get elevated clock rates automatically when thermal and power headroom allow.
• Intel Speed Select Technology — Priority Cores: The 6338 implements Intel SST with 12 designated high-priority cores running at 2.2 GHz and 20 efficiency cores at 1.8 GHz. For mixed workloads (e.g., live analytics + background archiving simultaneously), the OS can assign latency-sensitive threads to the priority-core pool without manual NUMA tuning.
• 48MB L3 Cache: A 48MB last-level cache reduces main-memory round-trips on data-intensive workloads like database-backed VMS metadata stores or real-time object-detection pipelines. More cache means fewer cache misses and more consistent frame-processing latency.
• 64-bit / 11.2 GT/s System Bus: The 11.2 GT/s UPI interconnect rate sustains high-bandwidth memory and I/O traffic without saturating the CPU-to-chipset path — relevant on ST650 V2 configurations with multiple high-throughput NVMe drives or dual-port 25GbE NICs serving live camera streams.
• LGA 4189 Socket / Ice Lake 10nm Node: The 10nm fabrication delivers improved instructions-per-clock and better power efficiency per core compared to prior-generation Cascade Lake. For always-on server deployments running 24/7, even modest per-core efficiency gains accumulate meaningfully in annual power draw.
• 205W TDP: This is a high-TDP processor. Verify that the ST650 V2 chassis configuration, power supplies, and cooling solution are spec'd to handle 205W continuous thermal output — especially in single-PSU or non-redundant cooling configurations in warmer equipment rooms.

Integration and Compatibility

The 4XG7A72956 is a Lenovo-qualified processor option for the ThinkSystem ST650 V2 platform. As an LGA 4189 (Whitley platform) part, it is compatible with Intel's 3rd Generation Xeon Scalable processor family socket ecosystem. When configuring the ST650 V2 as an enterprise NVR host or analytics server, pair this processor with sufficient DDR4 ECC RDIMM capacity — the 6338 supports up to 8 memory channels, and under-populating channels limits memory bandwidth that analytics and storage I/O workloads depend on. For network video recorder deployments running video management software at scale, verify that your VMS vendor's hardware compatibility list includes the ST650 V2 platform. Explore the full Lenovo server and compute catalog for complementary ThinkSystem components. For infrastructure planning, the PoE switch selection and upstream network architecture should be sized to match the camera-stream ingestion rates this processor tier is built to handle. Consider pairing with network-attached storage for extended retention architectures where the ST650 V2 handles compute while NAS handles capacity.

Frequently Asked Questions

Q: What server platform is the Lenovo 4XG7A72956 compatible with?

A: The 4XG7A72956 is a Lenovo-qualified processor option for the ThinkSystem ST650 V2 tower server. It uses the LGA 4189 socket and is part of Intel's 3rd Generation Xeon Scalable (Ice Lake) platform.

Q: How many cores and threads does the 4XG7A72956 provide?

A: The Intel Xeon Gold 6338 in this configuration delivers 32 physical cores and 64 threads via Intel Hyper-Threading, running at a 2.0 GHz base frequency with a 3.2 GHz maximum boost.

Q: What is the TDP of the 4XG7A72956, and does it affect chassis selection?

A: The processor has a 205W TDP. This is a high-wattage processor — confirm that the ST650 V2 configuration's power supply and cooling solution are rated to support 205W continuous operation, particularly in single-PSU or high-ambient-temperature environments.

Q: What is Intel Speed Select Technology and how does it apply to this processor?

A: The Xeon Gold 6338 implements Intel Speed Select Technology with 12 high-priority cores running at 2.2 GHz and 20 standard cores at 1.8 GHz. This allows workloads to benefit from elevated clock rates on latency-sensitive threads without requiring manual configuration for every use case.

Q: How much L3 cache does the 4XG7A72956 include?

A: The processor includes 48MB of L3 cache, which helps reduce main-memory latency on data-intensive workloads such as real-time analytics processing or database-backed video management metadata operations.

Marty Allison

The 4XG7A72956 is a legitimate workhorse option for anyone building a compute-dense ST650 V2 for enterprise security infrastructure. The Intel Xeon Gold 6338's 32-core, 64-thread configuration at 2.0 GHz base is squarely aimed at multi-tenant workloads — where you're running a VMS engine, an analytics pipeline, and a database tier on the same physical host and need the thread count to keep each isolated without thrashing the scheduler.

Technical Highlights:

• Intel SST Priority Cores (12 @ 2.2 GHz): Having 12 dedicated high-priority cores is genuinely useful on mixed-workload servers. Assign your live-view decoding or alarm-processing threads to the priority pool and let background archiving or report generation run on the remaining 20 cores — you get predictable latency on the paths that matter without sacrificing aggregate throughput.
• 48MB L3 Cache: On a server ingesting high-frame-rate streams from dozens of cameras, a deep cache reduces the frequency of main-memory round-trips during metadata lookups and stream buffering. The difference shows up as lower CPU utilization headroom at the same stream count versus shallower-cache alternatives.
• 3.2 GHz Boost: The 1.2 GHz headroom above base clock matters when burst workloads hit — motion-triggered analytics events, simultaneous operator live-view requests, or end-of-day report generation. The boost engages automatically without application-level tuning.

Deployment Considerations:

• At 205W TDP, this processor will stress a minimal ST650 V2 cooling or power configuration. If you're speccing a redundant-PSU, high-airflow chassis build for a security operations center, account for this draw at the rack PDU level — especially if you're running dual-socket or adding GPU cards for on-host inference.
• The LGA 4189 platform supports 8-channel DDR4 memory on the 6338 — under-populating memory slots significantly narrows memory bandwidth, which directly limits how many concurrent analytics streams the platform can sustain. Size memory population to match stream count, not just capacity.

This processor configuration makes the most sense in enterprise deployments where the ST650 V2 is serving as a centralized analytics and VMS host for a mid-to-large camera system — particularly where on-server AI inference (license plate recognition, behavioral analytics) is running alongside live recording on 40+ channels and the team needs a single-socket tower form factor rather than a rackmount deployment.
