Lenovo 4XG7A63272 SR550/SR590/SR650 Xeon Gold 5218R

Lenovo 4XG7A63272 Intel Xeon Gold 5218R 20-Core Server Processor

Overview

The Lenovo 4XG7A63272 is a factory-tray Intel Xeon Gold 5218R processor engineered specifically for deployment in Lenovo ThinkSystem SR550, SR590, and SR650 servers. Built on Intel's 2nd Generation Xeon Scalable (Cascade Lake) architecture at 14nm, it delivers 20 physical cores and 40 threads with a 2.1 GHz base clock that turbos to 4.0 GHz under single- or low-core-count workloads. With a 125W TDP and LGA 3647 socket, this is a validated, channel-sourced upgrade or replacement option for integrators scaling compute density in existing ThinkSystem platforms without migrating chassis.

Key Features

• 20 Cores / 40 Threads: The 5218R's 20-core count handles parallel workloads — simultaneous VMS decoding streams, multi-tenant virtual machines, or concurrent analytics pipelines — without the thread-starvation that narrows single-socket 8- and 12-core parts at peak load. Forty logical threads mean the OS scheduler has headroom even when background processes compete.
• 2.1 GHz Base / 4.0 GHz Boost: The wide base-to-boost spread (nearly 2x) is practical for workloads that alternate between sustained throughput and burst response. A VMS host running continuous 4K decode at base clock can spike to 4.0 GHz during motion-triggered analytics without throttling the recording pipeline.
• 27.5 MB L3 Cache: The large cache reduces memory bus pressure on latency-sensitive operations. In database-backed access control platforms or edge analytics engines processing repeated object-classification queries, keeping hot data sets in L3 measurably reduces response latency compared to processors with sub-20MB cache at the same core count.
• 1 TB Maximum Memory Support: The 5218R's memory controller supports up to 1 TB of installed RAM per socket — enough to run fully in-memory databases, large-scale video indexing, or multiple isolated VM guests on a single SR650 node without hitting a memory ceiling that forces a second server.
• 125W TDP — Power-Managed: At 125W, this processor fits within standard ThinkSystem thermal envelopes designed for 1U and 2U rack operation. Data center operators can calculate rack power budgets without factoring in TDP exceptions or custom cooling requirements.
• LGA 3647 (Socket P) — Platform-Matched: The 4XG7A63272 is socket-matched to the SR550, SR590, and SR650 platforms. Dropping it into an unsupported server risks BIOS incompatibility and voided support contracts — this part is validated for those three chassis specifically, which matters when the server is under a service agreement.
• 64-bit / 40-Thread Operation: All workloads running on modern 64-bit operating systems — Windows Server, RHEL, VMware ESXi — exploit the full instruction width and thread count without software modification. No 32-bit legacy constraints.
• Tray Package (No Cooler Included): Shipped as a tray processor without heatsink. The SR550/SR590/SR650 platforms use server-grade active cooling assemblies that ship with the chassis or are sourced separately. Verify the chassis thermal solution before ordering — this is not a desktop boxed processor with an included fan.

Integration and Compatibility

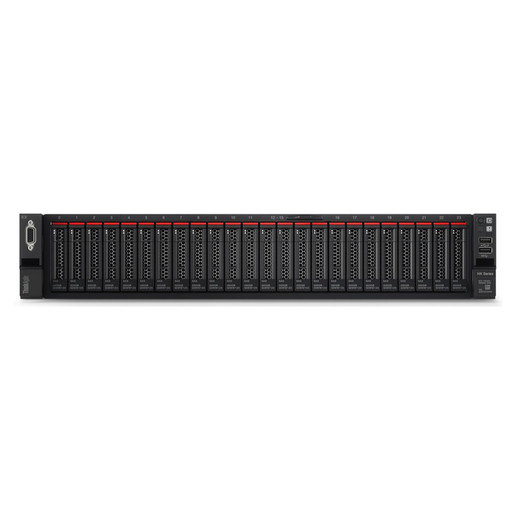

The 4XG7A63272 is validated for Lenovo ThinkSystem SR550, SR590, and SR650 server platforms. These are dual-socket 2U-class enterprise servers commonly deployed as VMS hosts, hypervisor nodes, and edge compute platforms in physical security and IT infrastructure environments. The SR650 in particular supports dual Xeon Gold installations, enabling scale-up to 40 cores and 80 threads per node for workloads that outgrow single-socket configurations. The Cascade Lake microarchitecture supports Intel DL Boost (VNNI instructions), which accelerates AI inference workloads — relevant for on-server deep learning analytics engines that process camera feeds natively rather than offloading to a GPU. Memory configuration for this processor should use DDR4 DIMMs validated in Lenovo's server compatibility matrix; the 1 TB memory ceiling is a per-socket architectural limit, not a per-DIMM constraint. For Lenovo ThinkSystem server deployments and server processor upgrades, confirm BIOS microcode version compatibility with your SR550/SR590/SR650 prior to installation — Lenovo publishes firmware prerequisites for each Cascade Lake stepping. Integrators building out high-channel NVR platforms or rack server compute nodes will find the 5218R's core density and memory headroom appropriate for 64+ camera recording environments running GPU-assisted or CPU-based analytics. Consult a server selection guide when matching processor TDP to rack power budget across multi-node deployments.

Frequently Asked Questions

Q: Which Lenovo servers is the 4XG7A63272 compatible with?

A: The 4XG7A63272 is validated for the Lenovo ThinkSystem SR550, SR590, and SR650 server platforms. These are 2U enterprise servers using the LGA 3647 (Socket P) platform. Do not install in other server models without verifying Lenovo's compatibility matrix and BIOS support.

Q: Does the 4XG7A63272 include a heatsink or cooling solution?

A: No. This is a tray-packaged processor shipped without a cooler. The ThinkSystem SR550, SR590, and SR650 platforms use active server cooling assemblies that must be sourced separately or are included with the server chassis. Do not attempt to install without a compatible server heatsink.

Q: What is the maximum RAM supported by the Xeon Gold 5218R in these servers?

A: The 5218R's memory controller supports up to 1 TB of memory per socket. In a dual-socket SR650 configuration, total addressable memory can reach 2 TB across both processors.

Q: What is the TDP of the 4XG7A63272 and does it require special power provisioning?

A: The Xeon Gold 5218R has a 125W Thermal Design Power rating. This fits within the standard thermal and power envelopes of the SR550, SR590, and SR650 platforms without requiring non-standard power supplies or cooling upgrades.

Q: Is the 5218R a good fit for VMS or video analytics server workloads?

A: Yes. The 20-core / 40-thread configuration handles parallel decode and analytics streams efficiently. The Cascade Lake microarchitecture also includes Intel DL Boost (VNNI instructions), which can accelerate AI inference for camera analytics engines that run natively on CPU rather than a discrete GPU.

Q: What generation is the Xeon Gold 5218R processor?

A: The 5218R is a 2nd Generation Intel Xeon Scalable processor, based on the Cascade Lake microarchitecture, fabricated at 14nm. It succeeds the original Skylake-SP Xeon Scalable generation and introduces improved memory bandwidth and DL Boost support.

Ted Perry

When I spec the 4XG7A63272 for a build, the number I keep coming back to is 27.5 MB of L3 cache paired with 40 logical threads — that combination is why this processor handles mixed recording-plus-analytics workloads without the cache-thrash you see on leaner Xeon Gold parts when multiple analytics pipelines compete for memory bandwidth simultaneously.

Technical Highlights:

• 4.0 GHz Turbo Boost: The nearly 2x swing from 2.1 GHz base to 4.0 GHz boost gives the server room to handle burst events — simultaneous motion alerts across dozens of cameras — without sustaining the peak clock (and peak power draw) continuously. Practical for 24/7 recording environments where most frames are idle but analytics must respond instantly.
• 20 Cores / 125W TDP Ratio: At 6.25W per core at base, this is one of the more compute-dense options in the Cascade Lake lineup that still fits the standard SR550/SR590/SR650 thermal solution. You're not buying extra cooling infrastructure to deploy it.
• 1 TB Memory Ceiling: The memory headroom is the spec that future-proofs the platform. A VMS host that starts with 128 GB can scale to 1 TB per socket without a processor swap — relevant when camera counts grow or in-memory indexing requirements expand.

Deployment Considerations:

• This is a tray processor — no heatsink, no installation hardware included. Budget for a compatible ThinkSystem active heatsink if you're upgrading a production SR650 mid-deployment. Chassis thermal validation should happen before the processor ships, not after.
• The LGA 3647 socket is not forgiving of installation errors. The socket's pin array is delicate; processor installation in SR-series servers requires the Lenovo-supplied processor installation tool. Attempting to seat it without the tool risks bent pins and a voided board.

The 4XG7A63272 is the right call for integrators standing up a dual-socket SR650 as a 64-to-128 channel VMS host with on-server deep learning analytics — the core count handles concurrent stream decode, the 27.5 MB cache absorbs repeated analytics inference queries, and the 1 TB memory ceiling leaves room for the platform to grow as camera density scales.
