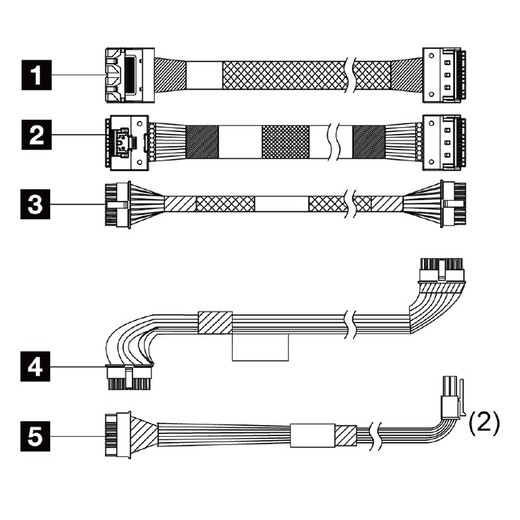

Lenovo 4X97A87505 SR650 V3 Front EXP BP Sas/sata CBL

Lenovo 4X97A87505 SR650 V3 Front Expanded Backplane SAS/SATA Cable

Overview

The Lenovo 4X97A87505 is a factory-new, genuine internal cable assembly designed for the ThinkSystem SR650 V3 server platform, connecting the front expanded backplane to the system's SAS/SATA controller. If you're expanding drive capacity in an SR650 V3 chassis and need the correct OEM interconnect — not an aftermarket substitute — this is the part to source. The 4X97A87505 ships from Mexico-based Lenovo manufacturing and is procured through channel-direct distribution to ensure genuine provenance.

At 10 lb, this is a substantial cable assembly — not a lightweight signal wire. That weight is consistent with a multi-drop backplane cable harness that routes multiple SAS/SATA lanes simultaneously across the front expanded bay section of the SR650 V3 enclosure. Using the correct OEM cable matters here: SR650 V3 backplane signaling is tuned to Lenovo-specified impedance and connector tolerances. Third-party substitutes introduce compatibility risk with the server's firmware-level backplane detection.

Key Features

• Dual-protocol interface (SAS and SATA): supports both SAS and SATA drive populations simultaneously, so you can mix enterprise SAS HDDs with SATA SSDs in the front expanded bay without a separate cable run per protocol — one assembly handles both.
• SR650 V3 platform specificity: engineered and validated for the ThinkSystem SR650 V3 front expanded backplane configuration. If you are working on a standard (non-expanded) SR650 V3 bay or a different generation, verify your chassis bay layout before ordering — this cable targets the EXP BP variant.
• Factory-new, genuine construction: manufactured in Mexico under Lenovo's production standards. Sourced through US authorized distribution channels — no grey-market, no parallel imports.
• 10 lb cable harness weight: the assembly mass reflects a multi-connector harness design built for high-density drive bay routing. Plan your cable management accordingly — this is not a slim patch cable and requires adequate clearance inside the 2U SR650 V3 chassis.

Integration & Compatibility

The 4X97A87505 is designed specifically for the Lenovo ThinkSystem SR650 V3 with a front expanded backplane (EXP BP) configuration. It is not a universal SAS/SATA cable. Before ordering, confirm your SR650 V3 chassis is ordered or configured with the front expanded bay option — standard bay configurations use a different cable assembly. Check the Lenovo ThinkSystem server accessories catalog for the correct part number if you are unsure of your chassis variant. For enterprise storage planning involving multiple SR650 V3 nodes, sourcing this cable alongside the backplane and drive kit at the same time avoids configuration delays.

Frequently Asked Questions

Q: What server is the Lenovo 4X97A87505 compatible with?

A: The 4X97A87505 is designed for the Lenovo ThinkSystem SR650 V3 server with a front expanded backplane (EXP BP) configuration. It is not a universal SAS/SATA cable and should not be used in other server generations or non-expanded bay variants without Lenovo confirmation.

Q: Does the 4X97A87505 support both SAS and SATA drives?

A: Yes. The cable supports both SAS and SATA interfaces, allowing mixed drive populations in the front expanded bay of the SR650 V3.

Q: Why does this cable weigh 10 lb?

A: The 10 lb weight reflects a multi-connector harness assembly — not a simple patch cable. It routes multiple SAS/SATA signal lanes across the front expanded backplane section of the SR650 V3 chassis simultaneously.

Q: Is the 4X97A87505 a genuine Lenovo part?

A: Yes. It is factory-new and sourced through channel-direct distribution — no grey-market, no parallel imports. It is manufactured in Mexico under Lenovo's production standards.

Q: Can I use a third-party SAS/SATA cable instead of the 4X97A87505?

A: It is not recommended. The SR650 V3 backplane uses firmware-level backplane detection that is validated against Lenovo OEM cable specifications. Third-party substitutes may introduce compatibility or detection failures not covered under Lenovo's server warranty.

Ted Perry

The Lenovo 4X97A87505 is one of those parts that gets overlooked until the server won't recognize its backplane — and then it becomes the most important component in the rack. I've seen SR650 V3 deployments stall because an integrator assumed any SAS/SATA cable would work in the expanded bay slot. It won't. The EXP BP configuration has specific connector routing and backplane detection logic that the 4X97A87505 is built to satisfy.

Technical Highlights:

• SAS + SATA dual-protocol support: a single cable assembly that handles both protocols means you're not constrained to an all-SAS or all-SATA drive population — useful when mixing workloads across the front bay.
• 10 lb harness assembly: the weight signals this is a multi-drop, multi-lane harness — not a point-to-point patch. It occupies meaningful space inside a 2U chassis; route it before installing drives, not after.
• Mexico-origin manufacturing: Lenovo's Mexico production line (Country of Origin: MX) is the OEM source for this assembly — relevant if your procurement requires documented country-of-origin for compliance purposes.

Deployment Considerations:

• Confirm your SR650 V3 is the front expanded backplane variant before ordering — the standard front bay uses a different cable and the two are not interchangeable.
• At 10 lb, plan cable routing and management before the drive cage is populated; routing a heavy harness through a loaded 2U chassis significantly increases installation time and risk of connector damage.

The 4X97A87505 is the right part for SR650 V3 builds targeting high front-bay drive density — specifically data center nodes where the expanded backplane configuration is part of the original chassis specification.
