Lenovo 30JQ002VUS Thinkstation P2 TWR G2 U5235 16G X1 W11P

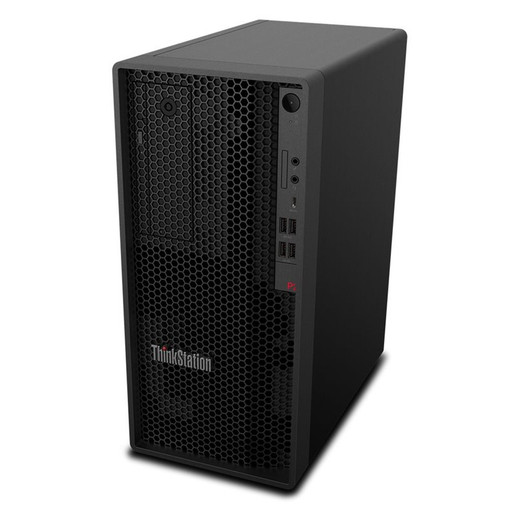

Lenovo 30JQ002VUS ThinkStation P2 Tower Gen 2 Workstation

Overview

The Lenovo ThinkStation P2 Tower Gen 2 — model 30JQ002VUS — is a compact tower workstation built around Intel's Core Ultra 5 235 processor, paired with DDR5-5600 memory and a PCIe 4.0 SSD. It ships with Windows 11 Pro and targets physical security operators, surveillance system managers, and enterprise IT teams who need a reliable, expandable desktop platform for running professional workstations and VMS software without the overhead of a rack server. At 9 lbs, it sits comfortably at a desk or in a low-profile deployment bay.

Key Features

• Intel Core Ultra 5 235 — 14 cores, 14 threads: The Core Ultra 5 235 is Intel's Arrow Lake-S silicon, built on a hybrid core architecture. Fourteen cores with fourteen threads means this machine handles concurrent VMS decoding, analytics processing, and background OS tasks without one starving another. For operators running 32+ camera streams through software like Milestone or Genetec, that multi-thread headroom matters.
• DDR5-5600 MHz — 16 GB installed, up to 128 GB: DDR5 at 5600 MHz delivers roughly double the theoretical bandwidth of DDR4-3200 — relevant when the processor is feeding large video frame buffers or analytics inference workloads. The 30JQ002VUS ships with one 16 GB module across four available DIMM slots, leaving three slots open. That means you can scale to 128 GB total without replacing the installed module — a meaningful upgrade path if AI-based analytics or additional camera channels are added later.
• 512 GB PCIe 4.0 NVMe SSD: PCIe Gen 4 sequential read speeds typically exceed 5,000 MB/s — roughly four times faster than a SATA SSD. For surveillance workstations, this translates to fast VMS database queries, rapid video export, and near-instant boot times. The 512 GB capacity is a starting point; the storage configuration can be expanded via additional drives depending on available bays and slots.
• 4x DIMM slots — expandable to 128 GB: Four DIMM slots in a tower this size is a genuine enterprise feature. Security integrators who start with 16 GB and later deploy heavier analytics engines (license plate recognition, facial recognition, crowd density) can add RAM without a hardware refresh — protecting the initial capital investment.
• Windows 11 Pro pre-installed: Windows 11 Pro includes BitLocker encryption, Hyper-V virtualization, and domain join — all relevant for enterprise security deployments where workstations handle sensitive footage and must meet IT security policy. No additional OS licensing required out of the box.
• Tower form factor — 9 lbs: The compact tower design keeps this workstation relocatable and accessible. At 9 lbs, it can be repositioned between control rooms or security offices without a dolly. Internal accessibility for RAM and storage upgrades is straightforward compared to small-form-factor or all-in-one alternatives.
• No optical drive — keeps the footprint clean: Omitting an optical drive is a deliberate tradeoff — it removes a mechanical failure point and keeps the chassis slim. Software deployment in enterprise environments is almost universally network or USB-based at this point, so there is no functional loss for most security integrators.

Integration and Compatibility

The 30JQ002VUS is positioned for VMS workstation deployments alongside IP camera infrastructure. DDR5 memory and PCIe 4.0 storage put it ahead of previous-generation ThinkStation P-series configurations for I/O-bound workloads. Windows 11 Pro compatibility means it works with current releases of major VMS platforms. The four-slot DIMM architecture means RAM upgrades are additive, not replacement-based, which reduces downtime during capacity expansions. For integrators deploying a IP camera ecosystem that relies on edge analytics offloading to a central workstation, the Core Ultra 5 235's thread count provides meaningful processing margin.

This configuration ships from Mexico (country of origin: MX) and carries UNSPSC code 43211515, classifying it as a desktop workstation for procurement and asset management systems.

Frequently Asked Questions

Q: How much RAM does the 30JQ002VUS ship with, and what is the maximum?

A: The 30JQ002VUS ships with 16 GB of DDR5-5600 RAM installed in a single DIMM. It has four DIMM slots total, and the maximum supported memory is 128 GB — leaving three slots open for expansion without removing the installed module.

Q: What type of storage does the 30JQ002VUS use?

A: It comes with a single 512 GB SSD connected via PCIe Express 4.0 interface. No optical drive is included.

Q: What operating system does the 30JQ002VUS ship with?

A: Windows 11 Pro is pre-installed. This includes BitLocker, Hyper-V, and domain join support — relevant for enterprise and security deployments.

Q: How many processor cores does the Intel Core Ultra 5 235 have?

A: The Core Ultra 5 235 has 14 cores and 14 threads, built on Intel's Arrow Lake-S hybrid architecture.

Q: What is the weight of the ThinkStation P2 Tower Gen 2?

A: The unit weighs 9.00 lbs, making it a compact and relocatable tower workstation.

Q: Can the memory in the 30JQ002VUS be upgraded later?

A: Yes. Three of the four DIMM slots are unoccupied at purchase. You can add DDR5-5600 modules up to a total of 128 GB without removing the factory-installed 16 GB module.

Jerry Tildsen

The 30JQ002VUS lands in an interesting position for security operations centers: the Intel Core Ultra 5 235's 14-core count is genuinely useful for concurrent VMS decoding, but what stands out to me on this configuration is the DDR5-5600 memory architecture paired with PCIe 4.0 storage — that I/O stack is a meaningful step up from the DDR4 + SATA configurations still common in previous-gen workstations deployed across enterprise security rooms.

Technical Highlights:

• 14-core Intel Core Ultra 5 235: Fourteen threads running simultaneously means a VMS client, a background analytics process, and OS overhead can all run without CPU queuing delays — relevant in control rooms where operators cannot afford a sluggish interface during an incident.
• DDR5-5600 with 128 GB ceiling: Three open DIMM slots mean you can grow from 16 GB to 64 or 128 GB as workload demands increase — without replacing the factory module. For integrators specifying a workstation today that may run heavier AI analytics in 12–18 months, this headroom matters.
• 512 GB PCIe 4.0 NVMe SSD: PCIe Gen 4 bandwidth eliminates storage as the bottleneck for VMS database queries and video export tasks. At 9 lbs and tower form factor, swapping or adding a second drive is straightforward compared to small-form-factor builds.

Deployment Considerations:

• The factory RAM configuration — 1 x 16 GB — runs in single-channel mode. If you are deploying this in a memory-bandwidth-sensitive workload (high-resolution analytics, large frame buffers), budget for a matched second module to unlock dual-channel operation early rather than retrofitting later.
• GPU and expansion slot specifications are not confirmed in current evidence for this SKU — verify with the manufacturer's spec sheet before committing to GPU-accelerated analytics workflows that depend on specific PCIe slot availability.

This configuration is a strong fit for a mid-size physical security operations center running 32–64 camera streams through a software VMS, where the IT team wants room to grow RAM without a hardware refresh cycle inside the next two years.
