Lenovo 30HT006UUS ThinkStation P3 Tower Gen 2 Intel Core Ultra 9 285 vPro Ecores Up to 4.60GHZ 36MB

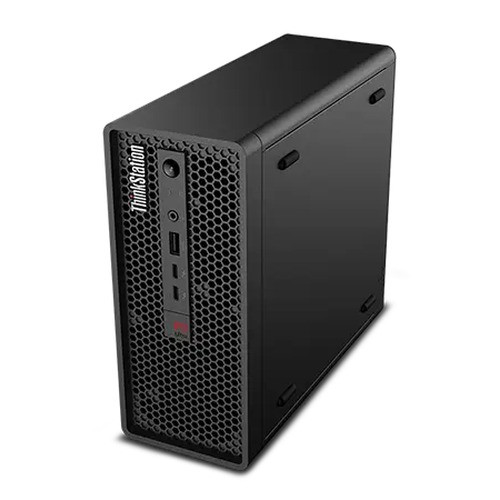

Lenovo 30HT006UUS ThinkStation P3 Tower Gen 2 Workstation

Overview

The Lenovo ThinkStation P3 Tower Gen 2 (30HT006UUS) is a commercial-grade tower workstation built around the Intel Core Ultra 9 285 vPro processor — a 24-core chip with E-cores reaching 4.60 GHz — paired with 128 GB of DDR5-5600 RAM and an NVIDIA RTX 4000 Ada Generation GPU carrying 20 GB of dedicated VRAM. If you're running a multi-stream video management system, a deep-learning analytics server, a forensic review station, or a demanding 3D design environment, this configuration is sized to handle it without compromise. Manufactured in Mexico and shipping at 9.0 lb, it's dense but still tower-portable for lab or rack-adjacent deployments.

Key Features

• Intel Core Ultra 9 285 vPro, 24 Cores / 24 Threads: The 285 runs E-cores to 4.60 GHz across all 24 threads simultaneously — no hyperthreading overhead. For video analytics workloads, that translates to more parallel decode and inference pipelines without context-switching penalties. vPro enterprise management means remote BIOS-level control and hardware-based security attestation, which matters for IT-managed deployment.
• 128 GB DDR5-5600 MHz in 4 x 32 GB DIMM Configuration: DDR5-5600 delivers roughly double the bandwidth of DDR4-3200 at comparable clock speeds. At 128 GB installed across four slots, you have headroom for large VMS databases, multiple simultaneous 4K decode streams, and memory-hungry ML inference models — all in-flight at once. The board supports up to 256 GB, so a future 4 x 64 GB upgrade is a straight swap.
• NVIDIA RTX 4000 Ada Generation, 20 GB VRAM: The RTX 4000 Ada is a workstation-class GPU, not a gaming card — it carries ECC memory support and ISV certifications relevant to professional VMS and CAD platforms. 20 GB of VRAM means you can load large neural network models (object detection, LPR, facial recognition) directly into GPU memory without constant swapping, keeping inference latency low on multi-camera feeds.
• 2 TB M.2 2280 PCIe Gen4 TLC Opal SSD: PCIe Gen4 sequential reads typically exceed 7,000 MB/s — fast enough that video ingest, database writes, and OS operations won't queue behind each other. The Opal self-encrypting drive spec means hardware-level AES encryption for stored footage or sensitive data, without CPU overhead. For a forensic workstation or a VMS server handling evidentiary recordings, that's the right storage baseline.
• PCIe, USB, and Ethernet Interfaces: The tower's PCIe expansion gives you room to add capture cards, additional NIC ports, or GPU compute cards as the deployment grows. USB connectivity covers peripheral integration — encoders, credential readers, external storage — and the onboard Ethernet handles network backbone without an add-in card for standard deployments.
• 4 DIMM Slots, Expandable to 256 GB: With two slots still open (4 x 32 GB installed, 4 slots total), there's a clear upgrade path if the workload grows. You don't need to buy a new machine to double the RAM — a meaningful long-term cost consideration for phased deployments.
• Slim DVD RAMBO Optical Drive: Included optical drive supports DVD±RW — useful for software deployment in air-gapped environments, driver media, or archiving footage to physical media where chain-of-custody documentation requires it.
• Bluetooth 5.4: BT 5.4 supports modern wireless peripherals (keyboard, mouse, headset) without a USB dongle, keeping front-panel ports free for field devices or USB drives during maintenance.
• Windows 11 Pro 64-bit Pre-installed: Ships with a licensed W11P64 OS, which means the machine is usable out of the box without additional OS procurement. For enterprise deployments that require domain join and Group Policy management from day one, this is the correct baseline.

Integration and Compatibility

The 30HT006UUS connects to existing network infrastructure over Ethernet with PCIe slots available for additional NICs or fiber adapters. USB ports support peripheral integration for access control enrollment stations, biometric readers, and external capture devices. The RTX 4000 Ada is broadly supported by major VMS platforms and analytics engines that publish NVIDIA GPU acceleration — check your specific VMS vendor's GPU compatibility matrix before assuming specific model certification. The PCIe Gen4 SSD interface is backward-compatible with PCIe Gen3 motherboards on expansion, though peak throughput requires a Gen4 host slot. RAM upgrades must use DDR5 modules at 5600 MHz or compatible speed — DDR4 is not interchangeable in this platform.

Frequently Asked Questions

Q: What is the maximum RAM this workstation supports?

A: The ThinkStation P3 Tower Gen 2 supports up to 256 GB of DDR5-5600 RAM across four DIMM slots. The 30HT006UUS ships with 128 GB (4 x 32 GB) installed, leaving the configuration at half capacity — a straightforward upgrade path if workloads grow.

Q: Is the SSD in the 30HT006UUS self-encrypting?

A: Yes. The included 2 TB M.2 2280 SSD carries the Opal specification, meaning it supports hardware-level AES self-encryption. This allows data-at-rest protection without CPU performance overhead — relevant for deployments handling evidentiary recordings or sensitive data.

Q: Can this workstation run GPU-accelerated video analytics?

A: The NVIDIA RTX 4000 Ada Generation GPU with 20 GB of VRAM is well-suited for GPU-accelerated inference workloads including object detection, license plate recognition, and facial analytics. Verify your specific VMS or analytics platform's NVIDIA GPU support list for model-level certification before deployment.

Q: What operating system ships with the 30HT006UUS?

A: It ships pre-installed with Windows 11 Pro 64-bit (US/UK English). This supports domain join, Group Policy, BitLocker, and remote management features standard in enterprise IT environments.

Q: Does this workstation support Intel vPro remote management?

A: Yes. The Intel Core Ultra 9 285 processor in this configuration is a vPro variant, which includes Intel AMT (Active Management Technology) for out-of-band remote access, hardware-level monitoring, and BIOS-level management — useful for IT teams managing workstations in secure or remote locations.

Q: How much does the 30HT006UUS weigh, and what is its form factor?

A: The unit weighs 9.0 lb and ships as a desktop tower. It is not a rack-mount unit — if you require rack installation, a separate rack-mount tray or shelf would be needed.

Ted Perry

The 30HT006UUS is the configuration I'd specify for a mid-to-large VMS server or a high-throughput forensic review station — the combination of 128 GB DDR5-5600 and an RTX 4000 Ada with 20 GB VRAM means you're not hitting memory walls on either the CPU or GPU side when running simultaneous multi-camera decode and analytics inference.

Technical Highlights:

• Core Ultra 9 285 at 4.60 GHz (E-cores, 24T): Unlike consumer chips that rely on P-cores for peak single-thread burst, the 285's E-core architecture sustains high throughput across all 24 threads — better behavior under the steady parallel load of VMS recording and indexing than a lower-core-count, higher-clock alternative.
• PCIe Gen4 SSD at 2 TB with Opal encryption: Sequential read speeds above 7,000 MB/s eliminate storage as a bottleneck for high-bitrate multi-stream ingest. The Opal hardware encryption keeps evidentiary data protected without touching CPU cycles — important if this machine sits in a shared server room or evidence vault.
• 256 GB RAM ceiling with 2 open DIMM slots: The installed 128 GB leaves two slots free for a direct upgrade to 256 GB without pulling existing modules. For deployments that start with 20–30 cameras and plan to scale, the upgrade path is clear and doesn't require a platform change.

Deployment Considerations:

• This is a tower unit at 9.0 lb — not rack-native. If the target environment is a server room or closet with rack infrastructure, budget for a tower-to-rack shelf or tray. Don't assume it fits a standard 1U or 2U slot without additional hardware.
• The RTX 4000 Ada is a workstation GPU with ISV certifications, but GPU acceleration for VMS analytics is platform-specific. Confirm your VMS vendor's supported GPU list before relying on CUDA or OpenCL offload in production — some platforms whitelist specific driver versions.

For a multi-investigator forensic review station running simultaneous 4K playback streams with AI-assisted search, or as the primary compute node for a 32-to-64-channel VMS deployment with on-box GPU analytics, the 30HT006UUS is sized correctly and expandable without a forklift upgrade.
