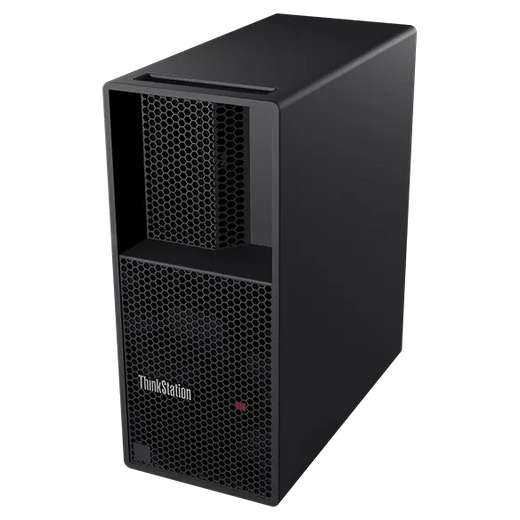

Lenovo 30HT004KUS ThinkStation P3 Tower Workstation

Overview

The Lenovo ThinkStation P3 Tower (30HT004KUS) is a tower-form workstation built around the Intel Core Ultra 9 285 vPro processor — a 24-core (8P+16E) chip that turbos to 5.6GHz and carries 36MB of Intel Smart Cache. This is the configuration to spec when a deployment demands a local AI-ready compute platform: VMS server duty, edge analytics processing, or a security operations workstation driving multiple displays. At 28.15 lb and 19.50 × 12.80 × 22.50 in, it sits comfortably in a rack-adjacent equipment room or under a desk. The Intel W880 chipset, discrete TPM 2.0 (FIPS 140-2), and Intel vPro Enterprise with AMT 16 make remote out-of-band management viable without additional hardware — relevant when the box is deployed in a server closet rather than on a desktop.

Compatibility

The 30HT004KUS connects to the broader ecosystem via standard interfaces: PCIe expansion slots accommodate discrete GPUs or additional capture/I/O cards, USB handles peripherals, and the onboard Intel I219-LM GbE port handles primary LAN. Intel Wi-Fi 7 (BE200, 802.11be) with Bluetooth 5.4 provides wireless connectivity where a wired drop isn't practical. The platform supports up to 256GB DDR5 across four UDIMM/CUDIMM slots — relevant if the workload grows — starting from the 32GB baseline here. The M.2 2280 PCIe Gen5 slot hosting the 1TB NVMe drive is the fastest consumer-grade storage interface currently available, cutting sequential read bottlenecks when ingesting high-bitrate multi-stream video. A single DP output is configured on the rear Flex IO slot; additional display outputs require a discrete GPU installed in one of the PCIe lanes.

Installation Notes

The 750W Platinum-rated fixed PSU provides clean headroom for GPU add-ins without a PSU swap. MIL-STD-810H testing validates the chassis survives transport and vibration — useful if this unit ships to a remote or temporary deployment site. No cable lock is included. A Kensington Security Slot and 3×7mm padlock loop are built in for physical security in shared spaces. Ships with USB keyboard, USB mouse, and Windows 11 Pro (US/UK English).
