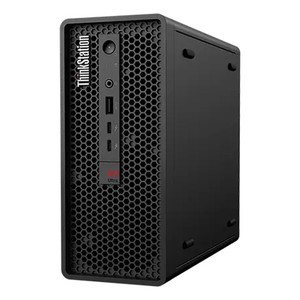

Lenovo 30HT004PUS ThinkStation P3 Tower Gen 2 Workstation
Overview
The Lenovo ThinkStation P3 Tower Gen 2 (30HT004PUS) is a professional workstation built around Intel's Core Ultra 9 285 vPro processor and paired with an NVIDIA RTX 5000 Ada Generation 32GB GPU — a configuration aimed squarely at demanding compute workloads including video management software deployments, security operations centers, real-time multi-stream video analytics, and engineering simulation. At 9 lbs in a tower form factor, this is a desk-side machine designed to stay put and work hard, not a compact appliance.
The 30HT004PUS ships with Windows 11 Pro 64-bit, making it enterprise-ready out of the box for domain join, BitLocker encryption, and Group Policy management without additional licensing overhead.
Key Features
- Intel Core Ultra 9 285 vPro, 24 Cores: The 285 runs efficiency cores to 4.60GHz and carries 36MB of cache — the 24-core configuration handles parallelized workloads like simultaneous multi-stream NVR decoding, AI inferencing pipelines, and video analytics without the thread-starvation that plagues lower core-count platforms. vPro adds hardware-level remote management (AMT), useful when this machine is deployed in a remote SOC or server room.
- 64GB DDR5-5600MHz (2 x 32GB, 4 DIMM Slots): DDR5 at 5600MHz delivers roughly double the bandwidth of DDR4-3200 — meaningful when the CPU and GPU are pulling large video frame buffers simultaneously. The 4-slot configuration with 2 slots occupied leaves headroom to expand to 128GB or 256GB (max) without a full memory swap, protecting your hardware investment as workloads grow.
- 1TB PCIe Gen5 M.2 2280 TLC Opal SSD: PCIe Gen5 sequential read/write throughput is roughly 2× Gen4 — faster cache writes for video recording applications, shorter load times for large analytics model files, and snappier OS responsiveness under concurrent workloads. Opal self-encrypting drive (SED) support means compliant full-disk encryption without CPU overhead, relevant for any deployment handling regulated video evidence.
- NVIDIA RTX 5000 Ada Generation, 32GB VRAM: 32GB of GPU memory is the key differentiator here. Running multi-stream AI video analytics, large-resolution panoramic decoding, or simultaneous deep learning inference workloads is constrained first by VRAM — 32GB keeps even memory-hungry models and multi-instance workloads from swapping out to system RAM. Ada architecture includes dedicated tensor cores for accelerated inferencing compared to previous Ampere-generation workstation GPUs.
- Intel BE200 vPro Wi-Fi 7: Wi-Fi 7 (802.11be) supports multi-link operation and 6GHz band access, delivering more consistent high-throughput wireless where a wired drop isn't available. In dense enterprise environments where 2.4/5GHz congestion is real, 6GHz headroom matters. The BE200 is also vPro-certified, meaning Intel AMT management extends over wireless — a useful operational detail for remote IT support scenarios.
- Slim DVD±RW Optical Drive: Built-in DVD±RW handles legacy disc-based software deployment, firmware distribution, and video evidence export to optical media — still a compliance requirement in certain law enforcement and legal workflows. Having it integrated avoids the USB dongle sprawl of external drives in a locked-down workstation environment.
- Windows 11 Pro 64-bit, Pre-installed: Ships ready for enterprise provisioning — domain join, Hyper-V, BitLocker, and Remote Desktop Server are all present without upgrade. Eliminates OS provisioning steps in deploy-from-stock workflows.
- Tower Form Factor, 9 lbs: Full-size tower means standard ATX-class expansion — PCIe slots, additional storage bays, and full-length GPU support without the thermal or physical constraints of a small-form-factor chassis. At 9 lbs it's desk-side deployable without a dedicated server rack, but sized for under-desk or secure-room placement.
Integration & Compatibility
The Lenovo ThinkStation P3 platform integrates with standard enterprise IT infrastructure: Active Directory, SCCM/Intune deployment, and vPro-based out-of-band management via Intel ME. The PCIe expansion bus and USB interfaces accommodate a broad range of IP camera capture cards, hardware decoders, and peripheral security devices. DDR5-SDRAM with four DIMM slots supports future memory expansion without platform replacement — the 256GB ceiling is well above typical VMS workstation requirements for the next several hardware generations. The Opal-compliant SSD pairs with Windows BitLocker for hardware-accelerated encryption without software overhead, supporting compliance frameworks that mandate encrypted storage on video evidence workstations. For network integration, the Intel BE200 provides Wi-Fi 7 wireless plus the onboard Ethernet interface covers wired LAN connectivity.
Frequently Asked Questions
Q: How much RAM does the 30HT004PUS ship with, and can it be expanded?
A: It ships with 64GB DDR5-5600MHz installed as 2 x 32GB across two of the four DIMM slots. The platform supports up to 256GB maximum, so you can add two more 32GB or larger DIMMs without replacing existing modules.
Q: What type of SSD does the 30HT004PUS use, and does it support hardware encryption?
A: The installed drive is a 1TB M.2 2280 PCIe Gen5 TLC SSD with Opal self-encrypting drive (SED) support. Opal-compatible drives work with BitLocker (hardware encryption mode) to deliver full-disk encryption without CPU performance penalties.
Q: Does the 30HT004PUS include wireless networking?
A: Yes — the Intel BE200 vPro module provides Wi-Fi 7 (802.11be) with 6GHz band support and multi-link operation, plus Intel vPro AMT wireless management capability.
Q: Is the 30HT004PUS suitable as a video analytics or VMS server?
A: The Core Ultra 9 285 (24 cores, 4.60GHz E-core peak) combined with the RTX 5000 Ada 32GB GPU makes it a capable on-premises VMS decode and analytics workstation. The 32GB VRAM accommodates multi-stream deep learning inferencing. Validate your specific VMS vendor's hardware certification list before deploying as a primary production server.
Q: What operating system does the 30HT004PUS ship with?
A: Windows 11 Pro 64-bit, pre-installed and ready for enterprise provisioning including domain join, BitLocker, Hyper-V, and Group Policy.
Q: Does the 30HT004PUS have an optical drive?
A: Yes — a slim DVD±RW (RAMBO) drive is integrated in the tower chassis, supporting read and write for both DVD and CD media formats.
When a customer asks me to spec a workstation for a high-channel VMS deployment with real-time AI analytics, the 30HT004PUS lands near the top of the shortlist — specifically because of the RTX 5000 Ada's 32GB VRAM. That single spec determines how many concurrent deep learning inference streams you can run before the GPU starts swapping, and 32GB buys you meaningful headroom over the 16GB and 24GB cards that populate most competing configurations at this price tier.
Technical Highlights:
- Core Ultra 9 285, 24 Cores: 24 cores running efficiency cores to 4.60GHz with 36MB cache handles the kind of parallelized thread load you see in multi-stream decode plus simultaneous analytics — without the CPU becoming a bottleneck before the GPU does.
- DDR5-5600MHz, Expandable to 256GB: Two slots occupied out of four means you have a clean upgrade path — add 2 x 64GB DIMMs later without discarding existing modules. The 5600MHz clock rate supports the memory bandwidth that a 24-core CPU and a 32GB GPU can actually consume under load.
- PCIe Gen5 SSD with Opal Encryption: Gen5 throughput keeps cache writes and model loads from becoming I/O-bound. Opal SED means BitLocker hardware encryption mode is available — critical for any deployment managing regulated video evidence where software-only encryption carries a CPU tax you'd rather avoid.
Deployment Considerations:
- The tower chassis gives you full PCIe slot access for capture cards or additional GPU deployment — verify available slot count and power delivery specs against your specific expansion cards before ordering.
- vPro AMT enables out-of-band remote management, but AMT must be provisioned during initial deployment; it does not activate automatically. Factor this into your imaging and provisioning workflow if remote headless management is a requirement.
This machine is best positioned as a dedicated on-premises VMS analytics workstation in a security operations center or a multi-camera edge analytics node in a warehouse or campus environment where GPU-accelerated inferencing is running continuously across 20+ streams.
