Lenovo 30HT006XUS ThinkStation P3 Tower Gen 2 Intel Core Ultra 7 265 vPro Ecores Up to 4.60GHZ 30MB

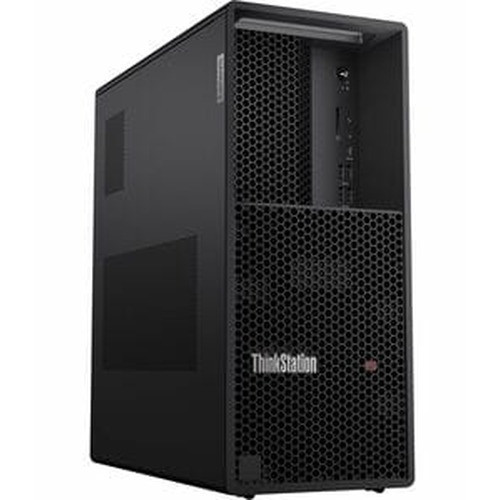

Lenovo 30HT006XUS ThinkStation P3 Tower Gen 2 Workstation

Overview

The Lenovo 30HT006XUS is a tower-form-factor professional workstation built around the Intel Core Ultra 7 265 vPro processor — a 20-core, 20-thread chip whose efficiency cores reach 4.60 GHz — paired with 32GB of DDR5-5600 memory and an NVIDIA RTX A1000 8GB GPU. That combination positions it as a capable decode and analytics host for surveillance workstations, VMS server builds, or engineering desktops where ISV-certified graphics and workstation-class memory bandwidth matter more than raw gaming throughput. The 1TB PCIe Gen4 TLC Opal SSD handles OS and application load with the read headroom a multi-stream VMS demands on its primary drive.

Key Features

• Intel Core Ultra 7 265 vPro, 20 Cores / 20 Threads: The 30MB cache and 4.60 GHz Ecores peak mean the CPU can sustain parallel decode threads without the thermal throttling that desktop-class chips hit under sustained load — relevant when running 32+ stream decode alongside analytics processes.
• 32GB DDR5-5600 in a Single DIMM: DDR5-5600 delivers roughly 35–40% more bandwidth than DDR4-3200, which matters for GPU-accelerated workloads that shuttle large frame buffers between system and GPU memory. The single-slot configuration (1×32GB across four available DIMM slots) leaves three slots free — you can reach 256GB max by adding three more DIMMs without touching existing memory.
• 1TB PCIe Gen4 TLC Opal SSD (M.2 2280): Gen4 NVMe sequential reads typically land above 7 GB/s, which keeps VMS index and recording cache I/O from becoming a bottleneck on a busy recorder. The Opal self-encrypting drive specification means hardware-level full-disk encryption is available without a CPU penalty — useful in deployments with data-at-rest compliance requirements.
• NVIDIA RTX A1000 8GB: The RTX A1000 is a workstation-class GPU — ECC memory, ISV-certified driver stack, and 8GB of GDDR6 VRAM. For surveillance, it offloads H.265/H.264 decode from the CPU and handles GPU-accelerated analytics inference on platforms that support it. It also supports four simultaneous display outputs, which matters for operator workstation builds with multi-monitor walls.
• 256GB Expandable RAM Ceiling: Four DIMM slots with a 256GB maximum is a meaningful headroom spec for a tower. A VMS server or AI inference node that starts at 32GB today can scale memory 8× without a platform change.
• Slim DVD RAMBO Optical Drive: Included for environments that still provision software from physical media or require optical drive presence for compliance imaging workflows — not universally needed but saves an external purchase when it is.
• Intel BE200v Wi-Fi + Bluetooth 5.4: The BE200 is an Intel Wi-Fi 7 adapter. Wired Ethernet is present via the chassis, but Wi-Fi 7 support means the machine can operate on multi-link operation (MLO) wireless networks without an add-in card, and BT 5.4 covers modern peripheral pairing without a USB dongle.
• Tower Form Factor, 9 lb: At 9 lb, the P3 Tower is a standard under-desk or rack-adjacent workstation. PCIe, USB, and Ethernet interfaces are all present, giving integrators the expansion flexibility to add capture cards, additional NIC, or storage controllers without an external chassis.

Integration & Compatibility

The ThinkStation P3 Tower ships with Windows 11 Pro 64-bit, which is the baseline OS for most commercial VMS platforms including Milestone XProtect, Genetec Security Center, and Axis Camera Station. The vPro platform adds Intel AMT for out-of-band management — useful in unmanned server rooms where remote KVM and power control over the network reduces truck rolls. The RTX A1000 supports NVENC/NVDEC hardware acceleration, which most current-generation VMS platforms can target for GPU-accelerated decode, reducing CPU utilization significantly in high-channel-count deployments. PCIe expansion slots allow adding a dedicated NIC for network segmentation or a hardware RAID card if the single SSD configuration needs to be replaced with a redundant storage array. For integrators deploying this as a NVR or VMS server, pair it with a PoE switch and review your camera selection guide to match channel count to the GPU decode budget. For operator workstations, the four display outputs on the RTX A1000 support quad-monitor configurations directly from a single card — no secondary GPU needed for most wall configurations.

Frequently Asked Questions

Q: Can the memory in the 30HT006XUS be expanded beyond 32GB?

A: Yes. The ThinkStation P3 Tower ships with 1×32GB DDR5-5600 DIMM and has four DIMM slots total. Maximum supported memory is 256GB, so you have three open slots for expansion.

Q: Does the 30HT006XUS support hardware-accelerated video decode for VMS platforms?

A: The NVIDIA RTX A1000 GPU supports NVENC/NVDEC, which enables GPU-accelerated H.265 and H.264 decode on VMS platforms that support it (Milestone, Genetec, Axis Camera Station, among others). This offloads decode from the CPU and significantly increases sustainable channel counts.

Q: What storage interface does the SSD use, and can additional drives be added?

A: The included 1TB SSD is an M.2 2280 PCIe Gen4 NVMe drive. The tower form factor provides additional PCIe and storage bay capacity for supplemental HDDs or SSDs depending on the chassis configuration.

Q: Is the 30HT006XUS suitable as a primary VMS recording server?

A: For moderate-channel deployments (roughly 16–48 streams at 1080p–4K depending on codec and frame rate), the Core Ultra 7 265 with RTX A1000 GPU acceleration is a reasonable fit. For high-density recording above 64+ streams, evaluate NVMe write throughput and consider a RAID or SAN-backed storage expansion — the single 1TB SSD is a starting point, not a production recording array.

Q: Does this workstation support out-of-band remote management?

A: Yes. The Intel vPro platform includes Intel AMT (Active Management Technology), which allows remote KVM, power cycling, and BIOS-level management over the network independent of the OS state — useful for unmanned server room deployments.

Q: What operating system does the 30HT006XUS ship with?

A: It ships with Windows 11 Pro 64-bit (US/UK English). This is the standard OS for commercial VMS and workstation ISV software compatibility.

Karl Wilson

The 30HT006XUS hits a useful inflection point for mid-scale security deployments: the RTX A1000 8GB brings workstation-grade GPU acceleration and four display outputs into a tower that starts at 32GB DDR5-5600 and scales to 256GB — that memory ceiling alone separates it from consumer platforms that top out at 64GB and start throttling under sustained VMS workloads.

Technical Highlights:

• Core Ultra 7 265 — 20 cores, 30MB cache: The efficiency core architecture sustains parallel decode threads more consistently than a high-clock dual-core desktop part. 30MB of L3 cache reduces main memory round-trips on large frame-buffer workloads — measurable in sustained multi-stream decode scenarios.
• PCIe Gen4 NVMe SSD: Sequential read bandwidth above 7 GB/s means the OS drive won't be the bottleneck for VMS index operations or simultaneous multi-stream playback requests. The Opal encryption spec adds hardware FDE at zero CPU cost — worth enabling on any recorder that leaves a secure facility.
• DDR5-5600, 3 open DIMM slots: Starting at 32GB with three empty slots gives a clear upgrade path. A VMS or AI inference node that needs 128GB in year two doesn't require a new platform — just three DIMMs.

Deployment Considerations:

• The single 1TB SSD is appropriate for the OS and VMS application layer, but is not sufficient as a standalone recording store for anything beyond a small proof-of-concept. Plan for additional NVMe or SAS/SATA drives in the PCIe expansion bays, or connect to a NAS/SAN for recording storage before finalizing the architecture.
• The RTX A1000 is an entry workstation GPU — it handles NVDEC for moderate channel counts well, but it is not a high-density AI inference card. If you need GPU inference for 50+ concurrent video analytics streams, evaluate a higher-tier GPU option before committing to this configuration.

This machine is the right pick for a VMS server or operator workstation in a 16–48 camera facility: the vPro AMT remote management keeps it serviceable in an unmanned IDF closet, the RTX A1000 handles real-time decode and a quad-monitor operator desk simultaneously, and the DDR5 memory architecture leaves room to grow without a forklift upgrade.
