Lenovo 30HH007XUS Thinkstation P8 AP7985WX 32G X4 W11P

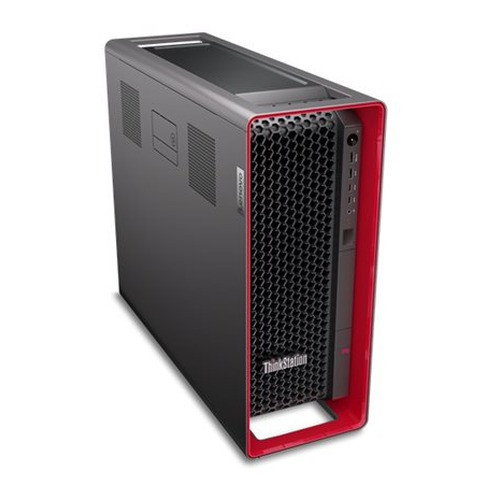

Lenovo 30HH007XUS ThinkStation P8 Workstation

Overview

The Lenovo ThinkStation P8 (30HH007XUS) is a high-core-count workstation built around the AMD Ryzen Threadripper PRO 7985WX — a 64-core, 128-thread processor that runs at 3.2 GHz base with a 5.1 GHz boost. If your workload demands simultaneous multi-stream 4K video decoding, real-time analytics processing, or running a full VMS server alongside forensic review stations, this machine delivers headroom that typical commercial desktops simply cannot match. It ships with Windows 11 Pro, ready to install your VMS, PSIM, or access control management software without additional licensing friction.

For integrators deploying high-channel VMS environments, AI-based video analytics engines, or multi-site command center consoles, the 30HH007XUS positions itself as a server-adjacent workstation: the kind of machine you put at the head of a 64-camera deployment where a standard quad-core box would saturate under load.

Key Features

• 64-Core / 128-Thread AMD Ryzen Threadripper PRO 7985WX: At 3.2 GHz base and 5.1 GHz single-core boost, this processor handles massively parallel workloads — simultaneous transcoding, real-time deep-learning analytics inference, and multi-stream decoding — without the context-switching bottlenecks that cripple lower-core-count workstations under sustained load. If you're running Genetec, Milestone, or Avigilon with AI add-ons enabled across 32+ channels, core count is the constraint you'll hit first.
• 128 GB DDR5-4800 RAM (4 x 32 GB) with Up to 1 TB Max: The factory configuration populates four of the eight DIMM slots with 32 GB DDR5 modules running at 4800 MHz. That leaves four slots open, giving you a clear upgrade path to 512 GB or the 1 TB maximum without replacing existing modules — relevant for deployments where workload requirements scale over time. DDR5 at 4800 MHz delivers substantially higher memory bandwidth than DDR4, which directly benefits analytics pipelines that keep large model weights resident in RAM.
• 4 TB NVMe SSD on PCIe 4.0: A single 4 TB PCIe 4.0 NVMe drive gives you fast sequential read/write for video file handling, large dataset access, and application responsiveness — without the latency penalty of spinning media. PCIe 4.0 doubles the bandwidth ceiling over PCIe 3.0, which matters when you're moving large surveillance video exports or running database-backed VMS platforms with active metadata indexing.
• Windows 11 Pro Pre-Installed: Ships ready for domain join, group policy management, and enterprise application deployment. No additional OS procurement or imaging overhead before commissioning into your managed environment.
• 9 lb Form Factor: At 9.00 lb, this is a tower-class workstation — not a rack unit. Plan for desk or floor placement at the deployment site. Confirm rack integration requirements separately if the deployment calls for it.
• 8 x DIMM Memory Architecture: With only four of eight slots populated at 128 GB, the memory subsystem is deliberately configured with future expansion in mind. Adding capacity requires only purchasing additional DDR5 ECC RDIMMs compatible with the Threadripper PRO 7000 platform — no system-level changes required.

Integration and Compatibility

The ThinkStation P8 platform is built on the AMD Threadripper PRO 7000 series socket (sTR5), which supports up to 128 PCIe 5.0 lanes from the CPU — providing substantial expansion bandwidth for adding NVR capture cards, GPU accelerators for AI inference, or additional NVMe storage in a later phase. The Windows 11 Pro OS base integrates natively with Active Directory, LDAP, and major VMS platforms that publish Windows-compatible server or client installers.

For deployments pairing this machine with IP camera systems or network video recorders, the workstation handles the management and analytics layer while dedicated recording appliances or NAS units handle long-term storage — a standard architecture for enterprise-scale physical security operations centers. Review the Lenovo workstation line for the full P-series range if a lower-core-count configuration fits your budget or workload profile better.

Before deployment in a security operations environment, verify GPU selection separately — the 30HH007XUS specification as configured does not include a discrete graphics card in the evidence available. GPU choice will directly impact display output count, resolution support at the operator console, and hardware-accelerated analytics throughput. Plan your GPU procurement alongside this unit.

Frequently Asked Questions

Q: What processor does the 30HH007XUS ship with?

A: The 30HH007XUS ships with the AMD Ryzen Threadripper PRO 7985WX — a 64-core, 128-thread processor with a 3.2 GHz base clock and 5.1 GHz boost clock.

Q: How much RAM does the 30HH007XUS come with, and can it be expanded?

A: It ships with 128 GB of DDR5-4800 SDRAM configured as 4 x 32 GB across four of eight available DIMM slots. The platform supports up to 1 TB of total memory, so you can add capacity by populating the remaining four slots without removing existing modules.

Q: What storage does the 30HH007XUS include?

A: A single 4 TB NVMe SSD on a PCIe 4.0 interface. There are no spinning hard drives or optical drives in this configuration.

Q: Does the 30HH007XUS come with an operating system?

A: Yes — Windows 11 Pro is pre-installed, ready for domain join and enterprise application deployment.

Q: Is a discrete GPU included with the 30HH007XUS?

A: The available specification data does not confirm a discrete GPU in this configuration. Verify GPU inclusion and model with your order confirmation before deployment, particularly if display output count or hardware-accelerated analytics are requirements.

Q: What is the weight of the 30HH007XUS?

A: The ThinkStation P8 30HH007XUS weighs 9.00 lb. It is a tower-form workstation intended for desk or floor placement, not rack mounting without additional hardware.

Ted Perry

The 30HH007XUS is the machine I'd specify for a high-density video analytics node — specifically because of its 128-thread count. Running a VMS server with AI plug-ins like license plate recognition, object classification, and behavioral analytics simultaneously on 32 or more camera streams creates a workload that pegs 8-core workstations almost immediately. With 64 physical cores at up to 5.1 GHz boost, this ThinkStation P8 has the CPU budget to handle those parallel inference threads without throttling the operator console experience.

Technical Highlights:

• AMD Threadripper PRO 7985WX (64C/128T, 5.1 GHz boost): In VMS analytics workloads, core count determines how many simultaneous AI inference pipelines you can run before CPU becomes the bottleneck. 128 threads gives you headroom most physical security workstations never approach.
• 128 GB DDR5-4800 with 1 TB max: Four open DIMM slots mean you can double, quadruple, or push to 1 TB without disrupting existing modules — future-proofing for analytics model growth or additional VMS channel licenses down the line.
• 4 TB PCIe 4.0 NVMe SSD: PCIe 4.0 doubles the sequential throughput ceiling over PCIe 3.0 — relevant when exporting large video evidence packages or running database-intensive VMS metadata queries at scale.

Deployment Considerations:

• The 30HH007XUS ships without a confirmed discrete GPU in the available evidence — validate this before deployment if you need multi-monitor operator console output or GPU-accelerated analytics (NVIDIA CUDA-based inference, for example). Order the appropriate GPU alongside this unit.
• At 9.00 lb this is a tower unit, not rack-native. If the deployment environment is a server room or structured rack cabinet, budget for a rack-mount conversion shelf or plan for floor/desk placement in a secured equipment room instead.

The right deployment for this machine is a centralized security operations center running a high-channel VMS with active AI analytics — think 64-camera enterprise campus, multi-building healthcare facility, or a transportation hub where license plate and person-of-interest alerting run 24/7. It is substantially over-specified for a simple recording server role, but correctly sized once analytics and real-time alerting enter the picture.
