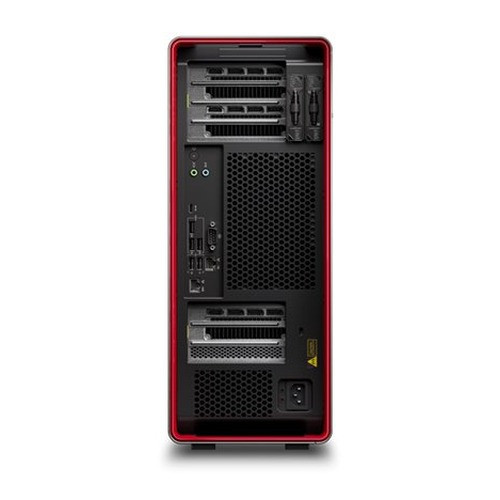

Lenovo 30HH004UUS Thinkstation P8 AP7985WX 32G X4 W11P

Lenovo 30HH004UUS ThinkStation P8 Professional Workstation

Overview

The Lenovo ThinkStation P8 (30HH004UUS) is a full-tower professional workstation built around the AMD Ryzen Threadripper PRO 7985WX — a 64-core, 128-thread processor designed for compute-intensive workloads that consumer-grade desktop hardware cannot handle. Whether you are running enterprise VMS software across dozens of high-resolution camera streams, processing AI-based video analytics at the edge, or managing large-scale surveillance infrastructure from a central operations center, the P8 delivers the thread count and memory headroom to keep pace without compromise.

The 30HH004UUS ships with 128 GB of DDR5-4800 RAM across four slots, leaving four DIMM slots open for future expansion — and the platform supports up to 1 TB of registered DDR5, which means this chassis has room to grow as workloads scale. Windows 11 Pro is pre-installed, so it is enterprise-ready from day one.

Key Features

• AMD Ryzen Threadripper PRO 7985WX — 64 Cores / 128 Threads: This is not a desktop CPU adapted for workstation duty — the 7985WX is purpose-built for sustained multi-threaded throughput. Running 128 parallel threads means a VMS platform like Milestone XProtect or Genetec Security Center can dedicate logical cores to decoding, analytics, archiving, and UI rendering simultaneously without contention. Workloads that would saturate a 16- or 24-core system run comfortably in parallel here.
• 5.1 GHz Max Boost / 3.2 GHz Base Clock: Single-threaded tasks — UI responsiveness, database queries, report generation — get the full 5.1 GHz boost headroom. Multi-threaded batch jobs settle at the 3.2 GHz sustained base. In practice this means the system feels fast interactively while also sustaining high throughput under load, which is the combination that makes workstations useful as operator consoles and backend compute nodes simultaneously.
• 256 MB L3 Cache: The 7985WX carries 256 MB of L3 cache — roughly 8–16× what you find on mainstream desktop processors. Large cache reduces main-memory latency on working sets that fit within it, which benefits VMS metadata lookups, analytics inference pipelines, and any workload where the same data is accessed repeatedly across many threads.
• 128 GB DDR5-4800 (4×32 GB, 8-Slot Platform): DDR5 at 4800 MHz doubles the per-channel bandwidth versus DDR4-3200, which matters when 64 cores are actively feeding off system memory in parallel. The four occupied slots leave four open, so you can expand to 256 GB, 512 GB, or the platform maximum of 1 TB without replacing existing modules — a meaningful cost consideration when planning for workload growth over a 3–5 year deployment cycle.
• 1 TB Maximum Memory Capacity: Very few workstation platforms support 1 TB of RAM. For deployments running in-memory databases, large-scale AI model inference, or consolidated VMS servers managing hundreds of camera channels with extended frame buffers, this ceiling matters. The P8 platform is built to reach it via the Socket sTR5 architecture.
• Socket sTR5 Platform: sTR5 is AMD's current-generation Threadripper PRO socket, introduced with the 7000 WX-Series. It supports PCIe 5.0 connectivity and a high-lane-count I/O fabric — relevant when pairing the P8 with multiple high-bandwidth GPU cards, NVMe RAID arrays, or high-port-count capture cards for specialized surveillance or media applications.
• Windows 11 Pro Pre-installed: Enterprise VMS platforms, access control software, and security management applications are qualified against Windows 11 Pro. Shipping with the OS pre-loaded means no license sourcing delays and a validated hardware-software configuration out of the box.
• 9.00 lb Chassis Weight: At 9 lbs, the P8 is a full-tower form factor intended for fixed rack-adjacent or under-desk installation in a control room or server closet. This is not a transportable workstation — plan for a permanent installation point with appropriate cable management and ventilation clearance.

Integration and Compatibility

The ThinkStation P8 platform is qualified by major enterprise software vendors. Its high core count and large memory capacity make it well-suited as the host for multi-server VMS deployments, where the recording server, management server, and failover services run as separate processes or virtual machines on a single physical host. The 30HH004UUS with Windows 11 Pro is a standard enterprise configuration that integrates with Active Directory, group policy management, and remote monitoring tools without additional configuration overhead.

For professional workstations and compute platforms in the Lenovo commercial line, the P8 sits at the high end of the range — positioned above mid-range workstations and below multi-socket server configurations. Pair it with a network video recorder or use it as a standalone VMS host depending on channel count and retention requirements. Integrators deploying large-scale video surveillance systems should also evaluate their network switch infrastructure to ensure the upstream bandwidth supports the camera density the P8 is configured to manage.

Frequently Asked Questions

Q: What processor does the ThinkStation P8 30HH004UUS use?

A: The 30HH004UUS is configured with the AMD Ryzen Threadripper PRO 7985WX — a 64-core, 128-thread processor from the 7000 WX-Series, running at a base clock of 3.2 GHz with a max boost of 5.1 GHz and 256 MB of L3 cache.

Q: How much RAM does the 30HH004UUS ship with, and can it be expanded?

A: It ships with 128 GB of DDR5-4800 installed as 4×32 GB modules across 8 available DIMM slots. The platform supports up to 1 TB maximum, so the four open slots provide substantial expansion headroom without replacing existing modules.

Q: What operating system comes pre-installed on the 30HH004UUS?

A: Windows 11 Pro is pre-installed, which is the standard enterprise OS configuration required by most VMS platforms, access control software, and enterprise management tools.

Q: Is the ThinkStation P8 suitable as a VMS server for large-scale surveillance deployments?

A: Yes. The 64-core Threadripper PRO 7985WX and up to 1 TB DDR5 RAM make the P8 well-suited for running enterprise VMS platforms — such as Milestone XProtect, Genetec, or Avigilon Control Center — either as a combined recording/management server or as a consolidated host for virtualized multi-server deployments.

Q: Where is the ThinkStation P8 30HH004UUS manufactured?

A: Per distributor records, the country of origin for the 30HH004UUS is Mexico.

Q: What is the processor socket on the ThinkStation P8?

A: The P8 uses AMD Socket sTR5, the current-generation Threadripper PRO platform introduced with the 7000 WX-Series. This socket supports PCIe 5.0 and a high-lane-count I/O fabric for multi-GPU and high-bandwidth peripheral configurations.

Marty Allison

The 30HH004UUS is the configuration I recommend when an integrator tells me they need a single physical machine to carry a full enterprise VMS stack — recording server, management server, analytics engine, and failover logic — without splitting workloads across two chassis. The 64-core Threadripper PRO 7985WX gives you enough thread headroom to run those services in hard isolation while still leaving capacity for operator console functions on the same box.

Technical Highlights:

• 64 Cores / 128 Threads at 5.1 GHz Boost: You can assign 16 cores to video decoding, 16 to analytics inference, 16 to database and archiving, and still have 16 left for OS and operator UI — with zero contention under steady-state load. That kind of headroom is what separates a workstation from a server in daily VMS operations.
• 256 MB L3 Cache on the 7985WX: Larger cache reduces round-trips to DDR5 main memory on hot working sets. For VMS workloads that repeatedly access the same motion-detection metadata or index structures across many threads simultaneously, that cache depth translates directly to lower latency and more consistent frame decode throughput.
• 128 GB DDR5-4800, Expandable to 1 TB: The four open DIMM slots mean you can double to 256 GB without touching the existing modules. DDR5-4800 at full 8-slot population can push over 300 GB/s aggregate bandwidth — material when 64 cores are actively feeding off memory in parallel AI inference or multi-stream decode pipelines.

Deployment Considerations:

• At 9 lbs this is a fixed-install platform — plan for a ventilated rack cabinet or dedicated workstation alcove in the control room. Threadripper PRO TDPs run high under sustained load; confirm your rack or room cooling is sized for the thermal output before deployment.
• The sTR5 socket platform requires ECC RDIMM or LRDIMM modules for full memory population — standard consumer DDR5 DIMMs will not populate all 8 slots correctly. Verify any memory expansion against Lenovo's qualified vendor list for the P8 before purchasing.

This is the right platform for a centralized operations center deployment where one physical machine needs to host a Milestone XProtect Corporate or Genetec Security Center multi-server environment — high camera counts, AI analytics running locally, and no tolerance for resource contention between services.
