Lenovo 30HH007TUS ThinkStation P8 AMD Threadripper PRO 7945WX 4.70GHZ 64MB W11P64 ENG 32.0GB 1X1TB

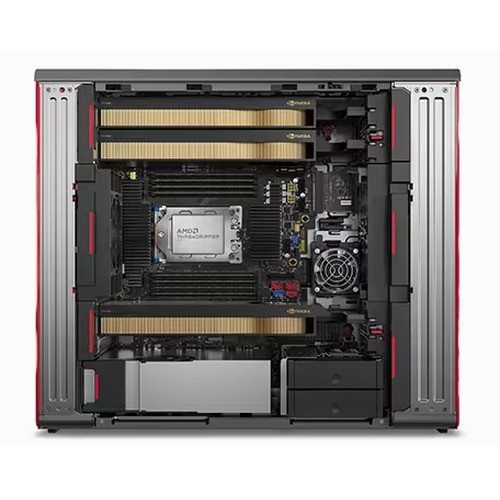

Lenovo 30HH007TUS ThinkStation P8 Tower Workstation

Overview

The Lenovo ThinkStation P8 30HH007TUS is a professional tower workstation built around AMD's Threadripper PRO 7945WX platform — a 12-core, 24-thread processor with a 4.7 GHz base and 5.3 GHz boost clock. At 60 lb and 27 x 12.50 x 24.60 inches, this is a full-chassis machine designed to sit on the floor of a workstation deployment, not on a desk. The platform targets compute-intensive workflows: multi-stream video processing, high-density VMS server roles, 3D rendering, simulation, and analytics workloads that exhaust consumer-grade hardware in minutes. For security operations centers running parallel decode on dozens of high-resolution camera feeds, or engineering environments processing large datasets, the P8's architecture gives you headroom that a standard desktop simply cannot match.

Key Features

• AMD Threadripper PRO 7945WX (12 cores / 24 threads): The 5.3 GHz boost clock means single-threaded tasks — codec decoding, UI responsiveness, scripted automation — finish fast, while 24 threads handle parallel workloads without thrashing. This is the right processor when you need both single-core speed and multi-threaded throughput on the same machine.
• 32 GB DDR5-4800 in 2x16 GB configuration: DDR5 at 4800 MHz delivers substantially higher bandwidth than DDR4, which matters when feeding a 12-core processor at sustained load. The current 2-slot population leaves 6 DIMM slots open across an 8-slot board — you have room to scale to the 1 TB maximum without replacing existing modules, a real advantage if workload demands grow after deployment.
• 1 TB PCIe Gen4 M.2 2280 TLC Opal SSD: PCIe 4.0 sequential bandwidth is roughly double PCIe 3.0. For video applications writing large files continuously — NVR overflow, video editing scratch, log ingestion — this reduces the storage bottleneck that conventional SATA SSDs create. The Opal self-encrypting capability means you can enforce hardware-level drive encryption without a software performance penalty.
• NVIDIA RTX A400 4 GB: The A400 is a professional-class GPU, not a gaming card — driver stability, ECC memory, and ISV certification matter in production workstation environments. 4 GB GDDR6 handles multi-monitor display driving, hardware-accelerated video transcoding, and light GPU compute. If your workflow involves deep learning inference or heavy parallel GPU rendering, plan for a GPU upgrade or a higher-tier configuration.
• Wi-Fi 6E (RZ616 2x2 AX) + Bluetooth 5.3: The RZ616 covers the 6 GHz band, which means access to less-congested spectrum in dense wireless environments. Bluetooth 5.3 supports modern peripherals. For wired-first enterprise deployments, the onboard Ethernet handles the primary network path — wireless and BT are there when you need them.
• 1400W power supply: A 1400W PSU gives the P8 headroom to support high-TDP GPU upgrades and additional storage without approaching the supply's ceiling. If you plan to add a second full-power GPU or multiple PCIe expansion cards, the power budget is already in place.
• Windows 11 Pro 64-bit: Ships with a full retail OS license, not a downgrade or OEM-limited build. Relevant for enterprise domain join, BitLocker, Hyper-V, and Remote Desktop host roles — standard requirements in managed IT environments.
• 3-Year Premier Next Business Day warranty: NBD on-site response is meaningful for a workstation in a production role. If the machine goes down, you're not waiting a week for depot service.

Integration and Compatibility

The 30HH007TUS connects via PCIe, USB, and Ethernet — the three interface paths that cover virtually every professional peripheral, capture card, and storage expansion scenario. The PCIe Gen4 platform means current-generation expansion cards (GPU, NIC, capture, NVMe RAID) run at full rated bandwidth. The 8-slot DIMM architecture and open expansion slots make this a workstation that integrates into an existing enterprise environment rather than constraining it. For VMS deployments, the Threadripper PRO platform's memory bandwidth and core count support parallel decode of high-resolution streams at rates that exhaust consumer-grade workstations. Pair with a managed network switch and purpose-built network video recorders for a full surveillance infrastructure stack. For workstation selection guidance, the workstation category covers the full Lenovo commercial lineup. If you're architecting a multi-server VMS environment, the surveillance server options may also be relevant depending on channel count and redundancy requirements.

Frequently Asked Questions

Q: What is the maximum RAM the Lenovo 30HH007TUS supports?

A: The ThinkStation P8 has 8 DIMM slots and ships with 2x16 GB DDR5-4800 (32 GB total). The maximum internal memory supported is 1 TB, leaving 6 slots available for future expansion without replacing existing modules.

Q: What SSD is installed and can it be replaced or supplemented?

A: The 30HH007TUS ships with a single 1 TB PCIe Gen4 M.2 2280 TLC Opal SSD. The Opal designation means the drive supports hardware-level self-encryption. Additional storage can be added via available M.2 slots or PCIe expansion depending on configuration.

Q: Does the 30HH007TUS include an optical drive?

A: No. The ThinkStation P8 in this configuration does not include an optical drive. External USB optical drives can be added if required.

Q: What GPU is included and is it upgradeable?

A: This configuration ships with an NVIDIA RTX A400 4 GB professional GPU. The 1400W power supply and PCIe expansion slots provide headroom for a GPU upgrade to a higher-tier professional card if workload demands — such as GPU compute, multi-stream AI analytics, or heavy rendering — exceed the A400's capacity.

Q: What wireless connectivity is included?

A: The P8 includes the Lenovo RZ616 2x2 Wi-Fi 6E adapter (802.11ax, including 6 GHz band support) and Bluetooth 5.3. Onboard Ethernet is also present for primary wired network connectivity.

Q: What warranty comes with the 30HH007TUS?

A: This configuration includes a 3-Year Premier Next Business Day on-site warranty from Lenovo.

Jerry Tildsen

When I evaluate the 30HH007TUS for a production deployment, the spec I look at first is the memory architecture: 8 DIMM slots with DDR5-4800 support and a 1 TB ceiling. That means you can start with the included 32 GB and scale incrementally as workload data shows you actually need more — without a motherboard swap. The Threadripper PRO 7945WX's 24 threads pair well with that memory bandwidth for parallel decode and analytics processing.

Technical Highlights:

• Threadripper PRO 7945WX — 5.3 GHz boost, 24 threads: The boost clock keeps latency-sensitive tasks snappy while the thread count handles parallel workloads. For a VMS server decoding 20+ high-res streams simultaneously, this processor doesn't throttle the way a 6-core desktop chip does under sustained load.
• PCIe Gen4 M.2 SSD with Opal encryption: Hardware encryption at the drive level means you get full-disk security without CPU overhead — relevant in environments where compliance requires encryption at rest but performance cannot be compromised.
• 1400W PSU with RTX A400: The A400 draws modest power for a professional GPU. The 1400W headroom is there for a future GPU upgrade — if your AI analytics workload outgrows the A400's 4 GB, the platform supports it without a power supply swap.

Deployment Considerations:

• At 60 lb and 27 inches long, this machine requires floor placement or a deep server rack shelf — measure your rack depth or workstation bay before ordering. Standard 4-post racks at 24-inch depth won't accommodate this chassis.
• The RTX A400 4 GB is the limiting factor for GPU-accelerated workloads. If you're running deep learning inference pipelines or multi-stream GPU transcoding at scale, plan for a GPU upgrade path from day one — the P8 platform supports it, but the base config does not ship with that headroom in the GPU itself.

The 30HH007TUS is well-positioned as a dedicated VMS workstation or analytics processing node in a physical security operations center — where you need sustained multi-threaded performance, room to grow memory over a 3–5 year deployment lifecycle, and on-site NBD warranty coverage that keeps downtime measured in hours rather than days.
