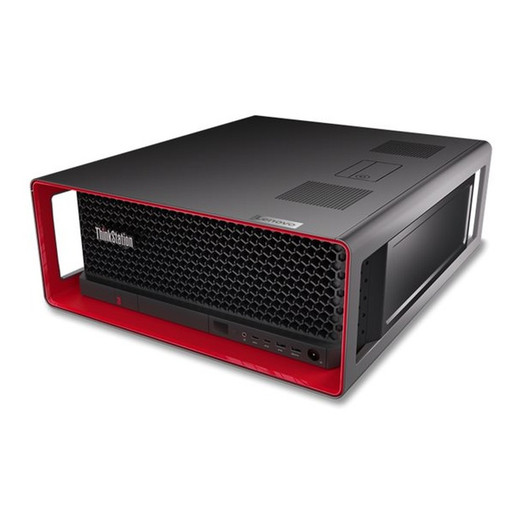

Lenovo ThinkStation P8 30HH007UUS Workstation — AMD Threadripper PRO, RTX 4000 Ada, 1400W
Overview
The Lenovo ThinkStation P8 (30HH007UUS) is a tower workstation built around AMD's Threadripper PRO 7945WX — a 12-core, 24-thread processor with a 4.70 GHz base and 5.3 GHz boost clock — paired with 32GB of DDR5-4800 ECC memory and an NVIDIA RTX 4000 Ada Generation 20GB GPU. This is the configuration for environments where compute density, GPU-accelerated rendering, and large-model inference need to coexist in a single chassis: video analytics servers, physical security operations centers running AI-assisted VMS platforms, or multi-stream encoding stations handling simultaneous high-resolution feeds.
The platform ships with Lenovo workstation DNA built for sustained professional workloads — not a consumer desktop repackaged with a workstation label. The 1400W power supply gives headroom for future GPU or storage expansion without hitting a PSU ceiling the day you need to scale.
Key Features
- AMD Threadripper PRO 7945WX — 12C/24T, 5.3 GHz Boost: Twenty-four threads at 5.3 GHz means you can run a dense VMS decode workload on one NUMA node while a second process handles GPU-fed analytics — without the two competing for the same execution resources. This processor class is the reason integrators choose P8-series over mainstream tower workstations when channel counts exceed 64 streams.
- NVIDIA RTX 4000 Ada Generation, 20GB VRAM: The Ada Lovelace architecture brings 3rd-gen RT cores and 4th-gen Tensor cores — relevant if you're running on-device deep learning inference (object detection, license plate recognition, behavioral analytics) alongside traditional rendering. 20GB of VRAM is a hard requirement for multi-model inference pipelines; cheaper 8–12GB cards will page out under concurrent model loads.
- 32GB DDR5-4800 ECC in 2×16GB Configuration: DDR5 at 4800 MHz with ECC keeps undetected memory errors out of long-running analytics or recording processes. The 8-slot DIMM configuration means you're currently using 2 of 8 slots — straightforward path to 64GB, 128GB, or 256GB without replacing existing DIMMs, depending on supported DIMM densities.
- 1TB PCIe Gen4 M.2 2280 TLC Opal SSD: PCIe Gen4 NVMe delivers roughly 7,000 MB/s sequential read — fast enough that this drive won't bottleneck a VMS writing multiple simultaneous high-bitrate streams. The Opal (TCG Opal 2.0) designation means hardware-based self-encrypting drive support, relevant for deployments with data-at-rest compliance requirements (HIPAA, CJIS, FedRAMP-adjacent).
- 1400W 80 Plus Platinum PSU: A 1400W supply in this configuration (12-core CPU + RTX 4000 Ada) is not overkill — it's headroom. You can add a second PCIe GPU, multiple NVMe drives, and fully populate the DIMM slots without approaching the PSU ceiling. Platinum efficiency rating keeps heat and operating costs manageable in 24/7 server-room deployments.
- Wi-Fi 6E (RZ616, 2×2 AX) + Bluetooth 5.3: The RZ616 is a MediaTek Wi-Fi 6E chip supporting 6 GHz band operation — useful if you're deploying in a location where cabling to a wired switch isn't practical. Bluetooth 5.3 supports peripherals and short-range sensor pairing. For primary network connectivity in a production VMS server role, use the onboard Ethernet instead.
- PCIe, USB, and Ethernet Interfaces: The P8 platform provides PCIe expansion for capture cards, additional NVMe, or specialized accelerators. USB connectivity covers peripheral provisioning and initial configuration. Onboard Ethernet handles the primary network trunk for VMS traffic and NVR integration.
- Windows 11 Pro 64-bit, 3-Year Premier Next Business Day Warranty: Ships ready for enterprise deployment without a Windows license gap. The 3-year Premier NBD warranty covers on-site next-business-day service — a real operational factor for installations where workstation downtime halts a monitoring operation.
Integration and Compatibility
The 30HH007UUS fits naturally into network video recorder and VMS server architectures where a dedicated decode/analytics host offloads processing from embedded NVR appliances. The RTX 4000 Ada is certified for several professional VMS and analytics platforms — verify GPU acceleration support with your specific VMS platform before deployment. PCIe expansion slots accommodate video capture cards for hybrid analog/IP installations. The DDR5 ECC memory platform aligns with requirements for continuous-operation environments. For PoE infrastructure feeding the IP cameras this workstation will manage, pair it with an appropriate PoE network switch for the camera-side network layer. If storage retention is a consideration, the available DIMM and PCIe slots support additional NAS or direct-attach storage expansion.
Frequently Asked Questions
Q: What processor does the ThinkStation P8 30HH007UUS use, and how many cores does it have?
A: The 30HH007UUS ships with the AMD Threadripper PRO 7945WX — 12 cores, 24 threads, 4.70 GHz base clock, 5.3 GHz boost clock.
Q: How much RAM is installed and what is the maximum supported?
A: This configuration includes 32GB DDR5-4800 ECC in a 2×16GB arrangement across 2 of 8 available DIMM slots. The remaining 6 slots are open for expansion, though maximum supported capacity depends on platform limits — confirm with Lenovo's configurator for your target DIMM density.
Q: What GPU is included and how much VRAM does it have?
A: The system includes one NVIDIA RTX 4000 Ada Generation GPU with 20GB of VRAM, based on the Ada Lovelace architecture with 3rd-gen RT cores and 4th-gen Tensor cores.
Q: Is the SSD self-encrypting and what interface does it use?
A: Yes. The included 1TB SSD is an M.2 2280 PCIe Gen4 Performance TLC drive with Opal (TCG Opal 2.0) hardware encryption support. The PCIe Gen4 interface delivers sequential read speeds around 7,000 MB/s.
Q: What does the included warranty cover?
A: This configuration includes a 3-year Lenovo Premier Next Business Day on-site warranty, which covers on-site service with next-business-day response.
Q: Does the 30HH007UUS support Wi-Fi, and which standard?
A: Yes. It includes the MediaTek RZ616 Wi-Fi 6E adapter (2×2 AX) supporting the 6 GHz band, along with Bluetooth 5.3. For production server roles, the wired Ethernet interface is recommended for primary connectivity.
When I evaluate workstations for physical security operations centers and AI-assisted VMS deployments, the 30HH007UUS stands out for one specific reason: 20GB of VRAM on the RTX 4000 Ada. That's not a vanity spec — multi-model inference pipelines (simultaneous object detection, LPR, and behavioral analytics) routinely exceed 12GB VRAM under concurrent load, and you don't want your analytics engine paging out to system RAM mid-operation. Pair that with the Threadripper PRO 7945WX's 24 threads at up to 5.3 GHz boost, and you have a platform that handles both the CPU-side decode work and the GPU-side inference without the two processes fighting over the same resources.
Technical Highlights:
- DDR5-4800 ECC, 2×16GB in 8-slot chassis: ECC matters in always-on deployments — a single uncorrected memory error in a VMS process can corrupt a recording buffer or crash an analytics feed. Six open DIMM slots mean you can scale to 128GB+ without replacing existing modules.
- PCIe Gen4 NVMe SSD with Opal encryption: TCG Opal 2.0 hardware encryption on the OS/application drive satisfies data-at-rest requirements for CJIS and HIPAA-adjacent deployments without the CPU overhead of software encryption. Gen4 bandwidth prevents the drive from becoming the bottleneck when logging high-bitrate multi-camera streams.
- 1400W Platinum PSU headroom: This configuration draws well under 600W under typical load. The 1400W ceiling leaves room to add a second GPU, populate all 8 DIMM slots, and add PCIe NVMe cards without revisiting the power supply — an important factor when expansion happens 18 months after initial install.
Deployment Considerations:
- The 9 lb weight and tower form factor mean this sits on a rack shelf or a floor mount — it's not a 1U/2U rackmount unit. If your ops center requires rackmounted equipment, verify a rack enclosure is in scope before ordering.
- Wi-Fi 6E is included but treat it as a convenience interface for initial setup only. In a production VMS server role, terminate the primary network connection on the wired Ethernet port — Wi-Fi introduces latency variability and channel contention that's unacceptable for high-channel-count camera traffic.
The 30HH007UUS is the right pick for a physical security operations center server room where a single workstation needs to handle 64+ camera stream decode, real-time GPU analytics, and local recording simultaneously — and where the 3-year Premier NBD warranty keeps a support contract in place for a business-critical node.
