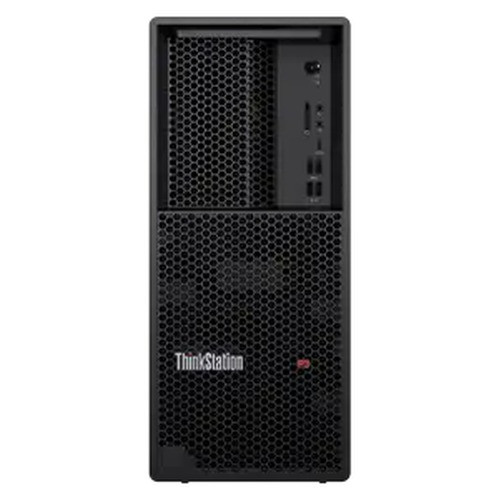

Lenovo 30HH002YUS Thinkstation P8 AP7945WX 16G X2 W11P

Lenovo 30HH002YUS ThinkStation P8 AMD Threadripper PRO Tower Workstation

Overview

The Lenovo ThinkStation P8 (30HH002YUS) is a full-tower workstation built around AMD's Ryzen Threadripper PRO 7945WX — a 12-core, 24-thread processor from the PRO 7000 WX-Series that delivers the core count and memory bandwidth that VMS servers, video analytics engines, and multi-stream encoding platforms actually require. This isn't a repurposed consumer desktop: the sTR5 platform it sits on supports up to 1 TB of DDR5 ECC RAM across 8 DIMM slots, giving you genuine headroom for enterprise workloads that would saturate a standard workstation within months. If you're standing up a Milestone XProtect, Genetec Security Center, or Avigilon Control Center server that needs to handle dozens of simultaneous high-resolution streams with on-box analytics, the 30HH002YUS is sized for that role.

Lenovo positions the ThinkStation P8 as a professional-grade tower for compute-intensive deployments, and the processor choice bears that out. The Threadripper PRO 7945WX is a 12-core part — not the top of the WX-Series stack, but a rational balance of compute density and platform cost for integrators who need WX-Series memory scalability without paying for 64-core peak throughput.

Key Features

• AMD Ryzen Threadripper PRO 7945WX — 12 cores / 24 threads: The 24 hardware threads let a VMS decode, analyze, and re-encode multiple streams simultaneously without thread starvation. At 4.7 GHz base and 5.3 GHz boost, single-threaded workloads (video codec operations, per-stream analytics inference) run fast when the workload isn't fully parallelized.
• 64 MB L3 cache: A large L3 cache matters for applications that repeatedly access the same data structures — video frame buffers, analytics model weights, database indexes. 64 MB reduces main-memory round trips on workloads that don't fit in L2 but are accessed in tight loops.
• 32 GB DDR5-4800 installed (2 × 16 GB): The system ships with 32 GB across two of its eight DIMM slots, running at 4800 MHz on the DDR5 bus. That leaves six slots open — practical if you're staging the deployment now and expanding later without swapping existing DIMMs.
• 8 × DIMM slots, up to 1 TB maximum memory: The sTR5 platform's memory ceiling of 1 TB is the defining reason to specify a Threadripper PRO over a standard HEDT platform. A Milestone XProtect Corporate installation with 200+ cameras and long-term retention indexes, or a multi-tenant analytics server running parallel inference jobs, can realistically consume hundreds of gigabytes of RAM. Having a clear upgrade path to 1 TB without a platform change is operationally significant.
• Socket sTR5 platform: sTR5 is AMD's current professional workstation socket — not a consumer chipset. This matters for driver stability, ECC memory support, and PCIe lane count when you're adding capture cards, GPU accelerators, or NVMe storage arrays.
• DDR5 memory bus: DDR5 at 4800 MHz delivers roughly double the bandwidth of DDR4-3200 per channel. For workloads that are memory-bandwidth-bound — large-frame video processing, parallel analytics inference — this translates directly to sustained throughput rather than theoretical peak numbers.
• Factory-assembled in Mexico, 9 lb chassis: At 9 lbs the P8 is lighter than many full-tower workstations, but this is still a tower-format system. Plan for floor or rack-shelf placement — it is not a 1U/2U rackable unit.

Integration and Compatibility

The ThinkStation P8 runs Windows 11 Pro (as configured in the 30HH002YUS SKU), which is compatible with all major enterprise VMS platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet WAVE. The Threadripper PRO platform supports PCIe Gen 5 expansion, which means current-generation GPU accelerators for deep-learning analytics (NVIDIA RTX or A-series) slot in without a bandwidth bottleneck at the bus level.

For network video recorder and VMS server deployments, pair the P8 with appropriate surveillance-grade storage — the DIMM headroom and core count are only half the picture; sustained write throughput to NVMe or RAID arrays determines whether the system holds up under 24/7 multi-stream recording. Explore Lenovo workstations and servers for compatible platform options. Integrators deploying camera-dense environments should also review our IP camera catalog to match stream count against the P8's decode capacity, and consult the PoE switch selection for network infrastructure sizing.

The 30HH002YUS ships with Windows 11 Pro pre-installed, so out-of-box provisioning for VMS software is straightforward. Confirm with your VMS vendor that their current release is qualified on Windows 11 Pro before ordering — most enterprise platforms are, but some older versions have specific OS dependencies.

Frequently Asked Questions

Q: What processor does the Lenovo 30HH002YUS use?

A: The 30HH002YUS is configured with the AMD Ryzen Threadripper PRO 7945WX — a 12-core, 24-thread processor from the PRO 7000 WX-Series, with a 4.7 GHz base clock and 5.3 GHz boost clock, on the Socket sTR5 platform.

Q: How much RAM does the ThinkStation P8 30HH002YUS ship with, and how far can it be expanded?

A: It ships with 32 GB of DDR5-4800 RAM installed as 2 × 16 GB across two of the eight available DIMM slots. The platform supports up to 1 TB maximum installed memory, leaving substantial upgrade headroom without replacing existing modules.

Q: Is the 30HH002YUS a rack-mounted unit or a tower?

A: It is a tower workstation. At approximately 9 lbs it is relatively compact for the platform, but it is not a rack-mount or 1U/2U server chassis. Plan for floor, desk, or shelf placement in your server room or operations center.

Q: What operating system does the 30HH002YUS ship with?

A: The unit ships with Windows 11 Pro pre-installed, as indicated in the product configuration (W11P suffix in the product name).

Q: How many PCIe expansion slots does the ThinkStation P8 have?

A: The specific slot count is not confirmed in the available evidence for the 30HH002YUS. Contact a pre-sales specialist for confirmed expansion slot and PCIe lane specifications before sizing GPU or capture card configurations.

Q: Is the 30HH002YUS suitable as a VMS server for large camera counts?

A: The Threadripper PRO 7945WX's 12 cores and 24 threads, combined with the platform's 1 TB memory ceiling, make the P8 a viable VMS server for multi-stream deployments. The appropriate camera count depends on resolution, codec, frame rate, and analytics load — variables that require sizing against your specific VMS platform's published requirements.

James Everett

When I spec a VMS server for a camera-dense deployment, the memory ceiling is usually the first constraint I hit — not the processor. The 30HH002YUS addresses that directly: the sTR5 platform supports up to 1 TB of DDR5 RAM across 8 DIMM slots, and it ships with only 32 GB installed, which means the upgrade path is wide open. That's the architectural reason to consider a Threadripper PRO platform over a mainstream desktop, even at the 12-core entry point of the 7945WX.

Technical Highlights:

• Threadripper PRO 7945WX — 5.3 GHz boost: 12 cores with 24 threads handles concurrent decode, analytics inference, and re-encode workloads without the thread contention you see on 6- or 8-core platforms when camera counts climb past 64.
• 64 MB L3 cache: Reduces main-memory round trips on analytics workloads that repeatedly access the same model weights or frame buffer regions — measurable in sustained throughput, not just synthetic benchmarks.
• 1 TB maximum memory on DDR5-4800: Most enterprise VMS platforms recommend 32–64 GB for mid-scale deployments, but long-term archive indexes, parallel analytics jobs, and multi-tenant configurations can exhaust that quickly. Having a verified 1 TB ceiling on a single socket is a real architectural advantage for forward-sizing a server room build.

Deployment Considerations:

• The 30HH002YUS ships with Windows 11 Pro — verify your VMS platform's current qualified OS list before provisioning. Milestone XProtect and Genetec Security Center both support Win11 Pro on current releases, but older VMS versions may have specific requirements.
• This is a tower chassis, not a rack unit. At 9 lbs it's manageable, but if your operations center or server room runs standard 19-inch rack infrastructure, you'll need a tower-to-rack conversion shelf rather than direct rack mounting.

The P8 in this configuration is a strong fit for a primary VMS server in a mid-to-large physical security deployment — command centers, campus-wide surveillance infrastructure, or any environment where the analytics and recording load justifies a professional workstation platform over a repurposed commercial desktop.
