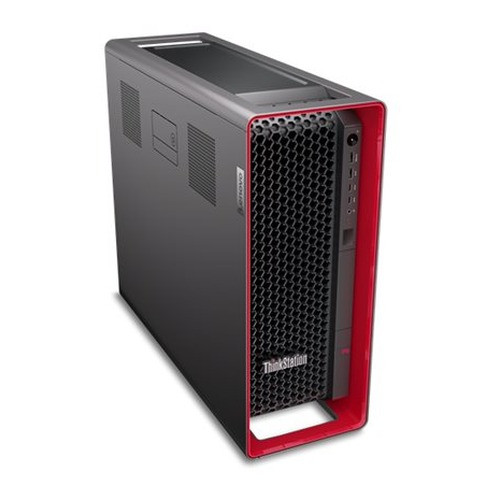

Lenovo 30HH002RUS Thinkstation P8 AP7945WX 16G X2 W11P

Lenovo 30HH002RUS ThinkStation P8 AMD Threadripper PRO Workstation

Overview

The Lenovo ThinkStation P8 30HH002RUS is a professional-grade tower workstation built around AMD's Ryzen Threadripper PRO 7945WX — a 12-core, 24-thread processor from the 7000 WX-Series that targets architects, engineers, simulation analysts, and security operations teams who need sustained compute throughput without the complexity of a dual-socket build. At 9.00 lb, the P8 chassis is compact for its class, yet the platform underneath is anything but light. With a Socket sTR5 foundation and eight DIMM slots configurable up to 1TB of DDR5 RAM, this machine is designed to grow with a workload rather than force a hardware refresh the moment projects scale.

The 30HH002RUS ships with 32GB of DDR5-4800 RAM across two 16GB modules — leaving six slots open for immediate expansion. That headroom matters in environments where dataset sizes or concurrent VM counts grow month over month.

Key Features

• AMD Ryzen Threadripper PRO 7945WX — 12 Cores / 24 Threads: The 7945WX runs at a base 4.7GHz and boosts to 5.3GHz, giving you single-threaded responsiveness for interactive work alongside the multi-threaded depth needed for rendering, simulation, or running a VMS server with parallel stream decoding. Twelve real cores at these clock speeds outpace typical 16-core designs from prior generations on per-core workloads.
• 64MB L3 Cache: The oversized L3 cache — 64MB on a 12-core processor — keeps working datasets resident on-chip longer, reducing main-memory round trips. For analytics workloads processing large frame buffers or running inference on video streams, this translates to lower latency and more consistent frame throughput than cache-starved alternatives.
• 32GB DDR5-4800 (2 × 16GB, 6 Slots Free): DDR5 at 4800MHz delivers substantially higher memory bandwidth than DDR4, relevant when feeding a GPU or running memory-intensive workloads like multi-stream AI inference. Six of eight DIMM slots remain open, so you can expand to 128GB, 256GB, or beyond without pulling existing modules.
• Up to 1TB Maximum RAM: Socket sTR5 with eight DIMM slots supports up to 1TB of installed memory. That ceiling is relevant for operators running a full VMS environment, large simulation sets, or containerized workloads that would exhaust a standard desktop platform within months of deployment.
• Socket sTR5 Platform Longevity: The sTR5 socket is AMD's current-generation Threadripper PRO platform, meaning processor upgrade paths remain open within the same chassis — a meaningful factor for IT procurement planning when budgets require staged upgrades rather than full system replacement.
• Windows 11 Pro: Ships with Windows 11 Pro, supporting domain join, BitLocker, Remote Desktop, and Hyper-V out of the box. For enterprise environments requiring centralized management, Group Policy compatibility, and TPM-backed encryption, this eliminates a licensing step on deployment.

Integration and Compatibility

The ThinkStation P8 30HH002RUS is built on the AMD Ryzen Threadripper PRO 7000 WX-Series platform, which is broadly supported by ISV-certified software stacks across CAD, simulation, and video management environments. The Socket sTR5 architecture supports PCIe 5.0 lanes at the platform level, making it compatible with current-generation GPU and NVMe expansion cards. The eight-slot DDR5 memory architecture supports ECC memory configurations depending on module selection — relevant for uptime-critical deployments where memory error correction is a requirement. Confirm ECC support with your memory vendor for the specific module configuration intended.

For security operations centers or VMS server deployments, the combination of 24 threads, DDR5 bandwidth, and expandable RAM makes the P8 a capable host for multi-camera recording servers, AI-assisted video analytics engines, or edge inference nodes — particularly where the workstation needs to serve dual duty as both a recording platform and an analytics processor. Pair it with a network video recorder or use it directly as a VMS server host depending on your site architecture.

Lenovo's ThinkStation line has a long history of professional workstation deployments in enterprise and government environments. For guidance on configuring a workstation for surveillance or security operations use cases, see the camera and system selection guide. If you are building out a full security infrastructure, the surveillance camera catalog provides compatible endpoint options.

Frequently Asked Questions

Q: What processor does the 30HH002RUS include?

A: The 30HH002RUS ships with the AMD Ryzen Threadripper PRO 7945WX — a 12-core, 24-thread processor from the 7000 WX-Series, running at 4.7GHz base and 5.3GHz boost, with 64MB of L3 cache.

Q: How much RAM does the ThinkStation P8 30HH002RUS come with, and can it be expanded?

A: It ships with 32GB of DDR5-4800 RAM (2 × 16GB modules). The platform has eight DIMM slots and supports up to 1TB of total installed memory, leaving six slots available for expansion.

Q: What operating system is included with the 30HH002RUS?

A: The 30HH002RUS ships with Windows 11 Pro, which includes BitLocker, Remote Desktop, Hyper-V, and domain join support for enterprise environments.

Q: Is the 30HH002RUS suitable as a VMS server or surveillance workstation?

A: The 12-core / 24-thread Threadripper PRO 7945WX and DDR5 memory bandwidth make it technically capable of running multi-stream VMS environments and AI video analytics workloads. Specific VMS compatibility depends on the software vendor's certification list — confirm with your VMS vendor before deployment.

Q: What is the weight of the ThinkStation P8 30HH002RUS?

A: The unit weighs 9.00 lb, which is compact for a Threadripper PRO platform. Verify rack or desk mounting clearances against your site's physical constraints.

Karl Wilson

The Lenovo 30HH002RUS is one of the more interesting workstation configurations I see come through for security infrastructure use — the Threadripper PRO 7945WX hits 5.3GHz boost on a 12-core platform, which gives you the per-core speed that interactive VMS clients demand while still delivering enough thread count for background analytics and recording tasks running in parallel. The memory story here is what separates it from a standard desktop play.

Technical Highlights:

• AMD Ryzen Threadripper PRO 7945WX (12C/24T, 5.3GHz boost): The boost frequency advantage over comparable multi-core desktop processors means single-stream playback, codec decoding, and UI responsiveness stay sharp even when background tasks are saturating available threads.
• 64MB L3 Cache on a 12-core die: That cache-to-core ratio is generous — roughly 5.3MB per core — which keeps frame buffer data and inference model weights resident on-chip longer. Less DRAM pressure means more consistent throughput on analytics pipelines processing high-resolution streams.
• 8 × DIMM slots, 1TB max, DDR5-4800: Six slots open on arrival is the real flexibility story. A site that starts with 32GB can grow to 256GB or 512GB without a chassis swap — meaningful for VMS deployments where retained history and concurrent stream counts tend to creep upward after year one.

Deployment Considerations:

• Confirm ECC memory compatibility with your intended module vendor if the deployment requires error-corrected memory — the sTR5 platform supports it at the architecture level, but the specific configuration needs verification against Lenovo's compatibility matrix for this SKU.
• At 9.00 lb, the P8 chassis is desk- or shelf-deployable, but verify physical clearances before committing to a rack shelf or enclosed AV furniture install — airflow requirements for a Threadripper PRO platform are more demanding than a standard desktop.

This configuration fits a security operations build where the workstation pulls double duty as both the primary VMS operator console and the analytics processing host — the 24-thread headroom handles background inference without dragging down the operator's interactive experience.
