Lenovo 30HA0072US ThinkStation P3 Ultra Intel Core I714700 vPro Ecores Up to 4.20GHZ 33MB Windows

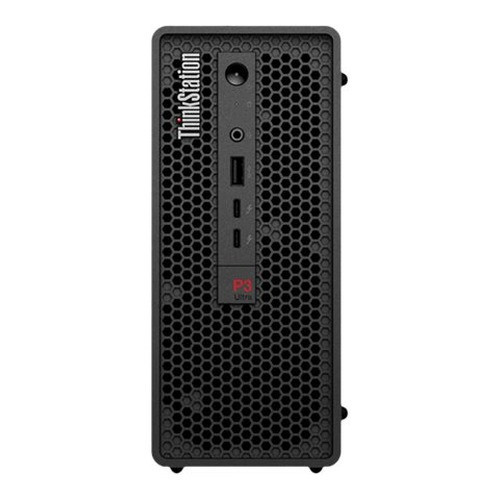

Lenovo 30HA0072US ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA0072US) is a compact-form-factor professional workstation built around Intel's 20-core Core i7-14700 vPro processor — a configuration that makes it a credible candidate for security operations centers, VMS server roles, and engineering workstations where desk space is limited but compute headroom cannot be compromised. The P3 Ultra fits the workload gap between a business desktop and a rack-mounted server: more CPU and memory expandability than a mini PC, but packaged in a chassis that mounts behind a monitor or sits flat on a shelf in a rack enclosure.

Out of the box, the 30HA0072US ships with 32GB of memory, a 1TB PCIe Gen4 NVMe SSD, Intel UHD Graphics 770, Intel AX211 Wi-Fi 6E with vPro, Bluetooth 5.1, and Windows 11 Pro 64-bit — a complete, ready-to-deploy configuration that covers most VMS and analytics workloads without additional component sourcing.

Key Features

• Intel Core i7-14700 (20 Cores / 28 Threads): The hybrid architecture pairs 8 Performance cores (up to 5.3 GHz turbo) with 12 Efficient cores (up to 4.2 GHz turbo). In practice, this means single-threaded VMS decode tasks hit the P-cores at full boost while background analytics, recording, and OS processes land on the E-cores — keeping the workstation responsive under mixed load without thermal throttling from a crowded monolithic core design.
• 33 MB Intel Smart Cache: A large shared cache at this core count reduces main-memory round-trips for video decode pipelines. When you're running 32- or 64-channel live decode simultaneously, cache pressure is a real bottleneck on under-specced workstations — the 33 MB pool gives the i7-14700 meaningful headroom over previous-gen platforms.
• 1TB PCIe Gen4 TLC Opal SSD (M.2 2280): Gen4 sequential reads run roughly double Gen3 speeds, which matters during simultaneous write (recording) and read (live review or export) operations common in forensic workflows. The Opal 2.0 hardware encryption support means you can enable drive-level encryption for sensitive footage archives without a software performance penalty.
• 32GB RAM: Sufficient for mid-range VMS deployments — Milestone XProtect Corporate, Genetec Security Center, or Avigilon Control Center all recommend 16–32GB for 32–64 camera configurations. If your channel count grows, verify the P3 Ultra's maximum supported RAM before committing to this SKU as a long-term platform.
• Intel vPro (AX211): vPro enables out-of-band management via Intel AMT — you can remotely power cycle, access BIOS, or image the OS over the network even if the machine is unresponsive. For unattended security workstation deployments in remote locations or server closets, this is a material operational benefit over non-vPro platforms.
• Intel UHD Graphics 770: The integrated GPU handles up to four 4K display outputs and accelerates H.264/H.265 hardware decode in compatible VMS clients. For software-decoded streams beyond what the iGPU handles, the i7-14700's CPU decode throughput is the fallback — but for most 32-channel HD deployments, the UHD 770 will carry the display workload without touching CPU cycles.
• Windows 11 Pro 64-bit (pre-installed): Ships with a full Pro license — not Home, not OEM-limited. BitLocker, Remote Desktop, Hyper-V, and domain join are all available immediately without an upgrade purchase. Relevant if your deployment uses Group Policy for workstation hardening or requires domain authentication.
• Intel AX211 Wi-Fi 6E + BT 5.1: Wi-Fi 6E support means you can connect to 6 GHz networks for interference-free high-throughput links — useful in dense environments where 5 GHz is congested. BT 5.1 covers peripherals and short-range sensor integrations without a separate adapter.

Integration and Compatibility

The 30HA0072US runs Windows 11 Pro, which is the supported OS baseline for all major enterprise VMS platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet WAVE. The Intel vPro platform is compatible with enterprise endpoint management tools such as Microsoft Endpoint Manager and Intel EMA for remote management. The PCIe Gen4 M.2 slot and available expansion bays allow storage and capture card additions as your deployment scales. For surveillance workstations running high-channel-count decode or AI analytics inference, verify GPU requirements — some analytics engines (NVIDIA-accelerated) will require a discrete GPU added to the expansion slot, which the P3 Ultra's compact form factor may limit depending on card length. Review the full Lenovo workstation catalog for rackmount and tower alternatives if GPU expansion headroom is a hard requirement. For network-attached recording, pairing this workstation with a dedicated NVR offloads the recording I/O and lets the P3 Ultra focus on VMS client, analytics, and operator tasks. If you're evaluating storage requirements for your deployment, consult our storage and retention planning guide. For PoE switch infrastructure supporting IP cameras feeding this workstation, see our PoE switch selection.

Frequently Asked Questions

Q: What is the processor in the Lenovo 30HA0072US and how many cores does it have?

A: The 30HA0072US uses the Intel Core i7-14700 (14th gen), a 20-core / 28-thread hybrid processor with 8 Performance cores (up to 5.3 GHz turbo) and 12 Efficient cores (up to 4.2 GHz turbo). Processor cache is 33 MB Intel Smart Cache.

Q: Does the 30HA0072US support Intel vPro for remote management?

A: Yes. The i7-14700 in this configuration is a vPro-enabled processor, and the system ships with the Intel AX211 vPro wireless adapter. This enables Intel AMT out-of-band management for remote power control, BIOS access, and OS imaging over the network — even when the OS is unresponsive.

Q: What operating system does the Lenovo ThinkStation P3 Ultra 30HA0072US ship with?

A: Windows 11 Pro 64-bit, pre-installed. This is a full Pro license supporting BitLocker encryption, Remote Desktop, Hyper-V, and domain join.

Q: Is the SSD in the 30HA0072US encrypted? Can it be used for sensitive footage storage?

A: The 1TB SSD is specified as M.2 2280 PCIe Gen4 TLC with Opal (hardware encryption) support. Opal 2.0 allows drive-level AES encryption managed by compatible software or BIOS without impacting drive performance — appropriate for deployments with data-at-rest compliance requirements.

Q: What is the warranty on the Lenovo 30HA0072US?

A: The 30HA0072US includes a 3-Year Premier Support warranty from Lenovo, as noted in the product configuration. Premier Support provides direct access to advanced-level technicians with on-site service options.

Q: Can the 30HA0072US run a VMS like Milestone XProtect or Genetec Security Center?

A: Yes. Windows 11 Pro is the supported OS for both Milestone XProtect and Genetec Security Center. The i7-14700 with 32GB RAM meets or exceeds the recommended hardware specifications for mid-range configurations (32–64 camera channels) in both platforms. For high channel counts with AI analytics, verify GPU acceleration requirements — a discrete GPU may be needed depending on the analytics engine.

Marty Allison

The 30HA0072US stands out in the compact workstation category specifically because of the i7-14700's hybrid core architecture — 8 P-cores running up to 5.3 GHz for demanding single-threaded VMS decode tasks, and 12 E-cores absorbing the background workload of recording, indexing, and OS processes simultaneously. That separation is what makes this configuration genuinely practical for a 32–64 camera VMS role, not just plausible on paper.

Technical Highlights:

• 20-Core Hybrid CPU (5.3 GHz P-core Turbo): The P-core turbo ceiling of 5.3 GHz is the highest single-thread throughput available in the P3 Ultra line — directly relevant for VMS clients doing real-time H.265 software decode on high-resolution streams where per-frame latency matters.
• PCIe Gen4 Opal SSD: Gen4 bandwidth (~7 GB/s sequential read) means simultaneous forensic export and live recording won't fight for I/O bandwidth the way they would on a Gen3 drive. The Opal 2.0 encryption layer is a practical compliance checkbox for regulated environments without the CPU overhead of software encryption.
• Intel vPro / AMT (AX211): Out-of-band management is frequently overlooked in workstation selection until something goes wrong at a remote site at 2am. AMT lets you power cycle, access pre-boot BIOS, and re-image the OS without a truck roll — a concrete operational cost reduction for multi-site deployments.

Deployment Considerations:

• The integrated Intel UHD Graphics 770 handles hardware H.265 decode and up to four 4K outputs, but if your VMS or analytics platform requires NVIDIA CUDA or OpenCL GPU acceleration (common with deep-learning analytics engines), you'll need to verify that the P3 Ultra's compact chassis can physically accommodate the GPU card length you're targeting before ordering.
• At 32GB RAM, this configuration is well-suited for 32–64 channel deployments, but RAM expandability limits should be confirmed against the P3 Ultra platform spec before deploying in environments projected to grow beyond 64 channels — a tower-class ThinkStation may be a better long-term platform at higher channel counts.

The 30HA0072US is the right pick for a security operations workstation, a dedicated VMS client/analytics node in a mid-size deployment, or an engineering workstation in a space-constrained rack or AV closet — specifically where vPro remote management and Opal-encrypted storage are operational requirements, not nice-to-haves.
