Lenovo 30HA006YUS ThinkStation P3 Ultra Intel Core I714700 vPro Ecores Up to 4.20GHZ 33MB Windows

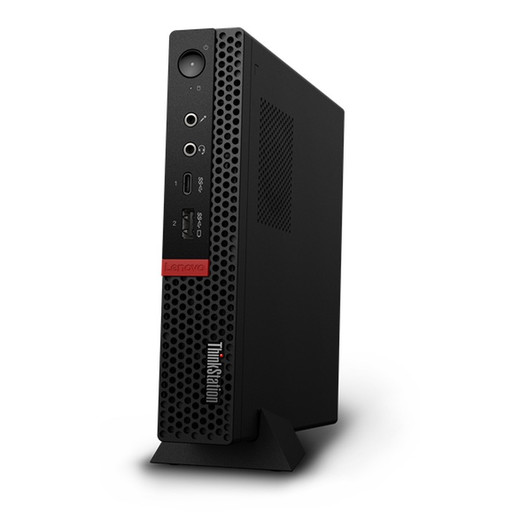

Lenovo 30HA006YUS ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra 30HA006YUS is a compact-form-factor workstation built around Intel's 20-core i7-14700 vPro processor — a machine designed for integrators and IT architects who need real workstation compute in a space-constrained equipment room, operator workstation, or edge-server rack shelf. At 9.0 lb in an M.2-class compact form factor, it punches well above its footprint: 64 GB of RAM, a 1 TB PCIe Gen4 NVMe SSD, Intel UHD Graphics 770, Wi-Fi 6E with vPro, and a three-year Premier support contract included. If your deployment requires a compact workstation that can handle simultaneous VMS decode, analytics processing, and enterprise domain management without a full tower, the 30HA006YUS warrants a close look.

Key Features

• Intel Core i7-14700 vPro (20 cores / 28 threads): The hybrid architecture splits 8 Performance cores (up to 5.3 GHz turbo) and 12 Efficient cores (up to 4.2 GHz turbo) across 28 threads. For video surveillance workloads — simultaneous live view decoding, motion search, and export — the E-core cluster handles background tasks without competing with UI rendering on the P-cores. The 33 MB Smart Cache keeps frequently accessed frame buffers and codec tables on-die, reducing main-memory round-trips during high-channel-count playback.
• vPro Platform (Intel AX211 + AMT): vPro enables out-of-band remote management via Intel AMT — meaning IT can push BIOS updates, remotely power-cycle, and run KVM sessions on this machine even when the OS is unresponsive. For a headless VMS server in an equipment room, that eliminates truck rolls for routine maintenance and OS-level recovery.
• 64 GB RAM: Most enterprise VMS platforms (Milestone XProtect, Genetec Security Center, Avigilon Control Center) recommend 16–32 GB for 32–64 channel deployments. At 64 GB, the 30HA006YUS has headroom for 64+ cameras on a single node without paging pressure — or for concurrent workstation use alongside server processes.
• 1 TB PCIe Gen4 TLC Opal SSD (M.2 2280): Gen4 sequential read speeds (typically 7,000+ MB/s on this form factor) make video export and clip retrieval noticeably faster than SATA or Gen3 alternatives. The Opal (TCG Opal 2.0) encryption means the drive can be hardware-encrypted at rest — a compliance requirement in healthcare, government, and financial deployments — without CPU overhead.
• Intel UHD Graphics 770 (integrated): The UHD 770 supports hardware H.265/HEVC and AV1 decode acceleration. Running a 64-channel 4K H.265 VMS view without GPU decode acceleration would saturate the CPU; offloading decode to the integrated GPU frees the i7-14700's cores for analytics and event processing. No discrete GPU card required for standard VMS display workloads.
• Wi-Fi 6E (802.11ax) + Bluetooth 5.1 via Intel AX211: The AX211 covers the 6 GHz band — useful in dense RF environments like casinos or airports where 2.4/5 GHz is congested. Bluetooth 5.1 supports proximity-based peripherals. Gigabit Ethernet is also present for primary LAN connection; Wi-Fi serves as a secondary or out-of-band path.
• Windows 11 Pro 64-bit: Ships with the full commercial OS license, not Home. BitLocker, Hyper-V, Remote Desktop host, and domain join are all available out of the box — no license upgrade required before deploying to a corporate domain or enabling VM-based sandboxing for VMS server processes.
• PCIe + USB + Ethernet Interfaces: The interface complement covers NVR-style storage expansion via PCIe (add an HBA for surveillance HDD arrays if needed), high-bandwidth peripheral attachment via USB, and wired LAN for camera-network segregation. This flexibility matters when the P3 Ultra is acting as both a recording server and an operator workstation.
• 3-Year Premier Support: Lenovo Premier support includes on-site next-business-day response in most regions, a dedicated support phone line, and Keep Your Drive (KYD) eligibility — meaning a failed drive stays with you rather than being returned to Lenovo, which matters for chain-of-custody on surveillance evidence drives.

Integration and Compatibility

The 30HA006YUS runs Windows 11 Pro and connects via standard PCIe, USB, and Ethernet interfaces, making it compatible with the major enterprise VMS platforms that publish Windows 11 support — including Milestone XProtect, Genetec Security Center, and Avigilon Control Center. The vPro / AMT stack integrates with Intel Endpoint Management Assistant and third-party RMM tools (ConnectWise, Kaseya, ManageEngine) for zero-touch provisioning. The Opal-compliant SSD pairs with BitLocker or third-party FDE solutions for FIPS 140-2 alignment in regulated environments. For deployments requiring additional local storage beyond the 1 TB SSD — typical in edge-recording scenarios — the PCIe interface supports NVMe expansion or an HBA for attached surveillance HDDs. Network segmentation between camera VLANs and corporate LAN is straightforward via the onboard Ethernet plus a managed PoE switch upstream.

Frequently Asked Questions

Q: What processor does the 30HA006YUS include, and how many cores does it have?

A: The 30HA006YUS ships with the Intel Core i7-14700 vPro, a 14th-generation hybrid processor with 20 cores (8 Performance + 12 Efficient) and 28 threads. Performance cores boost to 5.3 GHz; Efficient cores boost to 4.2 GHz. The processor cache is 33 MB Smart Cache.

Q: Does the 30HA006YUS support hardware drive encryption?

A: Yes. The included 1 TB M.2 2280 PCIe Gen4 SSD carries Opal (TCG Opal 2.0) self-encrypting drive support. This enables hardware-level full-disk encryption without CPU overhead, compatible with BitLocker eDrive and most enterprise FDE management platforms.

Q: What is the warranty on the Lenovo 30HA006YUS?

A: The 30HA006YUS includes a 3-Year Lenovo Premier support contract, which typically covers on-site next-business-day response and access to dedicated commercial support channels. Confirm specific coverage terms and regional service availability with Lenovo directly for your deployment location.

Q: Can the 30HA006YUS run as a headless VMS server managed remotely?

A: Yes. The Intel vPro platform with AMT (Active Management Technology) enables out-of-band remote management independent of the OS state — including remote power control, BIOS access, and KVM sessions. This makes it viable as a headless recording server in an equipment room managed via RMM tools without requiring physical access for routine maintenance.

Q: What is the weight and form factor of the 30HA006YUS?

A: The ThinkStation P3 Ultra weighs 9.0 lb and uses an Ultra Small Form Factor (USFF) / compact chassis design. Lenovo lists the storage form factor as M.2, consistent with its compact internal architecture.

Q: Does the 30HA006YUS include wireless connectivity?

A: Yes. It includes an Intel AX211 Wi-Fi 6E (802.11ax, 6 GHz capable) + Bluetooth 5.1 module, alongside wired Gigabit Ethernet. Wi-Fi 6E is useful in RF-congested environments; the primary network interface for camera traffic should still be wired Ethernet.

James Everett

The 30HA006YUS is the machine I'd reach for when a customer needs a single-node VMS server that also doubles as an operator workstation in a space where a tower won't fit. The i7-14700's 20-core hybrid design with a 219W maximum turbo power envelope is the key spec here — it means the processor can sprint hard during simultaneous decode and export bursts without the thermal throttling you'd see on a lower-TDP compact system.

Technical Highlights:

• 20-Core Hybrid CPU (65W base / 219W turbo): The 154W gap between base and turbo power means the system can sustain burst workloads — full-channel export, live decode, and analytics simultaneously — without being constrained to its thermal design point. That matters on multi-camera deployments where workload spikes are common during incident review.
• PCIe Gen4 Opal SSD: Gen4 bandwidth (M.2 2280 form factor) delivers sequential read performance well above what surveillance video retrieval demands, but the Opal 2.0 self-encryption is the real differentiator for regulated sites — it satisfies data-at-rest requirements without any measurable performance cost, unlike software-layer encryption under heavy decode load.
• Intel vPro / AX211 (Wi-Fi 6E + BT 5.1): AMT-capable vPro means this node can be provisioned and recovered entirely over the network. In a multi-site deployment where the P3 Ultra sits in a back-of-house IT closet, AMT eliminates on-site visits for BIOS-level troubleshooting — a real operational cost reduction at scale.

Deployment Considerations:

• At 9.0 lb and M.2 form factor, this fits on a standard shelf or VESA-mount — but confirm your VMS vendor's Windows 11 support matrix before deploying; most enterprise platforms have added Win 11 support but some older server-mode builds still flag it as unsupported.
• The 1 TB SSD is the only internal storage. For any deployment retaining more than a few days of high-bitrate footage locally, plan for network-attached storage or PCIe-attached expansion from day one — retrofitting storage architecture after go-live is the most common avoidable rework on these compact nodes.

This machine is well-suited for mid-size retail or corporate campus deployments (32–64 cameras) where the VMS server and primary operator workstation need to share a single compact node in a locked IT closet, and where enterprise remote management and drive encryption are non-negotiable requirements.
