Lenovo 30HA00BBUS Thinkstation P3 Ultra Intel Core I7-14700 Vpro (e-cores UP to 4.20GHZ 33MB)

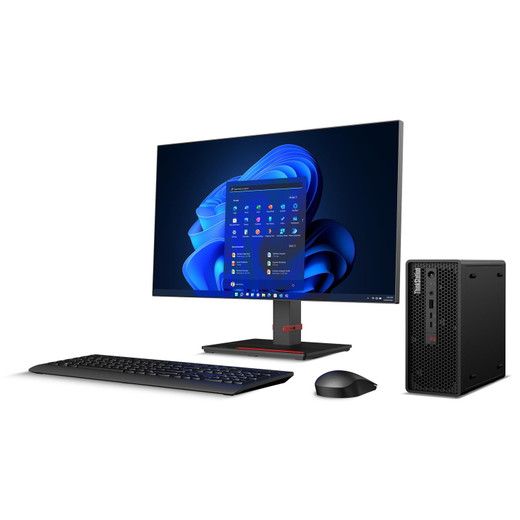

Lenovo 30HA00BBUS ThinkStation P3 Ultra Compact Workstation

The Lenovo ThinkStation P3 Ultra (30HA00BBUS) is a compact professional workstation built around Intel's 20-core Core i7-14700 vPro processor — a platform aimed at power users, security operations centers, and engineering environments that need serious compute headroom without a full tower footprint. With DDR5 memory, NVMe SSD storage, and Intel vPro manageability, this machine fits demanding professional workstation deployments where remote management and ISV-class performance matter.

Overview

The P3 Ultra slots into the Lenovo ThinkStation lineup between the entry-level P3 Tower and the higher-end P5/P7 Xeon platforms. The Ultra form factor is designed for deployments where desk space is constrained but workload requirements rule out a thin client — think video surveillance management stations, GIS workstations, engineering review terminals, and VMS operator consoles that need to decode multiple high-resolution streams simultaneously. The i7-14700 vPro brings Intel's hardware-level manageability platform, which means IT can push firmware updates, remote-wipe, and out-of-band manage the machine even when the OS is unresponsive — a meaningful operational advantage in distributed enterprise deployments.

Key Features

• 20-Core Intel Core i7-14700 vPro (up to 5.3 GHz boost): 20 cores (6 P-cores + 14 E-cores) with 28 threads handle parallel decode workloads without saturating the CPU — relevant for VMS deployments running 16–32 simultaneous HD or 4K camera streams. The 5.3 GHz single-core boost keeps latency-sensitive tasks like live playback and analytics rendering snappy.
• 32 GB DDR5-4800 MHz (expandable to 192 GB): DDR5 at 4800 MHz delivers roughly 50% more memory bandwidth than DDR4-3200 — that headroom matters when multiple high-resolution video streams are buffered in RAM simultaneously. The 192 GB ceiling via 4× SO-DIMM slots means the machine can grow with workload demands without a platform swap.
• 4× SO-DIMM slots, currently 1×32 GB installed: Three slots remain open. Populate with matched DDR5 DIMMs to scale capacity — the single-channel starting config means adding a second DIMM in the matching slot immediately enables dual-channel mode and measurable bandwidth gains. Plan memory upgrades before deployment if the workload is memory-bandwidth-sensitive.
• 1 TB NVMe SSD: A 1 TB solid-state drive handles OS, applications, and local video cache without the seek-latency penalty of spinning media. For VMS deployments that buffer locally before writing to NAS or NVR storage, SSD-backed local cache improves write throughput and reduces dropped-frame risk under burst recording conditions.
• Intel vPro Platform: vPro enables Intel AMT (Active Management Technology) for out-of-band remote access — IT can connect to the machine over the network, reboot it, re-image it, or push BIOS updates even if the OS is crashed or the machine is powered off (with wake-on-LAN configured). For distributed security operations where a technician can't be on-site within the hour, this is a real operational differentiator.
• DDR5-SDRAM memory type: DDR5 is the current-generation DRAM standard. It runs at lower per-chip voltage than DDR4 (1.1V vs 1.2V), which reduces thermal output in the memory subsystem — useful in compact Ultra chassis where airflow is tighter than in a full tower. Note that DDR5 SO-DIMMs are not backward compatible with DDR4 slots; all upgrade DIMMs must be DDR5.
• No optical drive: The P3 Ultra ships without an optical drive, consistent with enterprise workstation deployments where software delivery is network or USB-based. Plan for USB-based OS recovery media or PXE boot capability in your provisioning workflow.
• 9.0 lb chassis weight: At 9 lbs, the Ultra is light enough to VESA-mount behind a monitor or rack-mount in a 1U security console enclosure — a practical consideration for operator workstations where desk real estate is shared with multiple monitors and peripheral equipment.

Integration and Compatibility

The ThinkStation P3 Ultra's Intel vPro platform integrates with enterprise endpoint management tools including Intel Endpoint Management Assistant (Intel EMA) and Microsoft Endpoint Configuration Manager. For video management workstation deployments, the i7-14700's integrated Intel UHD Graphics 770 handles multi-monitor output at up to 4K — verify discrete GPU options if the deployment requires NVIDIA CUDA acceleration for AI-based video analytics or GPU-accelerated VMS decoding. The DDR5 platform supports ECC memory in select configurations — confirm ECC support with Lenovo's configuration documentation for the 30HA00BBUS SKU before specifying for environments requiring error-corrected memory. Pair with a capable managed network switch and NAS storage for a full video surveillance workstation stack. For storage expansion planning, consult a storage and retention guide matched to your camera count and resolution targets.

Frequently Asked Questions

Q: What processor does the 30HA00BBUS ship with?

A: The 30HA00BBUS ships with the Intel Core i7-14700 vPro — a 20-core (6 P-core + 14 E-core), 28-thread processor with a base frequency of 2.1 GHz and a boost frequency of up to 5.3 GHz.

Q: How much RAM does the 30HA00BBUS come with, and what is the maximum?

A: It ships with 32 GB of DDR5-4800 MHz RAM installed as a single SO-DIMM. The platform supports up to 192 GB across 4 SO-DIMM slots, leaving three slots open for future expansion.

Q: What storage does the 30HA00BBUS include?

A: The 30HA00BBUS ships with a 1 TB SSD as the primary storage device. There is no optical drive included.

Q: Does the 30HA00BBUS support out-of-band remote management?

A: Yes. The Intel vPro platform on the i7-14700 vPro includes Intel AMT (Active Management Technology), which allows IT administrators to remotely access, reboot, and manage the system even when the OS is unresponsive — a key feature for distributed enterprise deployments.

Q: Is DDR5 memory required for upgrades on the 30HA00BBUS?

A: Yes. The 30HA00BBUS uses DDR5 SO-DIMM slots exclusively. DDR4 modules are not compatible. Ensure any memory upgrades are DDR5 SO-DIMMs running at 4800 MHz or at a speed supported by the platform.

Q: What does the 30HA00BBUS weigh?

A: The unit weighs 9.0 lbs, making it manageable for VESA or under-desk mounting configurations typical in operator console deployments.

Marty Allison

The 30HA00BBUS stands out in the ThinkStation P3 Ultra line specifically because of the i7-14700 vPro pairing — 20 cores with a 5.3 GHz boost ceiling and Intel AMT baked in. For security operations center workstations where you need both decode throughput and IT-managed remote access in a compact chassis, that combination is harder to find than the spec sheet makes it look.

Technical Highlights:

• 20-core i7-14700 vPro at 5.3 GHz boost: The E-core cluster handles background tasks (OS, monitoring agents, logging) while P-cores stay available for latency-sensitive video decode — net effect is smoother multi-stream playback under real-world mixed workloads compared to a 10-core platform.
• DDR5-4800 with 192 GB ceiling: The 4× SO-DIMM slots and 192 GB max mean this platform can absorb workload growth for several years without a CPU/motherboard swap — a meaningful total-cost-of-ownership factor when specifying operator workstations for 5-year deployment cycles.
• 1 TB NVMe SSD, no optical drive: The all-SSD storage config is the right call for always-on workstation deployments — no moving parts means lower failure probability in 24/7 environments, and NVMe bandwidth keeps up with simultaneous read (live playback) and write (local cache buffering) without contention.

Deployment Considerations:

• The single 32 GB SO-DIMM ships in single-channel mode. For memory-bandwidth-intensive workloads — particularly VMS platforms decoding 4K streams — add a matched second DIMM to the paired slot immediately to unlock dual-channel and the associated bandwidth uplift before going live.
• Intel vPro AMT requires network-side configuration (dedicated management VLAN, Intel EMA or equivalent) to realize its remote-management value. Budget for that setup time in your deployment plan — AMT is not plug-and-play without the management infrastructure behind it.

This machine is a strong fit for a mid-size security operations center running a VMS platform like Milestone XProtect or Genetec Security Center on dedicated operator consoles — compact enough for a console desk, powerful enough for 16-camera 4K decode, and manageable enough for a lean IT team supporting multiple remote sites.
