Lenovo 30HA003NUS Thinkstation P3 Ultra I513600 32G X2

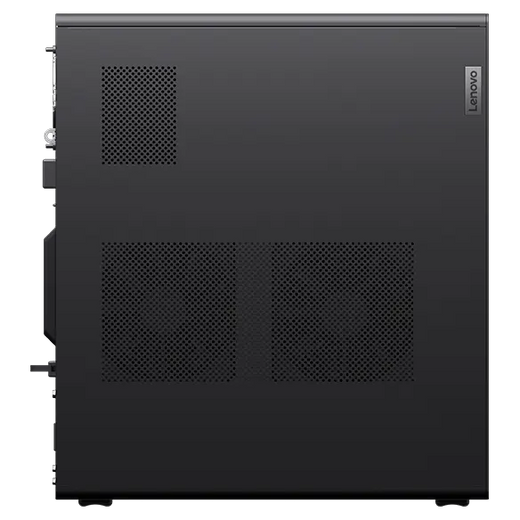

Lenovo 30HA003NUS ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA003NUS) is a compact small-form-factor workstation built around Intel's 13th Gen Core i5-13600 — a 14-core, 20-thread processor that delivers genuine multi-application throughput in a chassis that weighs just 9 lbs. For security workstations and VMS server deployments where rack space or desk footprint is constrained, the P3 Ultra's compact profile matters as much as its compute headroom. This is a purpose-built professional workstation from Lenovo's ThinkStation line, engineered to ISV certification standards and built in Mexico for North American commercial supply chains.

Key Features

• 14-Core Intel i5-13600 Processor: The hybrid P/E-core architecture puts 6 Performance cores (up to 5 GHz boost) and 8 Efficient cores (up to 3.7 GHz) to work simultaneously. In practice, this means your VMS client, analytics engine, and background recording processes aren't competing for the same cores — the scheduler assigns latency-sensitive tasks to P-cores while E-cores handle background I/O and encoding threads.
• 20 Threads for Concurrent Workloads: With 20 logical processors, the 30HA003NUS can handle simultaneous streams from a multi-camera VMS, live analytics inference, and operator UI without the frame-drop and lag that plagues quad-core workstations under full surveillance load.
• 5 GHz Peak Turbo Frequency: Single-threaded performance-critical tasks — license plate recognition lookups, forensic search, event correlation — execute at up to 5 GHz on the Performance cores. That's the spec that determines UI responsiveness in real-world VMS operator use, not aggregate core count.
• 24 MB Intel Smart Cache: The large L3 cache reduces memory latency for working datasets that fit within it — relevant when running analytics models that repeatedly reference the same classification weights across many camera feeds.
• 32 GB Dual-Channel RAM: 32 GB provides comfortable headroom for running a full VMS client stack, multiple analytics plug-ins, and an OS simultaneously without paging. Dual-channel configuration ensures the memory subsystem doesn't bottleneck the i5-13600's bandwidth requirements.
• 65W Base / 154W Max Turbo Power Envelope: The processor's 65W base TDP keeps thermals and acoustics manageable in office and control-room environments. The 154W maximum turbo power draws down only during burst workloads — under sustained VMS streaming, real-world draw sits much closer to the base figure, which matters for UPS sizing and dense deployments.
• 9 lb Compact Chassis: At 9 lbs, the P3 Ultra ships and installs easily. The small-form-factor design fits under monitors, on equipment shelves, or in shallow wall-mount enclosures — useful for distributed surveillance nodes where a full tower is impractical.
• Commercial-Grade Build and Supply Chain: Manufactured in Mexico (country of origin MX), the 30HA003NUS sits within the North American commercial distribution channel — relevant for projects with domestic-sourcing requirements. Classified under UNSPSC 43211515 (personal computers/workstations) for procurement systems that require UNSPSC coding.

Integration and Compatibility

The ThinkStation P3 Ultra platform is designed for integration with professional video management software environments. The i5-13600's 20-thread profile supports concurrent client connections, live decoding of multiple high-resolution streams, and background analytics processing that modern VMS platforms demand. For deployments scaling beyond what a single P3 Ultra can handle, pair with a dedicated network video recorder and use the workstation purely as an operator client and analytics node — this architecture keeps the NVR's storage I/O separate from the operator's display workload.

The processor's Intel Quick Sync Video engine (integrated in the i5-13600's Intel UHD Graphics 770) provides hardware-accelerated H.264 and H.265 decode, reducing CPU load during multi-stream live view and playback in VMS clients that support hardware decode offload. This is worth confirming with your VMS vendor, as not all platforms expose Quick Sync acceleration equally.

Frequently Asked Questions

Q: What processor does the 30HA003NUS include?

A: The 30HA003NUS ships with an Intel Core i5-13600 — a 13th Gen hybrid processor with 6 Performance cores and 8 Efficient cores (14 cores, 20 threads total), boosting up to 5 GHz on Performance cores. Base TDP is 65W with a maximum turbo power of 154W.

Q: How much RAM does the ThinkStation P3 Ultra 30HA003NUS include?

A: The 30HA003NUS is configured with 32GB of RAM in a dual-channel configuration, providing strong multi-application throughput for VMS client, analytics, and OS workloads running concurrently.

Q: Is the 30HA003NUS suitable for running video management software?

A: Yes. The 14-core i5-13600 with 20 threads handles concurrent VMS streams, analytics processing, and operator UI without the resource contention common on lower-core-count workstations. The Intel UHD 770 integrated graphics also provides hardware H.264/H.265 decode acceleration for VMS platforms that support it.

Q: What is the weight and form factor of the ThinkStation P3 Ultra 30HA003NUS?

A: The unit weighs 9.00 lbs and uses a compact small-form-factor (SFF) chassis — suited for under-desk, shelf, or equipment-rack deployment where a full tower workstation is not practical.

Q: Where is the 30HA003NUS manufactured?

A: Country of origin is Mexico (MX), placing it within the North American commercial supply chain — relevant for projects with domestic or regional sourcing requirements.

Marty Allison

The spec I keep coming back to on the 30HA003NUS is the 154W maximum turbo power ceiling on the i5-13600 — that's the number that tells you this processor can actually burst hard when the VMS throws a spike load at it, without the thermal throttling you see on constrained mobile-class chips stuffed into compact chassis. At 9 lbs in a small-form-factor package, this is a legitimate operator workstation, not a repurposed mini-PC.

Technical Highlights:

• 14 Cores / 20 Threads: The P/E hybrid architecture (6 P-cores at up to 5 GHz, 8 E-cores at up to 3.7 GHz) is directly useful in VMS environments — P-cores handle decode and UI rendering while E-cores absorb background analytics and recording I/O without fighting for scheduler time.
• 24 MB Smart Cache: Large enough to hold working sets for multi-stream analytics inference in-cache, which reduces round-trips to system RAM and keeps frame processing latency consistent even when camera counts climb.
• 65W Base TDP: Sustained real-world draw is far below the 154W turbo ceiling — important when sizing UPS capacity for a control room with multiple operator stations. You're not planning around worst-case power on every machine, every minute.

Deployment Considerations:

• For surveillance-heavy VMS deployments: confirm your VMS client (Milestone, Genetec, Axis Camera Station, etc.) supports Intel Quick Sync hardware decode via the integrated UHD 770 — if it does, you reclaim significant CPU headroom for analytics when live-viewing high-resolution streams.
• The i5-13600 carries no discrete GPU in this configuration — if your deployment requires GPU-accelerated deep learning analytics (e.g., Nx Witness AI modules or Milestone DNN plugins), verify whether the integrated graphics satisfy the vendor's minimum requirements or plan for a GPU add-in card if the chassis supports it.

For distributed security operations centers deploying operator workstations at guard stations, dispatch desks, or remote monitoring hubs, the 30HA003NUS hits the right balance of compute density and physical footprint — enough processor to run a full VMS client plus analytics without demanding tower-class space or power infrastructure.
