Lenovo 30HA002XUS Thinkstation P3 Ultra I513600 32G X2

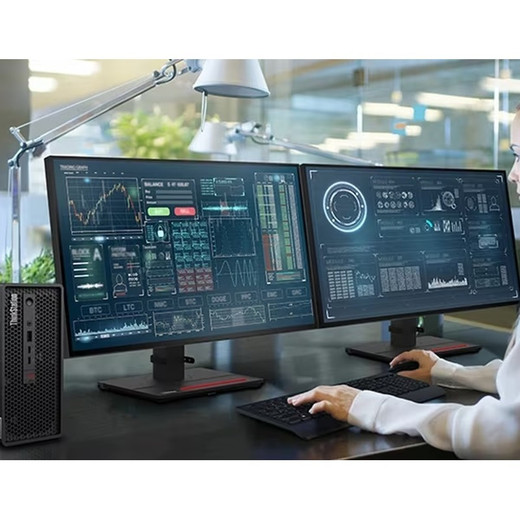

Lenovo 30HA002XUS ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA002XUS) is a compact professional workstation built around Intel's 13th Gen Core i5-13600 processor — a 14-core, 20-thread CPU that handles the parallel processing demands of multi-channel workstation deployments in security operations, surveillance command centers, and enterprise IT environments. Weighing in at 9.00 lb, the P3 Ultra fits the small-footprint brief without sacrificing the thermal headroom required for sustained workloads: the i5-13600 is rated at 65W base power with a 154W maximum turbo envelope, meaning it can sprint hard when the workload spikes and return to efficient baseline when idle. If you're evaluating Lenovo workstations for a VMS server, video wall controller, or analyst workstation role, the P3 Ultra's processor architecture is worth understanding in detail before you commit.

Key Features

• 14-Core / 20-Thread i5-13600 Processor: Intel's hybrid architecture pairs 6 Performance cores (P-cores) with 8 Efficient cores (E-cores) on a single die. P-cores handle latency-sensitive foreground tasks — decoding high-resolution streams, running analytics inference — while E-cores absorb background threads like logging, transcoding queues, and OS scheduling. The result is a processor that doesn't stall on mixed workloads the way a pure high-frequency 6-core would.
• 5 GHz P-Core Max Turbo Frequency: Individual P-cores boost to 5.0 GHz under single- and lightly-threaded load. For VMS software that serializes certain decode paths, or for interactive analyst workstations where UI responsiveness matters, this peak frequency keeps latency low without requiring a higher-tier processor SKU.
• 3.7 GHz E-Core Max Turbo / 2 GHz E-Core Base: The eight Efficient cores run background workloads at 2–3.7 GHz without competing with P-core thermal budget. In a 24/7 surveillance workstation running persistent background services (motion indexing, export queues, scheduled backups), this prevents background threads from crowding out foreground decode performance.
• 65W TDP Base / 154W Maximum Turbo Power: The 65W base TDP means the P3 Ultra can sustain this processor in a compact chassis without exotic cooling. The 154W turbo ceiling gives the processor room to burst when a sudden workload spike hits — such as a mass-export event or simultaneous stream connections from multiple VMS clients — before throttling back to the thermal baseline.
• 24MB Intel Smart Cache: The large L3 cache (24MB) reduces main-memory latency for frequently accessed data structures — frame buffers, analytics model weights, active stream metadata. In multi-stream decode scenarios, more cache typically translates to more consistent frame throughput compared to processors with smaller L3.
• 2.7 GHz P-Core Base Frequency: Even at base clock (no boost), P-cores run at 2.7 GHz — high enough to sustain continuous decoding of multiple 4K streams without depending on sustained turbo, which thermal conditions can limit in dense rack or confined-cabinet deployments.
• Single-Socket Design: One processor installed, which matches the architecture of most commercial VMS and video analytics platforms. Multi-socket workstations add NUMA complexity that VMS software rarely benefits from. The P3 Ultra keeps the topology simple and software-compatible.
• 9.00 lb Compact Form Factor: At 9 lb, this unit is rack-mountable or desk-deployable without requiring a full tower footprint. For security operations centers with limited rack space, or for deployments where the workstation ships to a remote site, the reduced weight and compact chassis simplify logistics.
• Manufactured in Mexico (Country of Origin: MX): MX origin is relevant if your procurement process has domestic- or North American-content requirements. Verify against your specific contract vehicle or compliance framework as needed.

Integration & Compatibility

The professional workstation segment for security and surveillance has consolidated around a handful of VMS platforms — Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wave, and Axis Camera Station among the most deployed. The i5-13600's hybrid core architecture is recognized by modern Windows schedulers and by VMS platforms compiled against current Intel threading libraries. For installations running GPU-accelerated analytics or AI-based video search, verify discrete GPU requirements with your VMS vendor before finalizing the configuration — the 30HA002XUS specification from source evidence does not confirm a discrete GPU, and analytics acceleration requirements vary significantly by platform and camera count.

For integrators building out a network video recorder stack or a dedicated decode workstation for a large-camera-count deployment, the P3 Ultra's processor thermal profile (65W base) makes it suitable for environments where UPS capacity and power circuit planning are tight. At maximum turbo (154W), budget the power supply and UPS accordingly — the CPU alone can draw close to a full 20A circuit's overhead allowance when combined with memory, storage, and peripheral loads.

This unit ships factory-new with channel-direct sourcing — no grey-market, no parallel imports. For workstation accessories including additional memory, storage, or display hardware, confirm compatibility against Lenovo's published QVL for the ThinkStation P3 Ultra platform before ordering.

Frequently Asked Questions

Q: What processor does the Lenovo 30HA002XUS include, and how many cores does it have?

A: The 30HA002XUS ships with an Intel Core i5-13600 (13th Gen), a 14-core / 20-thread processor using Intel's hybrid architecture — 6 Performance cores and 8 Efficient cores. The P-cores boost up to 5 GHz; the E-cores boost to 3.7 GHz.

Q: What is the thermal design power (TDP) of the i5-13600 in this workstation?

A: The i5-13600 has a base processor power of 65W and a maximum turbo power of 154W. Plan your power and cooling budget around the 154W ceiling for any workload that will sustain heavy multi-thread utilization.

Q: How much does the ThinkStation P3 Ultra 30HA002XUS weigh?

A: The unit weighs 9.00 lb per verified distribution data, making it suitable for desk, shelf, or rack-adjacent deployments where a full tower is impractical.

Q: Is the 30HA002XUS suitable for running VMS software like Milestone XProtect or Genetec Security Center?

A: The i5-13600's 14-core / 20-thread architecture and 5 GHz turbo capability handle multi-stream decode and concurrent VMS client connections well. However, confirm discrete GPU requirements with your VMS vendor if you need GPU-accelerated analytics — source evidence does not confirm a discrete GPU in this configuration.

Q: What is the processor cache size on the i5-13600 in the 30HA002XUS?

A: The i5-13600 includes 24MB Intel Smart Cache (L3), which helps sustain consistent throughput in multi-stream and data-intensive workloads by reducing main-memory latency.

Q: Where is the Lenovo 30HA002XUS manufactured?

A: Country of origin is Mexico (MX) per distribution source data. Verify against your procurement vehicle's domestic content requirements if applicable.

Marty Allison

The spec that stands out to me on the 30HA002XUS is the 154W maximum turbo power ceiling on the i5-13600. That gap between 65W base and 154W turbo is unusually wide for a compact workstation — it tells you Intel is letting this CPU sprint hard on burst workloads before the thermal governor steps in, which matters when you're running a VMS that suddenly needs to decode a high-camera-count event or push a large export batch.

Technical Highlights:

• Hybrid 14-Core Architecture (6P + 8E): The P-core / E-core split means the OS scheduler can isolate latency-sensitive VMS decode threads on the 5 GHz P-cores while E-cores absorb background daemons — a meaningful architectural advantage over older homogeneous-core designs for mixed workloads.
• 24MB Smart Cache: For multi-stream surveillance workstations, a larger L3 cache keeps active frame data and analytics model state closer to the cores, reducing the frequency of main-memory fetches that cause microstutter in high-concurrency decode paths.
• 65W Base TDP in a 9 lb Chassis: The combination of a 65W base envelope and compact form factor means this unit doesn't demand specialized rack cooling or oversized UPS allocation for steady-state operation — only the burst window requires the higher power budget.

Deployment Considerations:

• Size your UPS and power circuit to accommodate the 154W maximum turbo draw, not the 65W base — in a surveillance SOC where workstations run 24/7, peak power events are frequent enough that undersizing the UPS is a real operational risk.
• Source evidence does not confirm a discrete GPU for this SKU. If your VMS or video analytics platform requires GPU acceleration for AI-based search or real-time inference, verify the GPU configuration before ordering — do not assume it's included based on the product name alone.

The 30HA002XUS is well-positioned as a dedicated VMS client workstation or secondary decode station in a mid-to-large security operations center — specifically where a compact footprint, sustained multi-thread performance, and manageable thermal load matter more than raw peak throughput from a full tower workstation.
