Lenovo 30HA0024US ThinkStation P3 Ultra Intel Core I9-13900 vPro (E-cores Up to 4.20GHZ 36MB)

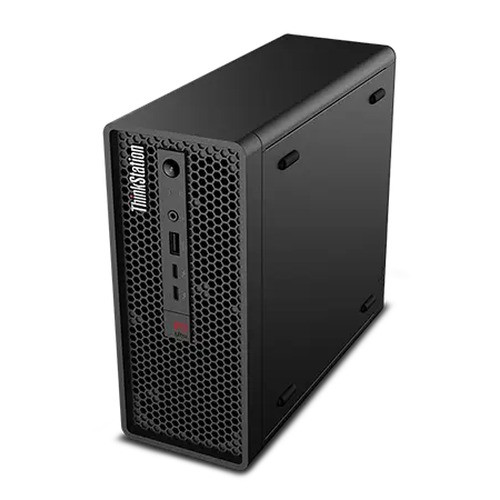

Lenovo 30HA0024US ThinkStation P3 Ultra Workstation

Overview

The Lenovo ThinkStation P3 Ultra 30HA0024US is a compact professional workstation built around the 24-core Intel Core i9-13900 vPro processor — a machine aimed squarely at integrators, VMS administrators, and security operations teams who need serious CPU headroom for simultaneous video decoding, analytics processing, or demanding compute workloads without a full tower footprint. At 13.70 lb and 19.50 x 11.70 x 8.50 inches, the P3 Ultra slots into rack-adjacent deployments, operator consoles, or control-room environments where space and sustained performance both matter.

Key Features

• Intel Core i9-13900 vPro (24 cores / 32 threads): The hybrid architecture splits duties between 8 Performance cores (up to 5.2 GHz turbo) and 16 Efficient cores (up to 4.2 GHz turbo). In practice this means the workstation handles multi-stream VMS decoding on the E-cores while the P-cores stay available for analytics inference or operator interaction — you get responsiveness under load rather than the single-tier throttling you'd see on older workstation CPUs. Boost peaks at 5.6 GHz for single-threaded spikes.
• 36 MB Intel Smart Cache: A large shared L3 cache reduces latency on repeated data access — relevant when a VMS platform is cycling through live and recorded stream metadata for dozens of cameras simultaneously. Less cache-miss penalty means the CPU stays closer to its rated throughput.
• 512 GB M.2 2280 PCIe Gen4 Performance TLC Opal SSD: Gen4 NVMe delivers roughly double the sequential throughput of Gen3 at the same form factor, which matters for fast OS load, application startup, and buffering recorded video locally. The Opal hardware-encryption capability allows full-disk encryption without software overhead — a compliance consideration for deployments subject to data-at-rest requirements.
• 16 GB DDR5 RAM: A functional starting point for many VMS and analytics workloads, though integrators running high-channel-count Milestone, Genetec, or Avigilon deployments should plan to expand. The platform supports additional memory; verify the specific expansion ceiling before specifying for large-scale deployments.
• Intel UHD Graphics 770: Integrated graphics handles operator displays and basic GPU-accelerated decode without a discrete card. For heavy GPU-accelerated analytics or multi-monitor 4K operator stations, a discrete add-in card is the appropriate upgrade path — the P3 Ultra form factor supports PCIe expansion.
• Wi-Fi 6E (Intel AX211) + Bluetooth 5.1: Wi-Fi 6E's 6 GHz band support means the workstation can connect to modern wireless infrastructure without competing with legacy 2.4/5 GHz congestion — useful in environments where wired drops to a workstation aren't practical. For fixed security operations centers, the PCIe and Ethernet interfaces remain the reliable primary path.
• Windows 11 Pro 64-bit: Ships with a production OS license — no additional OS procurement needed. vPro platform support adds hardware-level remote management capabilities for IT teams responsible for distributed workstation fleets.
• 13.70 lb / 19.50 x 11.70 x 8.50 in form factor: The P3 Ultra occupies a middle ground between a mini PC and a full tower. It fits on or under a desk, on a shelf in a security closet, or in a shallow rack with the appropriate mounting kit. Country of origin is Mexico.

Integration and Compatibility

The 30HA0024US connects via PCIe and Ethernet, covering the two primary integration paths for professional security and AV deployments. PCIe expansion accommodates capture cards, GPU upgrades, or additional NIC installations depending on the deployment scenario. Ethernet integration supports direct connection to managed switches, NVRs, and IP device networks. The vPro platform is broadly compatible with Intel-based remote management tools, which simplifies fleet management for IT organizations running mixed workstation environments. Wi-Fi 6E provides wireless fallback or primary connectivity where infrastructure supports it.

Frequently Asked Questions

Q: What processor is in the 30HA0024US and how many cores does it have?

A: The 30HA0024US ships with an Intel Core i9-13900 vPro processor featuring 24 cores (8 Performance cores + 16 Efficient cores) and 32 threads. Maximum boost frequency is 5.6 GHz; the Performance cores turbo to 5.2 GHz and the Efficient cores to 4.2 GHz.

Q: What storage does the 30HA0024US include, and is it encrypted?

A: It includes a 512 GB M.2 2280 PCIe Gen4 Performance TLC SSD with Opal hardware-encryption support, enabling full-disk encryption at the hardware level without CPU overhead — relevant for deployments with data-at-rest compliance requirements.

Q: What are the physical dimensions and weight of the 30HA0024US?

A: The unit measures 19.50 x 11.70 x 8.50 inches (L x W x H) and weighs 13.70 lb, making it a compact professional workstation suitable for desk, shelf, or rack-adjacent mounting.

Q: Does the 30HA0024US support wireless connectivity?

A: Yes. It includes an Intel Wi-Fi 6E AX211 adapter supporting the 6 GHz band, plus Bluetooth 5.1 or above. Wired Ethernet is also available for fixed deployments.

Q: What operating system ships with the 30HA0024US?

A: It ships with Windows 11 Pro 64-bit pre-installed, including a production license — no separate OS procurement required.

Q: Is the 30HA0024US expandable beyond the base configuration?

A: The platform supports PCIe expansion for discrete GPUs, capture cards, or additional NICs. RAM expansion is supported beyond the base 16 GB; verify the specific maximum capacity for your target deployment before specifying.

James Everett

The 30HA0024US is one of the more practical choices I've come across for a VMS workstation or security operations client station — specifically because the i9-13900's hybrid 24-core architecture means you're not burning P-core cycles on background decode tasks. The 16 E-cores absorb the sustained multi-stream work while the 8 P-cores stay responsive for operator interaction and analytics processing. That division of labor matters more than raw clock speed on long shifts.

Technical Highlights:

• 24-core hybrid CPU with 5.6 GHz peak boost: P-cores reach 5.2 GHz turbo for latency-sensitive tasks; E-cores handle concurrent decode at 4.2 GHz — 32 threads total means VMS platforms with thread-per-stream models have real headroom.
• PCIe Gen4 NVMe SSD with Opal encryption: Gen4 throughput keeps OS and application load fast; Opal hardware encryption satisfies data-at-rest requirements in government, healthcare, and financial deployments without the CPU tax of software encryption.
• vPro platform + Wi-Fi 6E: vPro enables out-of-band remote management for IT teams supporting distributed workstation fleets — useful if this unit is deployed at a remote site where on-site access is limited. Wi-Fi 6E on the AX211 avoids 5 GHz congestion on dense wireless networks.

Deployment Considerations:

• The 16 GB base RAM is workable for light-to-medium VMS deployments but plan to expand before specifying this unit for high-channel-count Milestone, Genetec, or Avigilon configurations — RAM is typically the first constraint on VMS client performance at 64+ camera views.
• Intel UHD Graphics 770 handles standard operator displays; if the deployment requires GPU-accelerated analytics inference or driving multiple 4K monitors simultaneously, budget for a discrete PCIe GPU — the P3 Ultra form factor supports it but the base SKU does not include one.

The P3 Ultra 30HA0024US is a strong fit for a security operations workstation in a space-constrained control room, a VMS server in a small-to-mid deployment, or an edge compute node in a distributed analytics architecture where you need vPro manageability and genuine multi-threaded CPU throughput without a full tower.
