Lenovo 30HA0021US ThinkStation P3 Ultra Intel Core I7-13700 vPro (E-cores Up to 4.10GHZ 30MB)

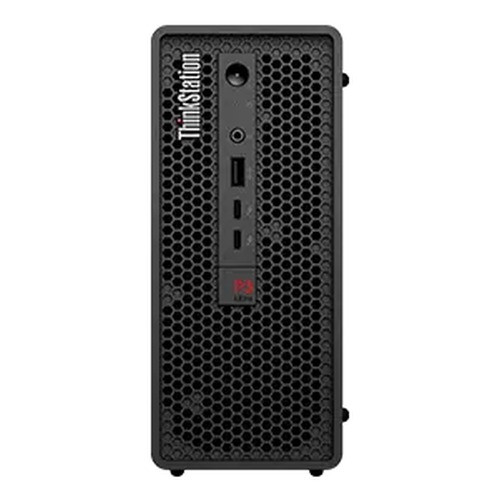

Lenovo 30HA0021US ThinkStation P3 Ultra Mini Workstation

Overview

The Lenovo ThinkStation P3 Ultra 30HA0021US is a compact commercial workstation built around Intel's 13th Gen Core i7-13700 processor — a 16-core, 24-thread chip that brings serious multi-application throughput to a small-form-factor chassis. For security integrators running VMS software, video analytics platforms, or command-center applications that demand sustained performance without a tower footprint, the P3 Ultra targets exactly that gap. With Wi-Fi 6E, Bluetooth 5.1, and Windows 11 Pro 64-bit pre-installed, it ships ready to commission on a managed enterprise network.

Key Features

• Intel Core i7-13700 (16 Cores / 24 Threads): Eight Performance cores boost to 5.1 GHz for single-threaded decode and UI responsiveness; eight Efficient cores handle background tasks up to 4.1 GHz — so a VMS client streaming 32+ channels won't starve the operator's other open applications. The 30 MB Smart Cache keeps frequently accessed video index data close to the processor, reducing latency spikes during playback scrubbing.
• 512 GB PCIe Gen4 NVMe SSD (M.2 2280, TLC, Opal): Gen4 sequential throughput roughly doubles what a Gen3 drive delivers — fast enough that loading a day's worth of recorded footage into a VMS timeline is nearly instantaneous. Opal self-encryption means the drive meets hardware-based encryption requirements for regulated environments without software overhead.
• 16 GB RAM, Expandable to 128 GB: 16 GB is workable for single-seat VMS clients, but the 128 GB ceiling matters for integrators deploying this as a multi-stream analytics node or running concurrent workloads. Upgrading RAM is the single highest-impact configuration choice before deployment.
• Intel UHD Graphics 770: The integrated GPU handles multi-monitor output and hardware-accelerated video decode — reducing CPU load during H.265 stream rendering. Not a replacement for a discrete GPU in AI-inference-heavy workloads, but sufficient for VMS display workstations driving two to four monitors.
• Wi-Fi 6E (Intel AX211): Tri-band 6 GHz support means this unit can connect to a dedicated 6 GHz wireless segment, keeping it off the congested 2.4/5 GHz bands in dense deployments. Useful for temporary command posts or installations where running Ethernet is impractical.
• Bluetooth 5.1: Supports wireless peripherals and short-range data transfer — relevant for deployments pairing barcode scanners, wireless headsets, or mobile credential readers to the workstation.
• Windows 11 Pro 64-bit: Pro licensing enables BitLocker, domain join, Remote Desktop, and Group Policy — all mandatory in enterprise and government security control rooms. No additional OS licensing cost to factor into the deployment budget.
• Intel vPro Platform: Out-of-band management via Intel AMT lets IT remotely power cycle, reimage, or troubleshoot the unit even when the OS is unresponsive — critical for unattended security server rooms and remote branch deployments.

Integration & Compatibility

Windows 11 Pro ensures broad VMS compatibility across Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wisenet WAVE, and most other enterprise platforms. Intel vPro enables integration with endpoint management tools such as Microsoft Endpoint Manager and Intel EMA. The PCIe Gen4 M.2 slot and up to 128 GB RAM headroom leave room to grow alongside expanding camera counts or analytic workloads without replacing the unit. For network-connected deployments, the AX211 Wi-Fi 6E adapter is also paired with Bluetooth 5.1, covering most peripheral connectivity scenarios without additional USB adapters.

Frequently Asked Questions

Q: What is the maximum RAM supported by the Lenovo ThinkStation P3 Ultra 30HA0021US?

A: The 30HA0021US supports up to 128 GB of internal memory, giving significant headroom beyond the 16 GB shipped configuration for multi-stream analytics or concurrent workloads.

Q: Does the 30HA0021US come with Windows 11 Pro pre-installed?

A: Yes. The unit ships with Windows 11 Pro 64-bit, which includes BitLocker, Remote Desktop, domain join, and Group Policy — essential for enterprise and government security environments.

Q: What processor does the ThinkStation P3 Ultra 30HA0021US use?

A: It uses the Intel Core i7-13700, a 13th Gen chip with 16 cores (8 Performance + 8 Efficient), 24 threads, and a Performance-core max turbo of 5.1 GHz.

Q: Is the storage drive in the 30HA0021US encrypted?

A: Yes. The 512 GB M.2 2280 PCIe Gen4 SSD includes Opal self-encryption, supporting hardware-based drive encryption without software performance penalties.

Q: Does the 30HA0021US support remote management?

A: Yes. The unit includes Intel vPro, which enables out-of-band management via Intel AMT — allowing remote power control, reimaging, and diagnostics even when the operating system is unresponsive.

Q: What wireless connectivity does the 30HA0021US include?

A: The unit ships with an Intel AX211 Wi-Fi 6E adapter (tri-band including 6 GHz) and Bluetooth 5.1, both integrated — no additional wireless hardware required.

Marty Allison

The 30HA0021US is one of the more interesting compact workstation configurations I've seen for security control room builds. The i7-13700's hybrid core architecture — 8 Performance cores hitting 5.1 GHz combined with 8 Efficient cores handling background threads — means VMS rendering and analytics processing share the chip without fighting each other for headroom. That's a real operational difference when an operator is simultaneously reviewing recorded footage, monitoring live feeds, and running a search query against the event database.

Technical Highlights:

• 16-Core / 24-Thread i7-13700: Performance cores at 5.1 GHz handle decoder-heavy VMS workloads; Efficient cores at up to 4.1 GHz manage OS and background tasks — workload separation is built into the silicon, not managed by software.
• PCIe Gen4 NVMe SSD with Opal Encryption: Gen4 bandwidth eliminates the I/O bottleneck that stalls older workstations during multi-camera playback; Opal hardware encryption satisfies FIPS and CJIS drive-security requirements without a software penalty.
• 128 GB RAM Ceiling: Starting at 16 GB is lean; plan to upgrade before deploying as a multi-stream analytics node. The ceiling means this unit can scale up without a hardware swap as camera counts grow.

Deployment Considerations:

• Intel vPro / AMT is a genuine asset for security installations in locked server rooms or remote branches — you can reimage or power-cycle the unit without dispatching a technician, which matters for 24/7 uptime requirements.
• The integrated Intel UHD 770 GPU handles hardware-accelerated H.265 decode, but if you're running deep learning inference directly on the workstation (license plate recognition, crowd analytics), budget for a discrete GPU — the integrated graphics will become the bottleneck before the CPU does.

This configuration makes the most sense as a VMS client workstation or lightweight server in a mid-sized security operations center — particularly where the small chassis form factor matters and vPro remote management removes the need for on-site IT for routine maintenance.
