Lenovo 30GS00HYUS ThinkStation P3 Tower Intel Core I714700 vPro Ecores Up to 4.20GHZ 33MB W11P64

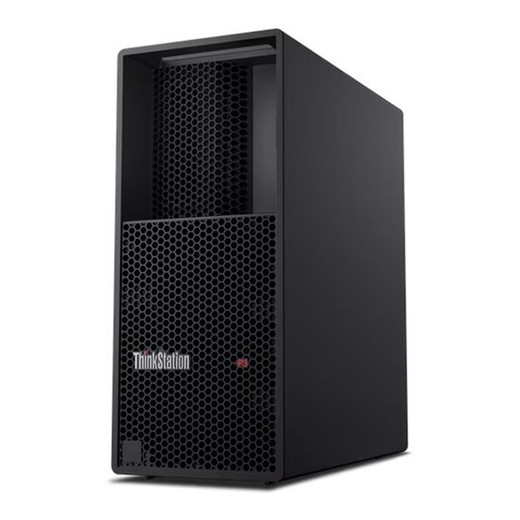

Lenovo 30GS00HYUS ThinkStation P3 Tower Workstation

Overview

The Lenovo ThinkStation P3 Tower 30GS00HYUS is a professional-grade tower workstation built around Intel's 20-core Core i7-14700 vPro processor and NVIDIA's RTX 2000 Ada Generation GPU — a configuration that targets demanding physical security, surveillance analytics, and enterprise visualization workloads where a consumer-grade desktop will fall short. At 9.0 lb in a standard tower form factor, it ships with Windows 11 Pro 64-bit, 32GB DDR5-4400 memory, a 1TB PCIe Gen4 NVMe SSD, and a three-year Premier Next Business Day service contract baked in.

For security operations centers, VMS servers, or forensic review stations handling high-channel IP video, the 30GS00HYUS brings together a validated enterprise platform with substantial headroom for expansion — 128GB maximum memory across four DIMM slots, and GPU-accelerated decoding that takes the burden off CPU cores when you're running dozens of simultaneous streams.

Key Features

• Intel Core i7-14700 vPro (20 Cores / 28 Threads, up to 5.3 GHz Boost): The 14700 combines 8 Performance cores and 12 Efficiency cores across 28 threads, with a 2.1 GHz base and 5.3 GHz maximum boost. For VMS platforms like Milestone XProtect or Genetec Security Center, this means the OS, database, recording engine, and analytics processes each get dedicated thread capacity rather than competing on a 4- or 8-core platform. vPro also unlocks Intel AMT for out-of-band remote management — useful for managing deployed SOC machines without requiring physical access.
• 32GB DDR5-4400 (Expandable to 128GB, 4x DIMM): DDR5 at 4400 MHz delivers substantially higher memory bandwidth than DDR4-based predecessors, which matters when a VMS is simultaneously recording, buffering, and serving live streams. The single 32GB module means three slots remain open — you can scale to 64, 96, or 128GB without pulling existing RAM, which is the right architecture for a platform you expect to grow into.
• 1TB PCIe Gen4 NVMe SSD (M.2 2280, TLC Opal): PCIe Gen4 sequential reads are typically in the 5,000–7,000 MB/s range — fast enough that the storage subsystem won't be your bottleneck during simultaneous multi-stream write and playback. The Opal self-encrypting drive capability meets hardware-based encryption requirements for compliance-sensitive deployments (healthcare, finance, government) without imposing software encryption overhead.
• NVIDIA RTX 2000 Ada Generation 16GB: The Ada Lovelace architecture brings hardware-accelerated video decoding for H.264 and H.265, which is the critical specification for high-channel surveillance workstations. Offloading decode to the GPU frees the i7-14700's cores for analytics, recording, and OS tasks. The 16GB VRAM capacity also supports multi-monitor video walls — four to six simultaneous display outputs for operator consoles or alarm monitoring stations.
• Intel AX211 Wi-Fi 6E + Bluetooth 5.3 (vPro): Dual wireless connectivity is standard, though most enterprise deployments will wire to the local network. BT 5.3 is the relevant spec for peripherals and future-proofing. The AX211 is a vPro-class module, so Intel AMT wireless management is supported if needed.
• 1100W Power Supply: The 1100W PSU provides headroom for GPU-intensive workloads and future GPU or storage expansion without supply constraints. This is not a spec to overlook — undersized PSUs are a common failure point when workstations are upgraded post-deployment with additional cards or drives.
• Tower Form Factor, 9.0 lb: Rack-mount isn't required here. The tower configuration slots into under-desk or equipment-room deployments without requiring rack space or rail hardware. At 9.0 lb, it's portable enough to redeploy or service on-site.
• 3-Year Premier NBD Service: Next Business Day on-site service is included from the factory — not an add-on. For enterprise deployments where a failed workstation means a down recording station, this is the correct service tier. Verify your specific site's NBD coverage area at procurement.

Integration and Compatibility

The 30GS00HYUS connects via PCIe, USB, and Ethernet as primary interfaces, covering standard peripherals, IP network drops, and internal expansion cards. The vPro platform aligns with enterprise IT management frameworks (Intel AMT, Microsoft MECM), and Windows 11 Pro 64-bit is the supported OS out of the box — compatible with all major surveillance workstations and VMS platforms. The RTX 2000 Ada supports NVIDIA's NVDEC hardware decode engine, which is recognized by Milestone, Genetec, Axis Camera Station, and Hanwha Wave for GPU-accelerated rendering. PCIe expansion slots allow the addition of capture cards, additional NIC ports, or storage controllers depending on deployment requirements. For high-channel network video recorders and VMS server configurations, pair with a PoE switch infrastructure and adequate storage expansion — the base 1TB SSD is appropriate for OS and application hosting, not raw video retention at scale. Consult your VMS software vendor's hardware sizing guide for channel-count-specific storage and CPU recommendations.

Frequently Asked Questions

Q: How many memory slots does the 30GS00HYUS have, and what is the maximum RAM?

A: The 30GS00HYUS ships with 4x DIMM slots and one 32GB DDR5-4400 module installed. Maximum supported memory is 128GB, leaving three open slots for future expansion without pulling existing RAM.

Q: Does the 30GS00HYUS support hardware-accelerated video decoding for surveillance VMS platforms?

A: Yes. The NVIDIA RTX 2000 Ada Generation GPU (16GB) includes hardware H.264 and H.265 decode via NVIDIA NVDEC, which is recognized by major VMS platforms including Milestone XProtect, Genetec Security Center, and Axis Camera Station for GPU-offloaded stream decoding.

Q: What operating system does the 30GS00HYUS ship with?

A: The 30GS00HYUS ships with Windows 11 Pro 64-bit (English).

Q: What storage is included, and can it be expanded?

A: The unit ships with one 1TB PCIe Gen4 NVMe SSD (M.2 2280, TLC, Opal self-encrypting). Additional storage can be added via available M.2 and PCIe slots; for high-channel video retention, supplemental storage expansion is recommended.

Q: What service contract is included with the 30GS00HYUS?

A: A 3-Year Lenovo Premier Next Business Day on-site service contract is included from the factory.

Q: Does the 30GS00HYUS support Intel vPro for remote management?

A: Yes. The Intel Core i7-14700 vPro processor and Intel AX211 vPro wireless module both support Intel AMT (Active Management Technology) for out-of-band remote management, useful for enterprise IT operations.

Eden Phillips

The 30GS00HYUS is a workstation I'd specify for a mid-to-large VMS deployment where the operator console, recording engine, and analytics processing all live on the same machine — the 20-core i7-14700 vPro with 28 threads gives you enough parallelism to avoid the thread-starvation you'll hit on a 6- or 8-core platform once channel counts climb past 32. The RTX 2000 Ada's hardware decode is the spec that actually matters for sustained multi-stream surveillance workloads.

Technical Highlights:

• i7-14700 vPro (5.3 GHz boost, 28 threads): vPro isn't just a marketing tier — Intel AMT gives IT remote power-cycle and BIOS-level access even when the OS is unresponsive, which matters for unattended SOC deployments where physical access isn't always fast.
• RTX 2000 Ada 16GB: 16GB VRAM is the threshold where you can drive a 4–6 monitor video wall for operator consoles while simultaneously handling decode for 64+ camera streams without running out of VRAM and forcing fallback to software decode.
• DDR5-4400, expandable to 128GB: The single-module configuration means you're not locked in — three open DIMM slots let you double or quadruple RAM post-deployment as analytics workloads or channel counts grow, without the cost of replacing populated modules.

Deployment Considerations:

• The 1TB PCIe Gen4 SSD is appropriate for the OS, VMS application, and database hosting, but not for raw video retention at scale. Plan separate NAS or DAS storage for any deployment retaining more than a few days of multi-camera footage.
• The 1100W PSU provides expansion headroom, but verify your rack or under-desk power circuit can sustain the load — the RTX 2000 Ada and i7-14700 under full decode/render load will draw meaningfully more than a standard office workstation.

This machine fits a security operations center analyst station or a standalone VMS server for a mid-size commercial site — up to roughly 64 cameras with GPU-accelerated decode, running Milestone, Genetec, or Axis Camera Station on a platform that IT can manage remotely via vPro without dispatching a technician.
