Lenovo 30GS00E7US ThinkStation P3 Tower Intel Core I714700 vPro Ecores Up to 4.20GHZ 33MB Windows

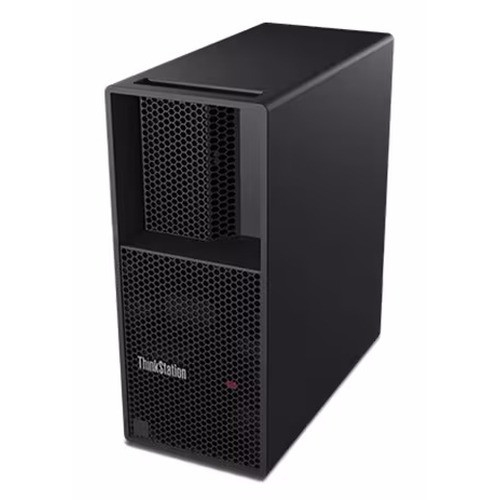

Lenovo 30GS00E7US ThinkStation P3 Tower Workstation

The Lenovo ThinkStation P3 Tower (30GS00E7US) is a mid-range commercial workstation built around Intel's 20-core Core i7-14700 vPro processor — a platform that handles concurrent VMS decode, analytics processing, and remote management workloads without saturating under load. At 9 lb in a standard tower chassis, it fits under a desk or on a rack shelf in a control room without dedicated enclosure hardware. If you're deploying a surveillance workstation or VMS server in a mid-size installation, this is a capable starting point with room to grow.

Key Features

• Intel Core i7-14700 vPro (20 cores / 28 threads, up to 5.3 GHz boost): The hybrid 20-core layout — 8 P-cores plus 12 E-cores — gives you sustained multi-threaded throughput for decoding dozens of simultaneous camera streams while leaving headroom for analytics tasks. The 5.3 GHz single-core boost matters for latency-sensitive operations like live playback and alarm response in your VMS.
• Intel vPro platform with AX211 Wi-Fi: vPro enables out-of-band remote management (Intel AMT) — you can reboot, re-image, or diagnose the machine remotely even if the OS is unresponsive. In unmanned equipment rooms or remote branch offices, this eliminates costly truck rolls for what would otherwise be a physical intervention.
• 32 GB DDR5-4400 (1 of 4 DIMM slots populated, expandable to 128 GB): DDR5-4400 delivers roughly 1.5× the peak bandwidth of DDR4-3200 — relevant when the CPU is feeding a GPU decode pipeline or running in-memory analytics. With three open DIMM slots, you can scale to 128 GB without replacing existing modules, which matters if workload requirements expand after initial deployment.
• 1 TB PCIe Gen4 NVMe SSD (M.2 2280 TLC Opal): PCIe Gen4 sequential reads typically exceed 5,000 MB/s — fast enough that storage is not the bottleneck when exporting large video clips or running forensic search across recordings. The Opal self-encrypting drive (SED) support means you can enable hardware-level full-disk encryption without CPU overhead, a checkbox item for many enterprise security deployments.
• Windows 11 Pro 64-bit: Ships with a full commercial OS license — no downgrade rights negotiation, no OEM home edition to contend with. Windows 11 Pro includes BitLocker, Hyper-V, and domain join out of the box, which are prerequisites for most enterprise VMS and access control server deployments.
• PCIe expansion + USB + Ethernet interfaces: The open PCIe slots let you add a dedicated GPU for accelerated video decode (critical once you exceed roughly 30–40 HD streams in software decode), a 10GbE NIC for high-bandwidth camera networks, or a capture card. USB and Ethernet provide standard peripheral and network connectivity for day-one operation.
• Bluetooth 5.1: Not a primary feature in a wired control room, but useful during commissioning for wireless keyboard/mouse without occupying USB ports, and for Bluetooth-based proximity access control integrations on the same machine.
• No optical drive: Expected on a commercial workstation in 2024. Deployment via USB or network imaging; if your site has a legacy requirement for optical media, plan for an external drive — the PCIe and USB interfaces accommodate one.

Integration and Compatibility

The 30GS00E7US runs Windows 11 Pro, which is supported by all major video management software platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet Wave. The Intel vPro / AX211 chipset supports Intel AMT for remote KVM and out-of-band management, integrating with enterprise endpoint management platforms such as Microsoft Endpoint Manager and Intel EMA. The open PCIe architecture makes this platform compatible with NVIDIA or AMD professional GPU cards for hardware-accelerated H.265/H.264 decode — pair with a network video recorder or direct-to-server VMS architecture depending on your storage topology. For larger deployments requiring centralized storage, the PCIe interface supports NVMe expansion cards or direct-attach storage adapters. The Opal SED capability on the primary drive is compatible with eDrive / IEEE 1667 management via Windows BitLocker Drive Encryption.

Integrators deploying this workstation as a VMS server should verify GPU decode card compatibility with the chosen VMS version — most major platforms publish validated GPU lists. With 32 GB of DDR5 installed and three open slots, the platform scales to handle expanding channel counts without chassis replacement. Review the workstation selection guide for channel-count-to-CPU benchmarks if you're sizing for a specific stream count.

Frequently Asked Questions

Q: What is the warranty on the Lenovo ThinkStation P3 Tower 30GS00E7US?

A: The 30GS00E7US includes a 3-Year Premier Next Business Day (NBD) on-site warranty from Lenovo.

Q: How much RAM can the ThinkStation P3 Tower support, and how many slots are available?

A: The system ships with 32 GB DDR5-4400 installed in one of four DIMM slots, with a maximum supported capacity of 128 GB. The three open slots allow incremental upgrades without replacing the existing module.

Q: Does the 30GS00E7US support remote out-of-band management?

A: Yes. The Intel vPro platform with Intel AX211 vPro includes Intel Active Management Technology (AMT), which supports remote KVM, power control, and re-imaging independent of the operating system state.

Q: Is the storage drive encrypted?

A: The 1 TB M.2 SSD is an Opal self-encrypting drive (SED), supporting hardware-level full-disk encryption. When managed via Windows BitLocker with eDrive, encryption runs in hardware with no measurable CPU overhead.

Q: Can I add a dedicated GPU for accelerated video decode?

A: Yes. The tower chassis includes PCIe slots for adding a discrete GPU. Most enterprise VMS platforms support NVIDIA or AMD GPU-accelerated decode — check your VMS vendor's validated hardware list for specific card recommendations.

Q: Does the ThinkStation P3 Tower have an optical drive?

A: No. The 30GS00E7US does not include an optical drive. Deployment and imaging are handled via USB or network boot.

James Everett

The 30GS00E7US is one of the more practical mid-tier workstation choices I've seen for VMS server deployments where the channel count sits in the 32–64 range. The i7-14700's 20-core hybrid layout handles concurrent decode and analytics without the licensing cost jump you'd pay for a Xeon-based platform, and the DDR5-4400 memory bandwidth keeps the GPU decode pipeline fed even when you're running forensic search simultaneously.

Technical Highlights:

• i7-14700 vPro — 20 cores / 28 threads at up to 5.3 GHz: The E-core cluster absorbs background tasks (indexing, transcoding, remote management agents) so the P-cores stay available for latency-sensitive decode and alarm response. In practice this means fewer dropped frames during peak alert periods.
• DDR5-4400, 4 DIMM slots, 128 GB max: Starting at 32 GB with three open slots is the right configuration for a grow-in-place workstation. You're not forced to buy memory you don't need today, but the ceiling is high enough to accommodate expanding VMS deployments without a hardware refresh.
• PCIe Gen4 NVMe + Opal SED: Sequential read speeds above 5,000 MB/s eliminate the storage bottleneck for forensic clip export and concurrent stream recording. The Opal hardware encryption means you can satisfy data-at-rest compliance requirements without touching CPU performance.

Deployment Considerations:

• For software-decode VMS deployments above roughly 40 simultaneous HD streams, plan to populate a PCIe GPU slot — the integrated Intel graphics on the i7-14700 will saturate before the CPU does. Budget for a validated GPU at time of purchase rather than retrofitting later.
• The system ships with one 32 GB DIMM. If your VMS platform recommends dual-channel memory for performance, add a second matched 32 GB module at deployment — single-channel DDR5 leaves bandwidth on the table compared to dual-channel configuration.

This workstation is best positioned as a dedicated VMS server or operator workstation in a mid-size installation (retail chain, corporate campus, municipal facility) where vPro remote management reduces the cost of supporting an unstaffed equipment room and the PCIe expandability gives the platform a 4–6 year runway without chassis replacement.
