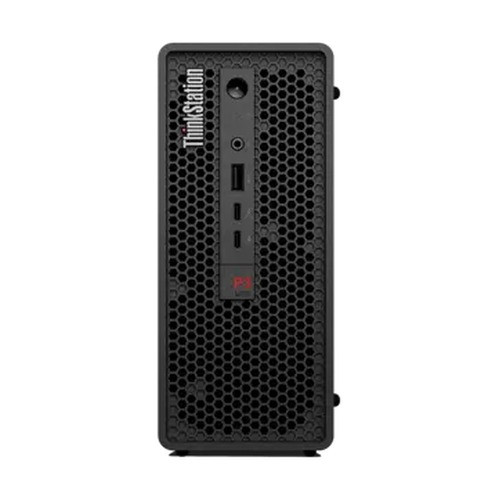

Lenovo 30GA00A3US Thinkstation P5 W52455X 16G X4 W11PWS

Lenovo 30GA00A3US ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA00A3US) is a professional tower workstation built around Intel's Xeon W5-2455X processor — the right platform when you need validated multi-core throughput, ECC-capable DDR5 memory headroom, and a chassis that can grow with your compute demands. This configuration ships with 64 GB of DDR5-4800 RAM across four DIMM slots, a 1 TB NVMe SSD, and Windows 11 Pro for Workstations, making it ready to deploy for professional workstation workloads from day one.

If you're sizing a video surveillance server, a VMS host, or a heavy analytics workstation, the P5 sits in Lenovo's single-socket Xeon W series — above consumer-grade tower PCs, below the dual-socket P7. It's the appropriate choice when one processor socket is sufficient but you need ISV certifications, ECC memory, and a validated platform rather than a gaming PC dressed up in a server role.

Key Features

• Intel Xeon W5-2455X — 12 cores, 24 threads at up to 4.6 GHz: The W5-2455X is a workstation-class processor, not a desktop chip. You get 24 logical threads for parallel workloads — video analytics, simulation, rendering — and a 4.6 GHz boost clock that keeps single-threaded tasks snappy. For VMS platforms that mix live decode with analytics inference, the thread count matters as much as the clock speed.
• 64 GB DDR5-4800 in a 4×16 GB configuration across 8 DIMM slots: Shipping with four of eight DIMM slots populated means you have direct expansion path to 512 GB without pulling existing modules — just add DIMMs. DDR5-4800 delivers roughly double the bandwidth of DDR4-3200, which translates to faster frame buffering on high-channel-count recording servers and faster dataset loads for analytics workloads. The 512 GB ceiling supports in-memory databases and large AI model inference tasks that would exhaust consumer platforms entirely.
• 1 TB NVMe SSD as primary storage: A solid-state primary drive eliminates the boot and OS latency of spinning media — the OS, VMS application, and configuration databases load quickly. For bulk video retention, you'll pair this with additional storage (network-attached or internal HDDs depending on your bay availability); the SSD handles the system tier while spinning drives or NAS handle archive.
• Windows 11 Pro for Workstations: Not standard Windows 11 Pro — the Workstations edition adds ReFS file system support, persistent memory support, and higher RAM ceilings than the standard Pro license. This is the correct OS tier for Xeon W processors and matters if you're deploying ISV-certified VMS software that validates the OS edition during installation.
• Single-socket Xeon W platform with ISV certification heritage: ThinkStation platforms carry ISV certifications from major professional software vendors. If your VMS, analytics, or simulation software requires a validated hardware configuration — rather than a self-certified desktop build — the P5 platform is designed for that use case.
• 9 lb chassis weight: At 9 lb, this is a tower form factor deployable under a desk or in a wiring closet alongside network gear — not rack-mounted. If your deployment requires rack integration, plan for a shelf or consider whether a rack-optimized chassis fits better.

Integration and Compatibility

The ThinkStation P5 runs Windows 11 Pro for Workstations, which is compatible with all major VMS platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet WAVE. The Xeon W5-2455X is supported by ISV certification programs for professional applications. GPU expansion is available via PCIe slots for AI inference acceleration — verify your GPU's power and slot requirements against the P5's configuration before ordering.

For deployments pairing this workstation with IP camera systems or network video recorders, the P5's 64 GB starting memory and 12-core Xeon handle concurrent decode and analytics streams that would saturate consumer-grade systems. Expansion to 128 GB or beyond via the remaining four DIMM slots is straightforward when channel counts grow. Pair with a managed PoE network switch to complete the infrastructure stack.

Frequently Asked Questions

Q: Can the 30GA00A3US be expanded beyond 64 GB of RAM?

A: Yes. The ThinkStation P5 30GA00A3US ships with 4×16 GB DDR5-4800 DIMMs installed across 4 of the 8 available DIMM slots. The platform supports up to 512 GB of RAM total, so you can add additional DDR5 ECC DIMMs without replacing the existing modules.

Q: Does the 30GA00A3US include an optical drive?

A: No. This configuration does not include an optical drive. OS installation media and software should be delivered via USB or network deployment.

Q: Is the 30GA00A3US a rack-mount or tower form factor?

A: Tower form factor. At 9 lb, it's designed for under-desk or wiring-closet placement. It is not designed for rack mounting without an aftermarket shelf or rail kit.

Q: What operating system ships with the 30GA00A3US?

A: Windows 11 Pro for Workstations — not standard Windows 11 Pro. The Workstations edition supports higher memory ceilings, ReFS, and is the correct license tier for Xeon W-series processors.

Q: Is the 30GA00A3US suitable as a VMS server for multi-camera deployments?

A: The 12-core Xeon W5-2455X and 64 GB DDR5-4800 make it a capable VMS host for mid-to-large channel counts. Actual capacity depends on resolution, codec, analytics load, and VMS platform. Consult your VMS vendor's server sizing guide and scale memory using the available DIMM slots as channel count grows.

Q: What is the primary storage configuration on the 30GA00A3US?

A: One 1 TB SSD is installed as primary storage. For high-volume video retention, supplemental storage — additional internal drives or network-attached storage — will be required alongside the SSD system drive.

Eden Phillips

The spec that stands out most on the 30GA00A3US is the memory architecture: 64 GB of DDR5-4800 across only four of eight DIMM slots. That's not a budget compromise — it's deliberate headroom. Most VMS deployments start at 32–64 GB and need 128 GB within 18 months as channel counts grow or analytics modules get added. With the P5, you add DIMMs rather than replace them, which keeps the expansion cost rational.

Technical Highlights:

• Xeon W5-2455X (12C/24T, 4.6 GHz boost): Workstation-class ISV certification is built into the platform — not bolted on. For VMS platforms that validate hardware during installation, the Xeon W designation matters. The 4.6 GHz single-core boost keeps UI-heavy VMS clients responsive even under full record load.
• DDR5-4800 at 512 GB ceiling: The bandwidth jump from DDR4 to DDR5 is material for simultaneous multi-stream decode. Running 64+ camera channels at 4K H.265 involves sustained memory throughput — DDR5's roughly 2× bandwidth over DDR4-3200 reduces the likelihood of memory becoming the bottleneck before CPU does.
• 1 TB NVMe SSD — system tier only: The SSD handles OS, VMS application, and configuration. It is not sized for video retention. Any deployment expecting more than a few hours of local retention needs supplemental storage planned before the unit ships to site.

Deployment Considerations:

• Tower chassis at 9 lb means this goes under a desk or on a shelf — not in a rack. If the head-end room is a server rack, price in a rackmount shelf or evaluate whether a rack-optimized alternative fits the environment better before committing.
• No optical drive is present. If your VMS or OS deployment process relies on physical media, have a USB-based deployment method ready before the unit arrives on site.

The 30GA00A3US is the right fit for a mid-to-large VMS head-end workstation in a physical security operations center or a professional AV/surveillance control room — specifically where the integrator needs ISV-validated hardware, expects to scale memory as the project grows, and is deploying in a non-rack environment.
