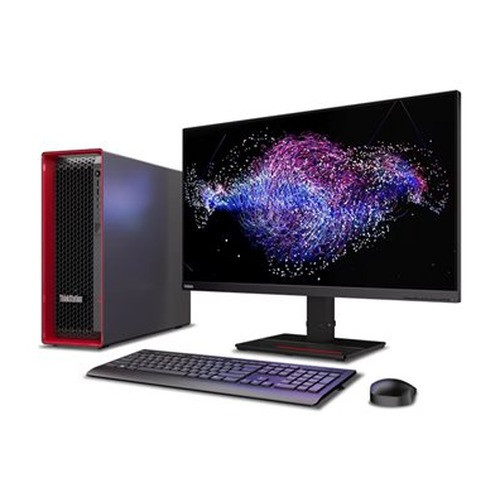

Lenovo 30GA005XUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA005XUS) is a tower workstation built around Intel's Xeon w5-2455X — a 12-core, 24-thread processor from the Sapphire Rapids-W generation that targets demanding single-threaded and multi-threaded workloads simultaneously. With a 3.2 GHz base clock that boosts to 4.6 GHz under load, this configuration handles the kind of mixed real-time and batch processing that trips up consumer-grade hardware: concurrent VMS decoding streams, large CAD assemblies, simulation preprocessing, or video encoding pipelines. If you're evaluating Lenovo workstations for a professional environment and need Xeon-class ECC memory support at DDR5 speeds, this is the configuration to compare against.

Key Features

• Intel Xeon w5-2455X — 12 Cores / 24 Threads: The Xeon w5-2455X delivers 24 logical threads at 3.2 GHz base with a 4.6 GHz single-core boost — enough headroom to run a multi-channel VMS server, a simulation solver, or a rendering node without thread starvation. Unlike consumer Core i9 chips, the Xeon W line supports ECC memory, which matters in 24/7 unattended deployments where a silent memory error could corrupt a recording or crash a process.
• 64 GB DDR5-SDRAM Installed: DDR5 delivers roughly double the memory bandwidth of DDR4 at equivalent clock speeds. The 64 GB installed capacity handles large VMS databases, high-resolution CAD models, and multi-stream media workloads without paging. For teams running Milestone XProtect, Genetec Security Center, or similar VMS platforms alongside a SQL backend, 64 GB provides comfortable headroom for concurrent recording and analytics workloads.
• 512 GB Maximum Memory: The platform supports up to 512 GB of DDR5-SDRAM — relevant for organizations that anticipate workload growth. You can start at 64 GB and expand without replacing the workstation chassis or motherboard. This is the key reason to pick a Xeon W platform over a consumer desktop for a mission-critical server role.
• PCIe 5.0 and PCIe 4.0 Expansion Slots: PCIe 5.0 doubles the per-lane bandwidth of PCIe 4.0. That translates directly to faster NVMe storage throughput (up to ~14 GB/s on PCIe 5.0 SSDs) and higher GPU data rates for AI inference or video analytics acceleration. Having both generations available gives you flexibility to mix current-gen and next-gen cards without bottlenecking the bus.
• LGA 4677 (Socket E) Platform: The Socket E platform is Intel's professional workstation socket for the Xeon W-2400 and W-3400 families. Choosing a Socket E system means you're on a platform with a defined upgrade and support lifecycle — not a consumer platform that gets recycled every two years. For deployments where hardware lifecycle predictability matters (government, healthcare, financial), this is a meaningful consideration.
• 200W Base TDP / 240W Maximum Turbo Power: The w5-2455X runs at 200W sustained and can draw up to 240W in turbo burst. The ThinkStation P5 chassis and power delivery are engineered for this thermal envelope — you're not running a 200W processor in a chassis designed for 65W. This matters when the system is under continuous load (24/7 VMS recording, overnight rendering), where thermal throttling in an undersized chassis would degrade performance silently.
• Windows 11 Pro for Workstations: The 30GA005XUS ships with Windows 11 Pro for Workstations, which includes ReFS file system support, persistent memory support, and higher RAM ceilings than standard Windows 11 Pro. This OS tier is the right match for the Xeon W processor and is required for some enterprise VMS and CAD software licensing tiers.

Integration & Compatibility

The ThinkStation P5 is a standard tower workstation with PCIe 5.0 and 4.0 expansion, making it compatible with a broad range of professional GPU cards (NVIDIA RTX Ada, Quadro), capture cards, and NVMe storage. For network video recorder and VMS server roles, the platform supports high-channel Milestone, Genetec, Axis Camera Station, and Hanwha Wisenet WAVE deployments — provided you add appropriate storage. The PCIe 5.0 slot is the correct home for a high-throughput NVMe array or a RAID controller feeding surveillance-grade HDDs. Pair this workstation with a managed PoE switch if you're building a complete IP camera server environment, and consult your workstation selection guide to match channel count to processor thread count. The system weight of 9.00 lb is notably light for a full tower, confirming the base configuration ships without heavy storage or multi-GPU loading — budget for surveillance-rated hard drives and a discrete GPU appropriate to your analytics workload.

Frequently Asked Questions

Q: What processor does the 30GA005XUS use, and how does it compare to a consumer Core i9?

A: The 30GA005XUS uses the Intel Xeon w5-2455X — a 12-core, 24-thread Sapphire Rapids-W processor with a 3.2 GHz base and 4.6 GHz boost. Unlike Core i9 chips, the Xeon W supports ECC (error-correcting) memory, which eliminates silent data corruption in 24/7 workloads. It also supports up to 512 GB of DDR5 RAM, far beyond consumer platform limits.

Q: How much memory does the 30GA005XUS come with, and can it be expanded?

A: The system ships with 64 GB of DDR5-SDRAM installed. The platform supports up to 512 GB maximum, so there is significant room to expand as workloads grow — without replacing the chassis or motherboard.

Q: What PCIe generations does the 30GA005XUS support?

A: The ThinkStation P5 provides both PCIe 5.0 and PCIe 4.0 slots. PCIe 5.0 supports the latest NVMe SSDs and GPU cards at up to double the bandwidth of PCIe 4.0, while PCIe 4.0 slots accommodate a wide range of current professional expansion cards.

Q: Is the 30GA005XUS suitable for use as a VMS server or NVR host?

A: Yes. The 12-core Xeon w5-2455X with 64 GB DDR5 and PCIe 5.0 expansion is well-suited for multi-channel VMS deployments (Milestone XProtect, Genetec Security Center, Axis Camera Station). You will need to add surveillance-rated storage and a GPU appropriate to your analytics workload — the base configuration focuses on compute and memory.

Q: What operating system is included with the 30GA005XUS?

A: The 30GA005XUS ships with Windows 11 Pro for Workstations, which is specifically designed to complement Xeon W processors and supports features like ReFS, higher RAM ceilings, and enterprise management tools not available in standard Windows 11 Pro.

Q: What is the processor's thermal design power (TDP) for the 30GA005XUS?

A: The Intel Xeon w5-2455X has a 200W base processor power with a maximum turbo power of 240W. The ThinkStation P5 chassis is engineered to handle this thermal envelope for sustained, continuous workloads — relevant for 24/7 server-style operation.

Ted Perry

When I look at the 30GA005XUS, the spec that anchors this platform is the Xeon w5-2455X's 512 GB DDR5 memory ceiling — a hard limit that separates this from every consumer workstation on the market and makes it the right chassis for a VMS deployment that you expect to grow over a three-to-five year lifecycle without re-platforming.

Technical Highlights:

• 4.6 GHz Single-Core Boost: In VMS environments, decode latency and UI responsiveness track with single-core speed, not just thread count. The w5-2455X's 4.6 GHz boost means the operator interface stays snappy even while the system is grinding through background recording and analytics tasks across all 24 threads.
• DDR5-SDRAM Bandwidth: DDR5 roughly doubles the memory bandwidth of DDR4. For a multi-channel VMS server doing concurrent H.265 decode, this bandwidth headroom matters — you won't see memory bus saturation at channel counts where a DDR4 platform would already be struggling.
• PCIe 5.0 Slot: A PCIe 5.0 NVMe drive can sustain over 12 GB/s sequential reads — enough to handle high-bitrate playback and simultaneous recording on dozens of channels from local storage without the drive becoming the bottleneck.

Deployment Considerations:

• The base 9.00 lb weight tells you the system ships with minimal storage and no discrete GPU — budget for surveillance-rated HDDs and a professional GPU (or video analytics accelerator card) before deploying in a production VMS role.
• The 200W–240W Xeon TDP requires stable, clean power delivery. If this system is going into a rack or server room shared with other high-draw equipment, verify your UPS sizing and branch circuit capacity before commissioning — thermal throttling at 240W on an undersized circuit is a hard-to-diagnose performance problem in the field.

The 30GA005XUS is the correct pick for a physical security operations center or enterprise VMS server room where a single workstation needs to host multi-channel recording, analytics, and operator UI concurrently — and where the hardware investment needs to remain viable for four or more years of workload growth.
