Lenovo 30F3004GUS Thinkstation P7 W53423 16G X4 W11PWS

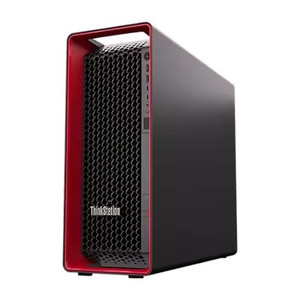

Lenovo 30F3004GUS ThinkStation P7 Tower Workstation

Overview

The Lenovo ThinkStation P7 (30F3004GUS) is a single-socket tower workstation built around the Intel Xeon w5-3423 processor — a 12-core, 24-thread chip on the LGA 4677 platform that targets compute-intensive professional workloads: VMS server deployments, video analytics processing, multi-stream surveillance decoding, CAD/CAM, and scientific computing. Starting with 64 GB of DDR5-SDRAM across four modules, and supporting expansion to 1 TB of system memory, the P7 is configured to grow with workload demands rather than forcing a forklift upgrade after 18 months. If you're evaluating professional workstations for a high-demand security operations center or engineering environment, the P7 belongs on the shortlist.

Key Features

• Intel Xeon w5-3423 Processor (12C/24T): The w5-3423 runs at 2.1 GHz base with a 4.2 GHz boost clock across all 12 performance cores — double the base frequency under burst loads. The 30 MB Intel Smart Cache reduces memory latency for workloads that repeatedly access the same data sets, a real factor in multi-camera VMS environments where frame buffers cycle constantly. The 220 W base TDP (264 W max turbo) signals this is a full-performance server-class chip, not a desktop part clocked up.
• 64 GB DDR5-SDRAM, Expandable to 1 TB: DDR5 delivers roughly double the bandwidth of DDR4 at equivalent clock speeds, which matters when the processor is decoding dozens of simultaneous high-resolution video streams or running inference workloads in parallel. Shipping with 64 GB across four slots (4×16 GB configuration), the P7 leaves headroom for expansion as workload requirements scale — up to 1 TB of installed RAM, which is the territory of in-memory database and large-model inference deployments.
• PCIe 4.0 and PCIe 5.0 Expansion Slots: Dual-generation PCIe support means you can install current-gen PCIe 5.0 GPUs or NVMe storage (with full bandwidth) while also populating PCIe 4.0 slots with capture cards, 10GbE NICs, or RAID controllers without the bottleneck penalties you'd see on a PCIe 3.0 platform. For video analytics builds that pair a high-wattage GPU with multiple fast NVMe drives, this is a meaningful architectural advantage.
• LGA 4677 (Socket E) Platform: The LGA 4677 socket supports the full Intel Xeon W-2400 and W-3400 series, meaning the processor can be upgraded within the same platform if workload requirements increase — without replacing the entire chassis, memory, or storage stack. That's a procurement advantage for IT shops running 5–7 year hardware refresh cycles.
• Windows 11 Pro for Workstations: The pre-installed OS includes ReFS file system support, persistent memory support, and higher RAM and CPU ceilings than standard Windows 11 Pro — appropriate for running VMS software, analytic engines, or engineering tools that require workstation-class OS features rather than consumer-grade Windows.
• 9 lb / Commercial Tower Form Factor: At 9.0 lb, the P7 is lighter than many traditional tower workstations in its class, which simplifies rack-to-desk transitions and initial deployment. The tower form factor allows full-length, full-height PCIe cards — important for high-end GPU installations that won't fit in small form factor or rack-optimized chassis.

Integration and Compatibility

The ThinkStation P7 30F3004GUS runs Windows 11 Pro for Workstations, which provides native compatibility with the major VMS platforms — Milestone XProtect, Genetec Security Center, Avigilon Control Center, and others — without additional OS licensing overhead. The combination of PCIe 5.0 slots and DDR5 memory makes this platform appropriate for pairing with network video recorders and GPU-accelerated analytics engines. For integrators building out a IP camera infrastructure with server-side analytics, the Xeon w5-3423's 24 threads provide the concurrency needed to run multiple analytics pipelines simultaneously without saturating the CPU. The LGA 4677 platform also supports Intel vPro Enterprise for business (verify at the SKU level with your deployment), enabling remote management capabilities that reduce on-site IT overhead in distributed deployments. For workstation selection guidance, consult a workstation buying guide to match CPU core count and memory bandwidth to your specific VMS channel count and analytic workload.

Frequently Asked Questions

Q: What processor does the Lenovo 30F3004GUS include?

A: The 30F3004GUS ships with an Intel Xeon w5-3423, a 12-core/24-thread processor running at 2.1 GHz base and up to 4.2 GHz boost, with a 30 MB Smart Cache and a 220 W base TDP.

Q: How much RAM does the ThinkStation P7 30F3004GUS ship with, and what is the maximum?

A: It ships with 64 GB of DDR5-SDRAM. The platform supports expansion up to 1 TB of installed system memory.

Q: What PCIe generations does the 30F3004GUS support?

A: The ThinkStation P7 provides both PCIe 4.0 and PCIe 5.0 expansion slots, allowing installation of current-generation GPUs, NVMe storage, and legacy PCIe 4.0 add-in cards simultaneously.

Q: What operating system is pre-installed on the 30F3004GUS?

A: Windows 11 Pro for Workstations is pre-installed — a workstation-grade OS edition that supports higher memory ceilings and the ReFS file system, beyond what standard Windows 11 Pro offers.

Q: Is the processor in the 30F3004GUS upgradeable?

A: The LGA 4677 (Socket E) platform supports multiple Intel Xeon W-3400 and W-2400 series processors, so the socket is compatible with higher-core-count Xeon W chips if your workload requirements increase over the platform's lifecycle.

Q: Is the ThinkStation P7 suitable for running VMS software like Milestone or Genetec?

A: The 12-core Xeon w5-3423 and 64 GB DDR5 base configuration are appropriate for mid-to-large VMS deployments. Verify GPU and storage configuration against your VMS vendor's sizing calculator for the specific channel count and resolution mix you plan to run.

Marty Allison

The 30F3004GUS lands in an interesting spot for security infrastructure deployments. The Xeon w5-3423's 220 W base TDP and 264 W max turbo tells you this isn't a throttled mobile chip — it's a full LGA 4677 server-class processor that will sustain its 4.2 GHz boost under real analytical workloads, not just in benchmarks. Paired with 64 GB of DDR5, the platform has the memory bandwidth to handle GPU-accelerated analytics and VMS decoding simultaneously without starving either subsystem.

Technical Highlights:

• 12C/24T at 4.2 GHz Boost: Twenty-four hardware threads let a VMS like Milestone XProtect or Genetec Security Center run motion analytics, recording, and live decoding in parallel — the thread count is the actual resource the VMS scheduler is dividing, not just the core count.
• DDR5 with 1 TB Max: Starting at 64 GB with headroom to 1 TB means this platform won't be memory-constrained during a camera expansion from 32 to 128+ channels — you expand RAM rather than replace the server.
• PCIe 5.0 + PCIe 4.0 Co-existence: Dropping a PCIe 5.0 GPU into the primary slot while running PCIe 4.0 capture or NIC cards in secondary slots is supported natively — no riser compatibility headaches or bandwidth sharing penalties that plague some single-generation platforms.

Deployment Considerations:

• At 9 lb tower form factor, the P7 drops into a server closet, a wiring room shelf, or a desk deployment — but verify your GPU's power requirements against the system's PSU capacity before specifying a high-wattage analytics card; the P7's base configuration PSU may need an upgrade for dual high-TDP GPU builds.
• The 220 W processor TDP means thermal management in the deployment space matters — this is not a silent office machine; plan for adequate airflow in the enclosure or room.

The ThinkStation P7 30F3004GUS is the right call for a physical security operations center (PSOC) server build or a VMS analytics node where you need workstation-class single-thread performance, DDR5 memory bandwidth, and a clear upgrade path without platform churn — specifically where the load is 64–128 camera channels with server-side video analytics running concurrently.
