Lenovo 30F3003VUS Thinkstation P7 W53423 16G X1 W11PWS

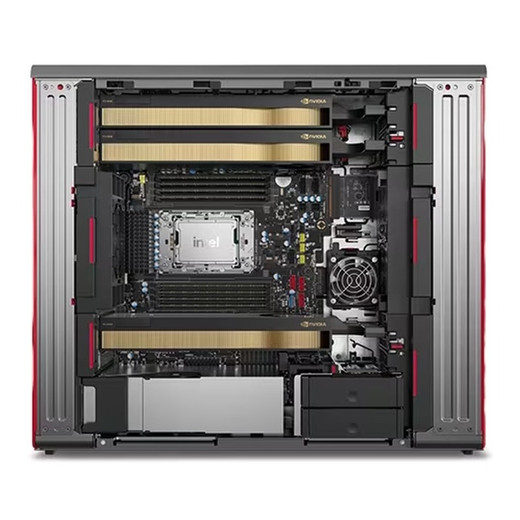

Lenovo 30F3003VUS ThinkStation P7 Tower Workstation

The Lenovo ThinkStation P7 (30F3003VUS) is a professional tower workstation built around Intel's Xeon W processor platform — the right foundation when a VMS deployment, 3D rendering pipeline, or engineering simulation demands more headroom than a standard desktop can provide. This configuration ships with the 12-core Intel Xeon w5-3423, 16 GB of DDR5 memory, and Windows 11 Pro for Workstations, giving you an enterprise-grade OS baseline alongside the hardware.

Overview

The ThinkStation P7 sits at the upper tier of Lenovo's Lenovo workstation lineup, targeting workloads that require ECC memory support, sustained multi-core throughput, and the PCIe bandwidth that only the Xeon W platform delivers. As a professional tower workstation, it's dimensioned for under-desk or rack-adjacent deployment in a control room, VMS server room, or engineering lab — not a small-form-factor device, but a machine built to run continuously under sustained load.

Key Features

• Intel Xeon w5-3423 Processor (12 Cores / 24 Threads): The w5-3423 runs at 2.1 GHz base with a 4.2 GHz maximum turbo across all 12 performance cores. For a VMS host decoding multiple high-resolution streams simultaneously, the 24 logical threads allow the OS and VMS software to schedule concurrent decode, analytics, and recording tasks without contention. The 30 MB Intel Smart Cache reduces memory-latency penalties on data-intensive workloads.
• 220 W Base TDP / 264 W Maximum Turbo Power: The processor is rated at 220 W base power with 264 W under turbo conditions. This is a full-performance Xeon W part — not thermally restricted — meaning the ThinkStation P7's chassis cooling is engineered to sustain peak clocks under prolonged load. Plan your UPS and rack power budget accordingly: this is not a low-power edge device.
• 16 GB DDR5-SDRAM (Expandable to 1 TB): The base 16 GB DDR5 configuration is the entry point; the platform supports up to 1 TB of installed memory. If you're running a large Milestone XProtect, Genetec, or similar VMS instance with dozens of cameras, a memory upgrade is worth planning at procurement — adding RAM post-deployment is straightforward on the P7's tool-accessible design, but ordering the right DDR5 ECC DIMMs upfront saves a service call.
• PCIe 4.0 and 5.0 Slots: The ThinkStation P7 provides both PCIe 4.0 and PCIe 5.0 expansion slots. PCIe 5.0 doubles the per-lane bandwidth of Gen 4, which matters when pairing high-throughput NVMe storage or a professional GPU with the Xeon W platform. For NVR and VMS server builds, this means you're not bottlenecked at the storage interface even with fast NVMe arrays.
• LGA 4677 (Socket E) Platform: The LGA 4677 socket is Intel's current Xeon W platform socket, supporting the full Sapphire Rapids-W processor family. This matters for long-term serviceability — the platform has a defined roadmap and broad component availability through commercial channels.
• Windows 11 Pro for Workstations: Ships with Windows 11 Pro for Workstations (not Home, not standard Pro). This edition includes ReFS file system support, persistent memory support, and higher RAM ceiling — directly relevant for VMS and data-intensive applications that benefit from a more resilient file system and enterprise features like remote desktop and group policy.
• 9 lb Chassis Weight: At 9.00 lb, the P7 tower is a manageable single-person install for under-desk or shelf deployment. It's not rack-mounted out of the box, but the weight makes repositioning practical during initial commissioning.

Integration and Compatibility

The ThinkStation P7 30F3003VUS runs Windows 11 Pro for Workstations, which provides broad compatibility with enterprise VMS platforms. Most major VMS vendors — including Milestone, Genetec, Avigilon, and Hanwha — publish Windows 11 compatibility for their server and client software. Confirm your specific VMS version's Windows 11 support before deployment, particularly for older server-side installations that may still require Windows Server or Windows 10.

The PCIe 5.0 and 4.0 slot configuration supports GPU add-in cards for accelerated video decode — relevant if your VMS or analytics platform supports NVIDIA CUDA or similar GPU-accelerated processing. Check with your video surveillance software vendor for GPU acceleration requirements and supported card models before specifying the GPU separately.

For power infrastructure planning, budget for a UPS that can handle the 264 W maximum turbo power draw of the processor alone, plus memory, storage, and any add-in cards. A properly sized UPS protects both the workstation and any in-progress recording sessions during a power event.

Frequently Asked Questions

Q: What operating system does the 30F3003VUS ship with?

A: The 30F3003VUS ships with Windows 11 Pro for Workstations, as indicated in the product name (W11PWS). This is the enterprise-tier Windows 11 edition, distinct from standard Windows 11 Pro.

Q: How much RAM does the ThinkStation P7 30F3003VUS ship with, and what is the maximum?

A: It ships with 16 GB of DDR5-SDRAM. The platform supports a maximum of 1 TB of installed memory, making it suitable for memory-intensive VMS or engineering workloads that require significant future headroom.

Q: What processor is in the 30F3003VUS?

A: The Intel Xeon w5-3423: a 12-core, 24-thread processor with a 2.1 GHz base frequency and 4.2 GHz maximum turbo frequency, 30 MB Smart Cache, and a 220 W base TDP (264 W turbo).

Q: Does the ThinkStation P7 support PCIe 5.0?

A: Yes. The P7 platform provides both PCIe 5.0 and PCIe 4.0 expansion slots, supporting the latest high-bandwidth NVMe drives and professional GPU cards.

Q: Is the 30F3003VUS suitable as a VMS server for a large camera system?

A: The 12-core Xeon w5-3423 with 24 threads and up to 1 TB DDR5 RAM provides strong multi-stream decode and concurrent processing capability. The 16 GB base configuration may need a RAM upgrade for large deployments — plan accordingly at procurement.

Q: Where is the ThinkStation P7 30F3003VUS manufactured?

A: Country of origin is Mexico (MX), per distribution feed data.

James Everett

The ThinkStation P7 30F3003VUS is one of the more capable base-config workstations I'd recommend for a mid-to-large VMS deployment — the 12-core Xeon w5-3423 running at up to 4.2 GHz turbo gives you the single-threaded burst speed that matters for VMS UI responsiveness, alongside enough parallel threads to handle concurrent decode across 32+ camera streams without saturating the processor.

Technical Highlights:

• Xeon w5-3423 (12C/24T, 4.2 GHz turbo): The 24 logical threads let your VMS distribute recording, decode, and analytics tasks across cores — critical when you're running live view alongside background motion search on a 64-channel system.
• DDR5-SDRAM, expandable to 1 TB: DDR5 delivers higher bandwidth per channel compared to DDR4, which helps when the VMS database and frame buffers are competing for memory bandwidth. Starting at 16 GB, this config has runway — but plan your target channel count before ordering and upgrade RAM at the same time.
• PCIe 5.0 + PCIe 4.0 slots: PCIe 5.0 slots open the door to next-generation NVMe storage — if your retention requirement calls for fast sequential writes across many channels, you won't be bottlenecked at the storage bus the way older workstations were with PCIe 3.0.

Deployment Considerations:

• The 220 W processor TDP (264 W turbo) means this machine needs a UPS rated well above 500 W once you account for memory, storage, GPU, and system overhead — size your UPS at commissioning, not after the first power event.
• The 16 GB base RAM is tight for a production VMS server managing 32+ cameras with analytics enabled; budget for at least 32–64 GB if deploying at scale, and confirm DDR5 ECC DIMM compatibility with Lenovo's memory configurator for this chassis.

For a control room or server-room VMS host managing 30–100 IP cameras with a platform like Milestone XProtect or Genetec Security Center, the 30F3003VUS is a well-matched foundation — the Xeon W platform brings ECC memory support and PCIe 5.0 bandwidth that consumer-grade workstations simply can't offer at this price tier.
