Lenovo 30F30014US Thinkstation P7 W73455 16G X8 W11PWS

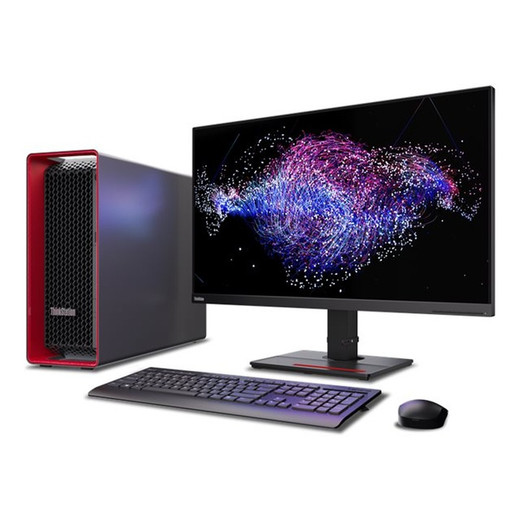

Lenovo 30F30014US ThinkStation P7 Tower Workstation

The Lenovo ThinkStation P7 30F30014US is a high-core-count tower workstation built around the Intel Xeon w7-3455 — a 24-core, 48-thread processor aimed at demanding professional workloads including video management software, AI-assisted analytics, and multi-stream media processing. If your environment runs 32+ camera streams, forensic video analysis, or parallel VMS plus access-control processing, the CPU architecture here is designed to handle sustained parallel throughput rather than single-threaded bursts.

Key Features

• Intel Xeon w7-3455 (24 cores / 48 threads): With a 2.5 GHz base clock and 4.8 GHz boost across 24 physical cores, this processor handles heavily threaded workloads — simultaneous decoding of high-resolution streams, real-time analytics inference, and background archiving — without the core-count bottleneck that stalls consumer-grade workstations under full load.
• 128 GB DDR5-4800 installed (1 TB maximum): Ships with eight 16 GB DDR5 DIMMs populating all eight slots. DDR5-4800 delivers roughly 1.5× the peak bandwidth of DDR4-3200 — important for video analytics pipelines that move large frame buffers between CPU and GPU memory at speed. To expand beyond 128 GB, you will need to swap all eight DIMMs since every slot is already occupied.
• 1 TB DDR5 memory ceiling: The platform supports up to 1 TB of RAM across its eight DIMM slots, which gives long-term headroom for memory-intensive workloads like large-model AI inference or in-memory database caching for event-driven access control systems.
• 270 W processor base power / 324 W maximum turbo power: The Xeon w7-3455 is a power-hungry processor — budget accordingly for facility power circuits and cooling. Sustained all-core workloads will run close to the 270 W base TDP; burst workloads can draw up to 324 W from the CPU alone, separate from GPU and storage power draw.
• 67.5 MB Intel Smart Cache: The large on-die cache reduces main-memory round trips on repetitive access patterns — beneficial for VMS software that repeatedly references the same codec tables, lookup structures, or analytics model weights across many concurrent camera threads.
• ThinkStation P7 tower form factor (9 lb chassis): At 9 lb without a full complement of GPU and storage cards, the P7 chassis is designed for rack-adjacent or under-desk deployment in a server room or security operations center — not for rack mounting without a separate rail kit.

Frequently Asked Questions

Q: What processor is in the Lenovo 30F30014US?

A: The 30F30014US ships with the Intel Xeon w7-3455 — a 24-core, 48-thread processor with a 2.5 GHz base clock, 4.8 GHz boost, and 67.5 MB Intel Smart Cache.

Q: How much RAM does the ThinkStation P7 30F30014US ship with, and can it be expanded?

A: It ships with 128 GB of DDR5-4800 memory configured as 8×16 GB across all eight DIMM slots. The platform supports up to 1 TB total, but since all slots are pre-populated, expansion requires replacing the existing DIMMs rather than adding to them.

Q: What is the memory type and speed in the 30F30014US?

A: DDR5-SDRAM running at 4800 MHz. All eight DIMM slots are occupied in the default 128 GB configuration.

Q: What is the thermal design power (TDP) of the processor in this workstation?

A: The Intel Xeon w7-3455 has a base processor power of 270 W and a maximum turbo power of 324 W. Plan your facility power and cooling budget accordingly — GPU, storage, and platform power draw are additive on top of these figures.

Q: Is the Lenovo 30F30014US a tower or rack-mount workstation?

A: The ThinkStation P7 ships as a tower chassis. Rack mounting requires a separate rail kit not included in the base 30F30014US configuration.

Jerry Tildsen

The 30F30014US is one of the few commercially available workstations shipping with a 24-core Xeon W-series processor and full 128 GB DDR5-4800 from the factory — that combination is specifically relevant when you are running a VMS platform like Milestone XProtect Corporate or Genetec Security Center at scale, where simultaneous stream decoding, analytics inference, and database I/O compete for CPU threads and memory bandwidth.

Technical Highlights:

• 24-core / 48-thread Xeon w7-3455: At 4.8 GHz boost across 24 cores, this processor decodes far more simultaneous high-resolution streams than a standard desktop Core i9 — the thread count is the operative spec for multi-camera VMS deployments.
• DDR5-4800 at 128 GB installed: DDR5's higher bandwidth matters when analytics workloads are moving frame data between system RAM and a GPU — the 4800 MHz clock reduces that bottleneck compared to DDR4-class platforms.
• 1 TB DDR5 ceiling: Long-runway for memory-intensive applications; in-memory database caching for large access-control event histories or AI model staging can absorb hundreds of gigabytes over a multi-year deployment lifecycle.

Deployment Considerations:

• The 270 W processor base TDP — plus GPU, NVMe, and platform overhead — means this system will likely draw 400–600 W at load. Verify your rack PDU or wall-circuit amperage before installation; a 15A circuit shared with other equipment may not be sufficient.
• All eight DIMM slots are occupied at 8×16 GB. Memory upgrades beyond 128 GB require a full DIMM swap — not an add-on — which adds cost and generates waste. If you anticipate needing 256 GB or more within 18 months, factor replacement DIMM pricing into your procurement decision now.

The ThinkStation P7 30F30014US is best positioned as the primary VMS server in a mid-to-large enterprise security operations center — specifically where the camera count, analytics load, or AI inference pipeline has outgrown quad-core or 8-core workstation builds and the organization needs sustained multi-threaded throughput in a tower form factor before committing to a full rack server deployment.
