Weight:
4.00 lb
Country Origin:
MX
Country Of Origin:
MX
Unspsc Code:
39121004
Component:
Specification
Form Factor:
Standalone or 1U rack mount
Fc Port Types:
Full Fabric mode: FL_Port, F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port). Access Gateway mode: F_Port and NPIV-enabled N_Port.
Data Traffic Types:
Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only).
Classes Of Service:
Class 2, Class 3, Class F (inter-switch frames).
Optional Features:
ISL Trunking, Fabric Vision, Extended Fabric, Integrated Routing (Lenovo B6510 only), Integrated 10G FC (Lenovo B6510 only).
Cooling:
Two fans built into each power supply; 2+2 cooling redundancy with two power supplies. Non-port to port side airflow.
Power Supply:
Up to two redundant hot-swap 150 W AC (100 - 240 V) power supplies (IEC 320-C14 connector).
Hot-Swap Parts:
SFP/SFP+ transceivers, power supplies with fans.
Management Ports:
One 10/100 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage).
Management Interfaces:
EZSwitch Setup; Web-based GUI (Web Tools); CLI; SMI-S; SNMP. Optional Brocade SANnav Management Portal and SANnav Global View, or Brocade Network Advisor.
Dimensions:
Height: 43 mm (1.7 in.); width: 438 mm (17.2 in.); depth: 443 mm (17.4 in.)
Description:
Part number
Lenovo B65Xx Mid-Mount Rack Kit:
00MY760
Lenovo 0.5M Lc-Lc Om3 Mmf Cable:
00MN498
Lenovo 1M Lc-Lc Om3 Mmf Cable:
00MN502
Lenovo 3M Lc-Lc Om3 Mmf Cable:
00MN505
Lenovo 5M Lc-Lc Om3 Mmf Cable:
00MN508
Lenovo 10M Lc-Lc Om3 Mmf Cable:
00MN511
Lenovo 15M Lc-Lc Om3 Mmf Cable:
00MN514
Lenovo 25M Lc-Lc Om3 Mmf Cable:
00MN517
Lenovo 30M Lc-Lc Om3 Mmf Cable:
00MN520
Transceiver:
Cable
16 Gb Fc Lw Sfp+ Module:
1310 nm single-mode fiber optic cable (9 µ) up to 10 km
16 Gb Fc Elw Sfp+ Module:
1310 nm single-mode fiber optic cable (9 µ) up to 25 km
10 Gb Fc Sw Sfp+ Module:
Up to 30 m with fiber optic cables supplied by Lenovo (see Table 2); up to 550 m with OM4 or up 300 m with OM3 multimode fiber optic cables
10 Gb Fc Lw Sfp+ Module:
1310 nm single-mode fiber optic cable (9 µ) up to 10 km
8 Gb Fc Sw Sfp+ Module:
Up to 30 m with fiber optic cables supplied by Lenovo (see Table 2); OM3 multimode fiber optic cables (up to 150 m at 8 Gbps; up to 380 m at 4 Gbps; up to 500 m at 2 Gbps)
8 Gb Fc Lw Sfp+ Module:
1310 nm single-mode fiber optic cable (9 µ) up to 10 km
8 Gb Fc Elw Sfp+ Module:
1310 nm single-mode fiber optic cable (9 µ) up to 25 km
10/100 Mb Ethernet Port:
UTP Category 5, 5E, and 6 up to 100 meters
Rs-232 Serial Port:
DB-9/RJ-45-to-RJ-45 console cable (comes with the switch)
Lenovo B300/6505 S/W, Isl Trunking:
00MY787
Lenovo B300/6505 S/W, Fabric Vision:
00MY788
Lenovo B6510 S/W, Isl Trunking:
00MY778
Lenovo B6510 S/W, Fabric Vision:
00MY779
Lenovo B6510 S/W, Extended Fabric:
00MY780
7S0C0010Ww:
S1K6
7S0C0013Ww:
S1K8
7S0C001Kww:
S4MB
7S0C0011Ww:
S1K7
7S0C0014Ww:
S1K9
7S0C001Lww:
S4MC
7S0C0012Ww:
S1D8
7S0C0015Ww:
S1D9
7S0C001Jww:
S4MA

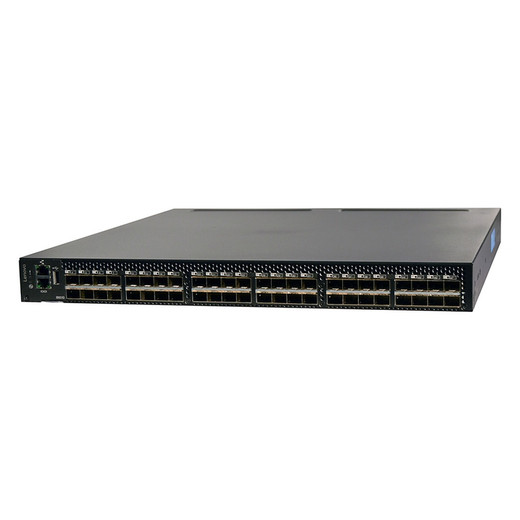

Lenovo B6505 Redundant Power Supply:
00MY807
Worldwide:
Japan
Lto 6 Fh Fibre Channel Drive:
01KP935
Lto 6 Hh Fibre Channel Drive:
01KP933
Lto 7 Fh Fibre Channel Drive:
01KP938
Lto 7 Hh Fibre Channel Drive:
01KP936
Lto 8 Fh Fibre Channel Drive:
01KP954
Lto 8 Hh Fibre Channel Drive:
01KP952
Dpi 30A Line Cord (Nema L6-30P:
40K9614
Dpi 60A Cord (Iec 309 2P+G:
40K9615
Dpi 63A Cord (Iec 309 P+N+G:
40K9613
Dpi Korean 8305 Line Cord (30A:
40K9618
B6510:
With 24 ports licensed and 24x 8 Gb or 16 Gb FC SWL SFP+ transceivers included
Aggregated Throughput B6505:
384 Gbps B6510: 768 Gbps
B6505:
With 12 ports licensed and 12x 8 Gb or 16 Gb FC SWL SFP+ transceivers included
Forward Error Correction (Fec:
Adds up to 0.4 microseconds between E_Ports
Encryption/Compression:
Adds up to 5.5 microseconds per node
Maximum Frame Size:
2,112-byte payload
Full Fabric Mode:
Enables high performance 8 Gb or 16 Gb switching in multi-switch fabric.
Dynamic Fabric Provisioning (Dfp:
Fabric-assigned port World Wide Names (FA-PWWNs).
Dynamic Path Selection (Dps:
Distributes input traffic across multiple paths proportionally to the bandwidth of each path.
Dynamic Load Sharing (Dls:
Distributes traffic across multiple equivalent paths between switches.
Management Server (Ms:
Assists in the auto-discovery of switch-based fabrics.
Bottleneck Detection:
Identifies devices attached to the fabric that are slowing down traffic.
Ingress Rate Limiting:
Restricts the speed of traffic from a particular device to the switch port.
Traffic Isolation Zoning (Tiz:
Creates a dedicated path for traffic flowing from a specific set of source ports (F_Ports).
Quality Of Service (Qos:
SID/DID traffic prioritization
N_Port Id Virtualization (Npiv:
Enables a single FC port to appear as multiple, distinct ports with separate port identification within the fabric.
Access Gateway:
Leverages NPIV to connect to any fabric without adding switch domains to reduce management complexity.
Administrative Domains:
Partition the fabric into logical groups and allocate administration of these groups to different user accounts
Maps Basic Monitoring:
Monitors system resources and overall switch health status.
Port Fencing:
Disables a port if specified error conditions are met.
Isl Trunking:
Allows frame-based consolidation of up to 8 inter-switch links (ISLs) into fault-tolerant and load-balanced trunks with bandwidth of up to 128 Gbps.
Flow Vision:
Allows to identify, monitor, and analyze specific application flows.
Top Talkers:
Provide real-time information about the top bandwidth-consuming flows passing through a specific port in the network.
Extended Fabric:
Extends Fibre Channel SANs beyond 10 km distance limitations for replication and backup at full bandwidth.
Sannav Management Portal Base:
Designed for mid-sized SANs to manage up to 600 SAN switch ports only (SAN director ports can only be managed with the Enterprise edition).
Sannav Management Portal Enterprise:
Designed for enterprise-class SANs to manage up to 15,000 SAN switch and director ports.
Fc-Ls Incits 433:
2007
Incits 332:
1999/AM 2-2006
Weight (Without Sfps:
Lenovo B6505 (with one power supply): 7.8 kg (17.3 lb) Lenovo B6510 (with two power supplies): 9.2 kg (20.2 lb)
Air Temperature:
Operating: 0°C to 40°C (32°F to 104°F) Non-operating: -25°C to +70°C (-13°F to 158°F)
Operating:
10% to 85% at 40°C (104°F)
Non-Operating:
10% to 90% at 70°C (158°F)
Maximum Altitude:
Operating: 3,000 m (9,842 ft) Non-operating: 12,000 m (39,370 ft)
Operating Humidity:
Operating: 10% to 85% at 40°C (104°F) Non-operating: 10% to 90% at 70°C (158°F)
Voltage Range:
100 V AC - 240 V AC (nominal)
Frequency:
50 Hz - 60 Hz (nominal)
Power Consumption:
Lenovo B6505: Idle: 60 watts Maximum: 80 watts Lenovo B6510: Idle: 72 watts Typical: 110 watts Maximum: 123 watts
Lenovo B6505:
Idle: 60 watts Maximum: 80 watts
Idle:
72 watts
Maximum:
123 watts
Lenovo B6510:
Idle: 72 watts Typical: 110 watts Maximum: 123 watts
Typical:
110 watts
Heat Dissipation:
Lenovo B6505 (maximum): 338 BTU per hour Lenovo B6510 (typical): 375 BTU per hour Lenovo B6510 (maximum): 420 BTU per hour
Lenovo B6505 (Maximum:
338 BTU per hour
Lenovo B6510 (Typical:
375 BTU per hour
Lenovo B6510 (Maximum:
420 BTU per hour
Acoustical Noise Emission:
70 dB
Foundation Service:
9x5 service coverage with next business day onsite response.
Essential Service:
24x7 service coverage with 4-hour onsite response or 24-hour committed repair (available only in select regions).
Advanced Service:
24x7 service coverage with 2-hour onsite response or 6-hour committed repair (available only in select regions).
Cns 14336-1:
99
