Lantronix SISPM1040-362-LRT-L1Y3 6-Port Gigabit Managed Switch

Overview

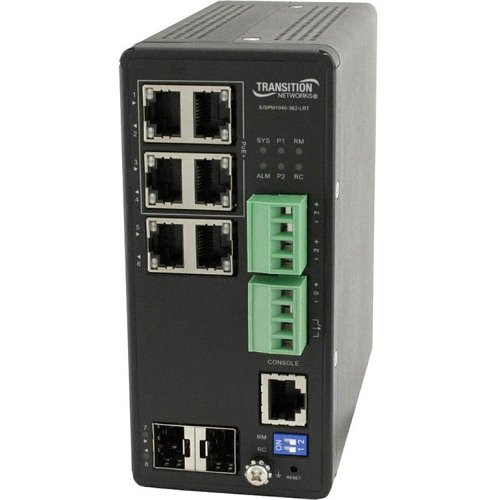

The SISPM1040-362-LRT-L1Y3 is a 6-port gigabit managed switch built for hardened network deployments in space-constrained environments—equipment closets, machinery enclosures, remote IDFs, and control panel integrations where rack space isn't available. All six ports deliver 10/100/1000 Mbps with PoE+ capability, eliminating the need for separate power injectors when deploying IP cameras or access points. The DIN-rail form factor mounts directly into control systems. This SKU bundles a 3-year technical support subscription, providing direct access to Lantronix support for configuration, firmware updates, and troubleshooting throughout the subscription term.

Compatibility

The SISPM1040-362-LRT-L1Y3 integrates with any standard IP camera, access control reader, or network device that accepts 10/100/1000 Mbps Ethernet or PoE+ power input (up to 30W per port). It pairs with Lantronix hardened network infrastructure deployments and industrial control systems requiring managed switching. Use the DRBH-01 DIN rail bracket (included) for panel-mount installations, or the WMBH-01 wall mount bracket for external enclosure mounting. The switch supports standard VLAN, QoS, and advanced switching controls for segmented network topologies.

Installation Notes

The 8K MAC address table is adequate for segmented networks serving a dozen or two managed devices per switch. If daisy-chaining multiple units or deploying larger flat topologies, plan your VLAN strategy upfront—MAC table saturation can degrade performance faster in broadcast-heavy designs. Verify your total PoE power budget against actual device current draw before installation; do not assume all six ports can simultaneously source maximum current for high-draw PTZ cameras without calculating total wattage. The DIN-rail mount is fixed to the switch chassis; confirm your enclosure rail spacing and clearance before final mounting.
