APC by Schneider Electric KVM SUN Server Module for VGA or 13W3 - AP5632

APC by Schneider Electric AP5632 KVM SUN Server Module for VGA and 13W3

Overview

The AP5632 is a wired KVM server module purpose-built for Sun server environments where both VGA (HD-15) and legacy 13W3 video interfaces need to share a common KVM switching fabric. If you manage Sun workstations or older SPARC-based infrastructure alongside modern rack hardware, this module bridges the connector gap — letting you consolidate control without re-cabling the server end. The external form factor means no internal slot required; the module installs at the server, and control travels over a standard RJ-45 run to your APC KVM switch.

Rated for operation up to 122°F (50°C) with 20–80% non-condensing humidity tolerance, the AP5632 is suited for data center environments where rack thermals can be uneven. A 2-year manufacturer warranty backs the unit.

Key Features

• Dual Video Interface Support (VGA HD-15 and 13W3): The AP5632 handles both the HD-15 VGA connector common on modern displays and the 13W3 connector used on Sun workstations and SPARC servers — eliminating the need for separate adapter cables or secondary KVM paths for legacy Sun hardware.
• RJ-45 KVM Link: Control signals travel over a single RJ-45 female port, so you can leverage standard Cat5/Cat6 infrastructure already in your rack. This simplifies cable management and keeps runs consistent with the rest of your KVM deployment.
• External Form Factor: No PCIe or expansion slot required. The module attaches externally at the server, which means installation doesn't require a maintenance window to open chassis — useful in high-availability environments where downtime windows are narrow.
• Wired Connectivity: Unlike wireless or IP-KVM solutions that introduce latency variables, the AP5632 operates over a direct wired link — important when you need predictable response during BIOS-level access or OS recovery procedures.
• Thermal Operating Range to 122°F (50°C): Most data centers run between 65–80°F at the server inlet, but hotspots in dense racks can push ambient higher. The 50°C ceiling gives meaningful headroom for non-air-side economizer environments.
• 20–80% Humidity Tolerance: Covers standard data center humidity bands (ASHRAE A2 class calls for 8–80% non-condensing). The AP5632 operates comfortably in facilities that haven't yet adopted tighter humidity control.
• Compact 3.7-inch Footprint: The small external form factor doesn't occupy rack U-space and doesn't add meaningful cable bulk at the back of a 1U or 2U server — relevant when rear-cable density is already tight.

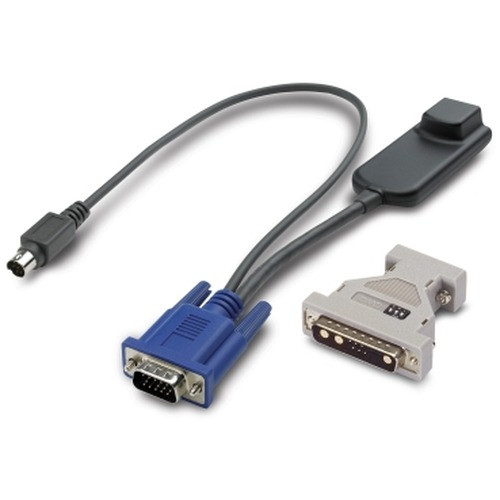

• Bundled Video Adapter: Ships with one video adapter, so the first server connection is ready out of the box without sourcing an additional part.

Integration and Compatibility

The AP5632 is designed to integrate with APC KVM switch infrastructure that accepts RJ-45 server modules. It targets Sun server platforms using VGA or 13W3 video output — a specific compatibility requirement that distinguishes it from generic VGA-only or PS/2-only KVM modules in the KVM switching category. If your environment is exclusively modern x86 with HD-15 VGA or DisplayPort, a different module in the APC KVM server module line may be the better fit.

For data center managers evaluating APC by Schneider Electric KVM infrastructure, this module addresses the Sun/SPARC legacy server population that persists in financial, government, and scientific computing environments where platform migration timelines are long. Pair with compatible APC KVM switches and appropriate rack cable management accessories for a clean deployment. When planning your overall rack control architecture, a KVM infrastructure buying guide can help map module types to server populations before you order.

Frequently Asked Questions

Q: What video interfaces does the AP5632 support?

A: The AP5632 supports two video interfaces: VGA via an HD-15 male connector and the legacy Sun 13W3 video connector. This dual-interface design specifically targets Sun workstation and SPARC server platforms.

Q: Does the AP5632 require an internal expansion slot in the server?

A: No. The AP5632 is an external form-factor module. It connects at the server's external ports without requiring any internal PCIe or expansion slot, so installation does not require opening the server chassis.

Q: What cabling does the AP5632 use to connect to the KVM switch?

A: The AP5632 uses a standard RJ-45 female interface for the KVM link, compatible with Cat5 or Cat6 cabling infrastructure already common in data center environments.

Q: What is the operating temperature range for the AP5632?

A: The AP5632 is rated for operation up to a maximum of 122°F (50°C), making it suitable for standard and moderately warm data center rack environments.

Q: What warranty does the AP5632 carry?

A: The AP5632 includes a 2-year manufacturer limited warranty.

Q: What is included in the box with the AP5632?

A: The AP5632 ships with one video adapter included.

Ted Perry

The AP5632 fills a specific gap that generic KVM modules can't — it's the module you reach for when you have Sun or SPARC hardware with 13W3 video output sitting alongside standard VGA servers in the same switch fabric. The dual HD-15/13W3 interface on a single external module means you don't need a separate adapter chain or a secondary switch leg for the legacy video format. If you're running mixed Sun and x86 infrastructure under one APC KVM umbrella, this is the module that makes consolidation possible without a compromise.

Technical Highlights:

• 13W3 + VGA HD-15 in One Module: The AP5632 handles both connector types natively — the 13W3 interface is increasingly rare in KVM modules, and having it paired with standard VGA in a single external unit avoids the need for passive 13W3-to-HD15 adapters that can introduce signal quality issues over longer runs.
• RJ-45 KVM Interface: The RJ-45 female KVM port means standard Cat5e/Cat6 runs connect the module to your APC KVM switch — no proprietary cable, no special order. Distance capability depends on the connected switch model, but the structured cabling compatibility keeps deployment straightforward.
• 50°C Thermal Ceiling: At 122°F max operating, the module handles hotspot rack zones that many data centers see in dense rear-of-rack positions — relevant if your Sun servers are seated in older raised-floor racks without precision cooling per row.

Deployment Considerations:

• Verify KVM switch compatibility before ordering — the AP5632 is designed for the APC KVM switch ecosystem and the RJ-45 server module interface must match what your switch model accepts. Not all APC KVM generations use the same module spec.
• The 13W3 connector is specific to Sun/SPARC hardware; if your environment has already migrated fully to x86 with HD-15 or DisplayPort video, this module's primary differentiator goes unused — a standard VGA server module would be a better fit and likely less expensive.

The AP5632 is the right call in government, financial, or scientific computing environments still running SPARC or legacy Sun workstations alongside modern rack servers — specifically where a single APC KVM switch needs to cover both populations without a separate switch or adapter chain for the 13W3 video side.
