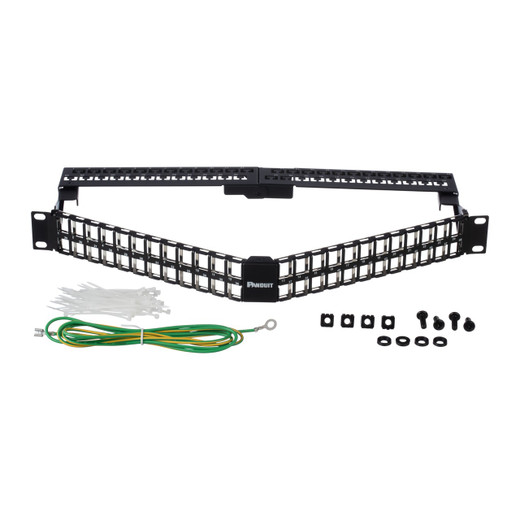

Panduit KPA48WSBL 48-Port Angled Shielded Keystone Patch Panel

Overview

The Panduit KPA48WSBL is a fully shielded, angled 48-port keystone patch panel that fits into a single rack unit — giving high-density structured cabling deployments a clean, organized termination point without sacrificing EMI protection or cable management discipline. Designed for patch panels installations in 19-inch and 23-inch racks and cabinets, this panel accepts 48 shielded keystone jack modules in a black powder-coated steel and stainless steel frame, with an angled port orientation that makes cable routing more intuitive in deep or tightly packed enclosures. If you're building out a security or IT backbone where shielded cabling is specified — healthcare, industrial, or high-EMI environments — this is a panel worth looking at carefully.

Key Features

• 48 Ports in 1 RU (482.6mm × 43.68mm): Fitting 48 termination points into a single rack unit means you can achieve dense patch field organization without stacking multiple panels. In a 42U cabinet, that's a theoretical 2,016 ports in patch-panel space alone — important when rack real estate is constrained and port count is growing.
• Angled Port Orientation: The angled keystone layout directs patch cables downward or to the side rather than straight out from the face, reducing stress on RJ-45 connectors and making it easier to identify and swap individual cables without disturbing adjacent runs. In active environments where moves, adds, and changes are frequent, this is a practical benefit that flat panels don't provide.
• Full Metal Construction (Stainless Steel): The all-metal chassis provides a continuous shield ground path when used with shielded keystone modules and shielded patch cables. In environments with significant electrical noise — manufacturing floors, data centers near UPS equipment, or security installations near access control hardware — a fully shielded patch field prevents signal degradation that an unshielded panel cannot address.
• Integrated Cable Management Bar: A built-in strain relief bar is included on the panel itself, so patch cables are secured and dressed without requiring a separate 1U cable manager above or below. This matters in 1U-constrained layouts where you can't afford to sacrifice additional rack space for a standalone cable management unit.
• Label Holders for Port Identification: Each port position accommodates a label insert, supporting clear circuit identification directly at the panel face. In multi-tenant or multi-system installations — where camera feeds, access control wiring, and IT data runs may share the same patch field — accurate labeling is how you avoid mispatching during an incident response or after-hours troubleshooting.
• 19-Inch and 23-Inch Rack Compatibility (482.6mm width): At 482.6mm wide, the KPA48WSBL installs in standard EIA 19-inch racks as well as the 23-inch telco/utility rack format still common in older buildings and campus infrastructure. You're not locked to a single rack standard.
• RoHS-Compliant: Meets Restriction of Hazardous Substances requirements — a compliance checkbox for projects in the EU, government facilities, and enterprise environments with environmental procurement mandates.

Integration & Compatibility

The KPA48WSBL is a Panduit structured cabling panel designed to accept standard shielded keystone jack modules — it does not ship with pre-loaded jacks. You specify and install the shielded keystone modules separately, which means you can match the panel to your cabling category (Cat 6A shielded, Cat 6 FTP, etc.) and manufacturer preference. For proper shield continuity, use shielded patch cords on the front and ensure the panel is bonded to rack ground. Pair this panel with PoE network switches feeding IP cameras or access control readers, and your patch field becomes the structured backbone for the entire security system. Review a structured cabling planning guide if you're designing a new installation — proper panel count, cable management ratios, and rack layout decisions made early prevent costly rework. This panel also pairs naturally with rack accessories such as horizontal cable managers and blanking panels for a clean, standards-compliant installation. Sold individually (package quantity: 1); available in carton quantities of 10 for larger rollouts.

Frequently Asked Questions

Q: Does the KPA48WSBL come with keystone jack modules included?

A: No. The KPA48WSBL is a panel frame only — it accepts 48 shielded keystone jack modules that are purchased and installed separately. This lets you select the specific jack category and shielding type that matches your cabling standard.

Q: Will the KPA48WSBL fit in a standard 19-inch rack?

A: Yes. At 482.6mm (19 inches) wide and 43.68mm (1.7 inches) tall, it mounts in standard EIA 19-inch racks and cabinets, as well as 23-inch telco-format racks.

Q: Is the KPA48WSBL RoHS compliant?

A: Yes. The KPA48WSBL meets RoHS (Restriction of Hazardous Substances) requirements, supporting compliance for EU, government, and enterprise environmental procurement standards.

Q: Why choose an angled patch panel over a standard flat-face panel?

A: The angled port orientation directs patch cables away from the face at an angle, reducing bend stress on connectors and making it easier to trace and swap individual cables without disturbing adjacent connections — a real advantage in high-change-rate environments.

Q: Does the panel include cable management?

A: Yes. An integrated cable management / strain relief bar is built into the panel, allowing you to dress and secure patch cables without purchasing a separate 1U cable manager.

Q: How many panels come in a carton?

A: Carton quantity is 10. The KPA48WSBL is sold individually (package quantity: 1), so you can order single units or full cartons for larger deployments.

Karl Wilson

The KPA48WSBL is the panel I reach for when a project spec calls for shielded cabling and the rack layout doesn't have room to spare. Fitting 48 shielded keystone ports into a single 1U (43.68mm) footprint with an angled face and an integrated strain relief bar is a meaningful combination — you're not bolting on a cable manager afterward and giving up another rack unit you don't have.

Technical Highlights:

• 48-Port Density at 1U: At 43.68mm tall and 482.6mm wide, this panel handles 48 terminations in a footprint that leaves room for switches, patch organizers, and other active gear in the same cabinet — no stacking two panels to hit 48 ports.
• Angled Port Face: The angled layout reduces the bend radius on patch cords at the panel face, which matters over a long service life — straight-out ports in tight enclosures are where RJ-45 tab breakage and intermittent connections originate.
• All-Metal Shielded Frame: Stainless steel construction gives you a grounded shield path from jack to panel to rack ground. If you're terminating Cat 6A STP or Cat 6 FTP and your patch cords aren't shielded end-to-end, the shielded panel alone won't fix your EMI problem — so spec shielded cords and switches with shielded RJ-45 ports at both ends.

Deployment Considerations:

• This panel ships without keystone modules — budget and order shielded jacks separately, matched to your cabling category. Mixing unshielded jacks in a shielded panel defeats the shield continuity you're paying for.
• The 23-inch rack compatibility is a useful detail on retrofit projects in older campus buildings or telecom closets that haven't been converted to EIA 19-inch — verify your rack format before ordering to avoid bracket adapters.

This panel is a solid fit for security system backbones in healthcare, higher education, or industrial facilities where shielded Cat 6A is specified for EMI compliance — environments where the cost of a re-pull from an improperly shielded termination point is measured in days, not hours.
