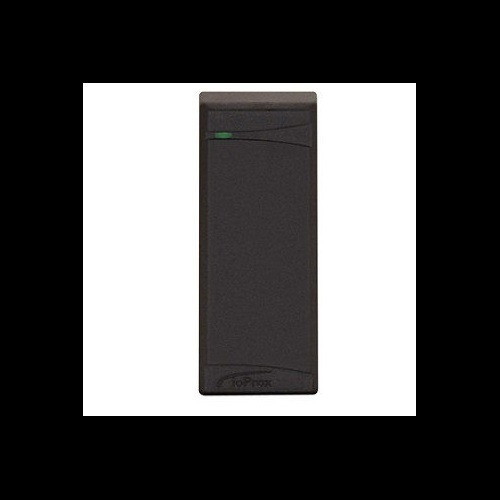

Kantech P225XSFOEM ioProx Reader Module
The Kantech P225XSFOEM is a compact proximity card reader module supplied in XSF form factor, engineered for direct embedding into Kantech ioProx-compatible control panels and custom security assemblies. Unlike standalone readers that require separate enclosures and field wiring, this module integrates as a plug-in component, eliminating cabinet space and reducing assembly labor. It processes Wiegand-formatted proximity card credentials and routes them through the ioProx protocol, making it the preferred choice for OEM integrators building multi-reader systems or retrofitting legacy Kantech panels with modernized credential processing.
Key Features
- XSF Form Factor: Compact module design fits directly into Kantech control panel slots without external enclosure. Reduces BOM complexity and installation time on custom assemblies.
- ioProx Protocol: Native Kantech credential interchange standard. Ensures compatibility across Kantech ecosystem without protocol translation overhead.
- Wiegand Communication: Industry-standard 26/34-bit Wiegand output. Interfaces directly with Kantech panel inputs on systems engineered for the protocol.
- Proximity Card Reader: Processes 125 kHz proximity credentials. No external card readers or separate decoder required — reader and interface in one module.
- OEM Integration Ready: Designed for manufacturers and integrators embedding reader logic into control panels. Minimal external power demand, no external mounting hardware.
- Lightweight (5 lb): Low mass facilitates flexible installation in dense multi-reader configurations or space-constrained panel designs.
Design & Integration Model
The P225XSFOEM shifts reader integration from external peripherals to embedded modules. In traditional deployments, each reader occupies wall real estate, requires its own conduit run, and depends on separate power budget allocation. This module consolidates reader intelligence into the control panel itself — a design pattern common in OEM access control systems where space is at a premium and credential processing must remain centralized. Kantech ioProx control panels that support reader modules (verify your specific panel SKU against the datasheet) provide the necessary backplane connectivity; no additional interface boards are required.
Wiegand communication between the module and the panel is the standard signal pathway. The module reads proximity cards, formats the credential as a 26 or 34-bit Wiegand packet, and transmits it to the control panel. The panel then processes the credential against its access rules. This architecture keeps credential decision-making inside the control panel rather than delegating it to external readers, reducing latency on high-volume multi-door installations and simplifying troubleshooting when credential mismatches occur.
Integrators building custom assemblies appreciate the XSF form factor because it eliminates the need to design custom front-end enclosures or cable harnesses for each reader. Instead, the module slides into a standardized slot on the panel, and wiring is internal. On projects where integrators must retrofit older Kantech systems or build new OEM panels for third-party OEMs, this modularity cuts engineering time significantly. Datasheet reference: /content/product-datasheets/P225XSFOEM.pdf.
Deployment Context & Total Cost Considerations
The P225XSFOEM is cost-effective on larger deployments and OEM builds where multiple readers converge on a single control panel. If you are wiring a 16-door access system around one Kantech controller, embedding reader modules inside the panel eliminates 16 external reader housings, 16 discrete power connections, and associated wall-mounting costs. For retrofit applications, verify that your existing Kantech panel supports ioProx reader modules before procurement — not all legacy Kantech panels have the necessary backplane slots. Consult your panel documentation or contact Kantech technical support to confirm compatibility.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've worked with the P225XSFOEM in several OEM and retrofit scenarios, and it's a solid choice when you need to consolidate reader functionality into a Kantech control panel without the footprint and cost overhead of external readers. The real value shows up on larger access control builds — a 20-door system with four Kantech panels can embed five P225XSFOEM modules per panel, effectively replacing 20 wall-mounted readers with embedded modules that take up zero additional space. What differentiates this module from just buying standalone Kantech readers is the elimination of individual enclosures, separate power supply drops, and associated wiring labor. On a 50-door retrofit of an older Kantech installation, that can mean a 15-20% savings in labor and materials. The trade-off is that you're locked into Kantech control panel architecture — if you need reader functionality outside a Kantech panel, you're better off with a traditional standalone reader.
Technical Highlights:
- Wiegand 26/34-bit Output: Dual-bit-length support ensures compatibility across Kantech controller versions. Legacy systems typically use 26-bit; newer firmware often supports 34-bit for extended site codes. The module handles both without reconfiguration.
- ioProx Protocol Native: No intermediate conversion or third-party gateway required. Kantech panel understands ioProx natively, so credential routing and access decisions happen at the panel CPU level — no external processor latency.
- 125 kHz Proximity Standard: Universal card format for HID, Kantech, and most legacy proximity systems. If your credentials are standard 125 kHz prox cards (the majority of existing deployments), this reader will accept them without additional configuration.
- Compact Power Profile: Embedded modules typically draw <200 mA at 12 VDC — negligible load on a Kantech panel power supply. Multi-reader configurations don't trigger power budget overages.
- OEM Panel Integration: Designed for manufacturers building access control systems that incorporate Kantech as a subsystem. The module's XSF form factor is part of Kantech's OEM reader module ecosystem.
Deployment Considerations:
- Compatibility check is non-negotiable — verify your Kantech control panel supports ioProx reader modules before ordering. Not all Kantech panels have backplane slots for XSF modules. Legacy K-series panels may require external readers instead.
- Wiegand cable runs between module and panel should be shielded and kept under 100 feet to minimize noise pickup. If your control panel is in a remote equipment room, run twisted-pair shielded cable or use Kantech's recommended harnesses.
- Credential format alignment matters — confirm that your proximity cards are 125 kHz standard format. High-frequency or encrypted card types are not supported by this module.
- Testing protocol: After module installation, verify card reads in both 26-bit and 34-bit modes if your panel supports mode switching. Some integrators find that one bit-length has better compatibility with legacy card databases.
- Spare inventory recommendation — if you have 16-door systems with four panels each, keep one spare P225XSFOEM per site. Module failures are rare, but a failed embedded reader takes down the panel's reader functionality until replacement.
The P225XSFOEM is the right fit for OEM integrators, system manufacturers, and large enterprises consolidating multiple readers into Kantech control panels. If you're a standalone door integrator or security integrator working with mixed platforms, a traditional standalone Kantech reader may be simpler. For depth on all Kantech access control modules and readers, see the Kantech catalog.
