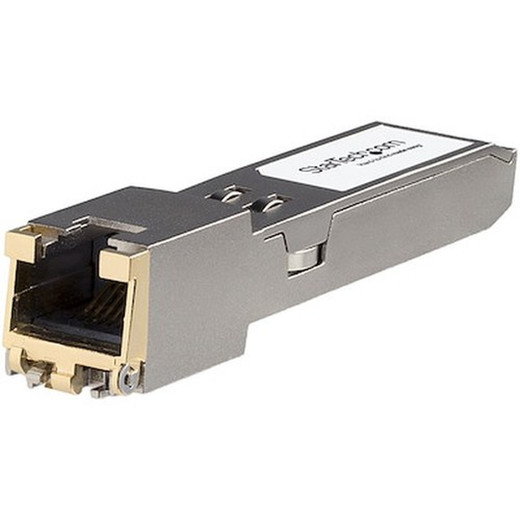

StarTech JL563A-ST 10GBase-T SFP+ Copper Transceiver Module

Overview

The StarTech JL563A-ST is a 10GBase-T SFP+ copper transceiver that drops into HPE-coded switch slots and delivers 10 Gbps over standard RJ-45 copper cabling — no fiber, no media converters, no separate power supply runs. If you are connecting servers, NVRs, or high-bandwidth IP cameras back to an HPE core switch and your structured cabling is already Cat6a or Cat7, this module eliminates the cost and complexity of a fiber uplink. The JL563A-ST (often searched as JL563A ST) is built to IEEE 802.3ae 10GBASE-T, operates in full-duplex mode, and carries a lifetime warranty.

Key Features

• 10 Gbps full-duplex throughput: IEEE 802.3ae 10GBASE-T compliance means you get a standards-conformant 10G link — not a proprietary speed tier — so the connection behaves predictably under load. Critical on NVR uplinks recording dozens of high-bitrate streams simultaneously.
• RJ-45 copper interface, 30 m reach: Works with Cat6a or Cat7 patch runs up to 30 meters — the right fit for IDF-to-server rack connections, top-of-rack switching, or camera aggregation switches within the same or adjacent comms rooms. Beyond 30 m, a fiber-based SFP+ module is the correct path.
• HPE-coded compatibility: Programmed to match the JL563A OEM identifier, so HPE switches accept the module without error flags or unsupported-transceiver warnings that would otherwise force a workaround command on every boot.
• Compact form factor — 2.7 in × 0.5 in × 0.5 in: Standard SFP+ footprint at 0.5 oz means it seats cleanly in a crowded switch faceplate without obstructing adjacent ports. No clearance issues in high-density chassis deployments.
• MTBF of 510,469,759 hours: That figure represents over 58,000 years of calculated mean time between failures — more relevant as a comparative metric than an absolute guarantee, but it reflects a design built for always-on network infrastructure rather than consumer-grade hardware.
• Lifetime warranty: For a passive copper transceiver installed in a production switch, a lifetime warranty eliminates the recurring cost of per-unit replacement planning cycles. Budget once, not per refresh.

Integration and Compatibility

The JL563A-ST is designed as a direct replacement for the HPE JL563A OEM module. Deploy it in HPE switches that accept SFP+ copper transceivers coded to that part number. The 10GBASE-T interface requires Cat6a minimum at 30 m for a stable 10G link — Cat5e or Cat6 will not reliably sustain 10 Gbps at that distance. If your run is shorter (under 10 m), Cat6 may work in practice, but Cat6a is the specified medium. The module operates in full-duplex only; half-duplex 10G is not a supported mode under 802.3ae.

For network switches and related infrastructure, pairing this transceiver with an appropriate SFP+ module catalog review ensures you select the right optic for each link type in your deployment. If your run exceeds 30 m, evaluate single-mode or multimode fiber SFP+ alternatives. For broader HPE networking compatibility, verify the target switch's supported transceiver list before ordering.

Frequently Asked Questions

Q: What cabling standard does the JL563A-ST require?

A: The module is rated for up to 30 meters over Cat6a or Cat7 copper. Cat6a is the minimum recommended for reliable 10 Gbps operation at full distance under IEEE 802.3ae 10GBASE-T.

Q: Will HPE switches accept this module without generating unsupported transceiver errors?

A: Yes. The JL563A-ST is coded to match the HPE JL563A OEM identifier, so compatible HPE switches recognize it as a supported module without requiring override commands.

Q: What is the warranty on the JL563A-ST?

A: StarTech provides a lifetime warranty on the JL563A-ST.

Q: Can this module be used in non-HPE switches?

A: The module is specifically coded for HPE compatibility. Use in non-HPE switches may result in the host device flagging the transceiver as unsupported. Verify with your specific switch vendor before deploying in mixed-brand environments.

Q: What is the maximum supported link distance?

A: 30 meters over Cat6a/Cat7. For longer copper runs or distances beyond 30 m, a fiber-based SFP+ solution is required.

Jerry Tildsen

The spec that matters most on the JL563A-ST is the 30-meter copper reach over RJ-45 — for integrators working in server rooms and comms closets where structured Cat6a is already in place, this eliminates the fiber jump entirely. I reach for this module when a customer has an HPE core switch and needs a clean 10G uplink from an NVR or network appliance that is rack-adjacent, not building-wide.

Technical Highlights:

• 10 Gbps / IEEE 802.3ae: Full standards compliance means the link negotiates predictably and traffic shaping on the HPE switch applies correctly — no quirks from a non-conformant proprietary speed tier.
• MTBF 510,469,759 hours: Over 58,000 years calculated MTBF. In a production NVR uplink that records 24/7, that reliability margin matters more than it sounds — this is not a component you want generating intermittent link drops at 2 AM.
• Lifetime warranty: For a transceiver seated in a production switch, a no-expiry warranty removes it from your hardware refresh cost model entirely.

Deployment Considerations:

• Cat6a is non-negotiable at the full 30 m distance. If your existing runs are Cat6 (not Cat6a), validate actual cable performance before committing — marginal cabling will cause link instability at 10G.
• This module is HPE-coded specifically. Do not drop it into Cisco, Juniper, or other vendor chassis expecting clean recognition — you will likely get an unsupported transceiver error that requires a CLI workaround or blocks the port entirely.

The JL563A-ST is the right call in HPE-standardized enterprise or mid-market deployments where the NVR or server sits within 30 m of the access or distribution switch and your cabling infrastructure is already Cat6a — a fiber SFP+ adds cost and termination labor that simply is not justified at that distance.
