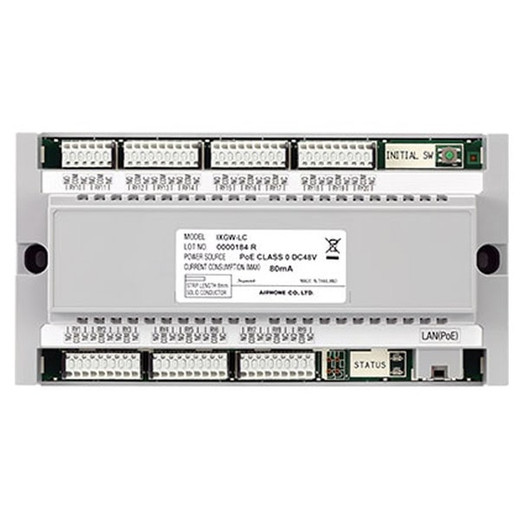

Aiphone IXGW-LC Elevator/lift Control Adaptor
Overview
The Aiphone IXGW-LC is a dedicated control adaptor designed to bridge the Aiphone IXG Series intercom system with elevator and lift control panels. This unit enables secure communication and command execution between the intercom system and building transportation, specifically for scenarios requiring direct integration with elevator call and status functions. It supports up to 16 adaptors per building, allowing for scalable deployment across large facilities. The IXGW-LC is essential for advanced security and access control integration in multi-story buildings.
Compatibility
This adaptor is compatible exclusively with the Aiphone IXG Series intercom system. It is designed to interface directly with elevator control systems that accept dry contact closures or logic-level inputs for call requests and status reporting. Ensure your elevator control panel supports integration via Form C relays.
Installation Notes
The IXGW-LC supports both DIN rail (35mm) and wall mounting. It requires a 10BASE-T/100BASE-Tx network connection and draws power via IEEE 802.3af Class 0 PoE, simplifying installation by eliminating the need for local power supplies. The operating temperature range is -10°C to 50°C (14°F to 122°F). Relay contacts are rated for 24V AC/DC at 500mA, suitable for low-voltage signaling. Network communication utilizes TLS 1.2 encryption for secure data transmission.
What's in the Box
- 1x Aiphone IXGW-LC Elevator/lift Control Adaptor
- 1x Mounting template
- 1x DIN rail mounting bracket
- 1x Instruction manual
