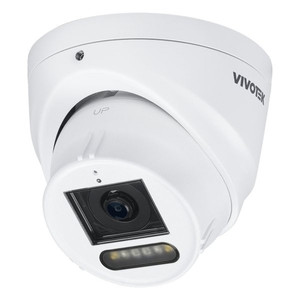

Vivotek IT9383-HTVW 5MP Motorized Outdoor Dome Camera
The Vivotek IT9383-HTVW is a 5-megapixel motorized dome designed for outdoor surveillance in environments where environmental durability, operational flexibility, and remote control matter. The motorized f2.7–13.5mm lens allows you to adjust focal length and zoom remotely from your management workstation without dispatching a technician for refocus or reframing. This capability cuts operational overhead on large deployments and enables rapid scene adjustments as facility needs change.
Key Features
- Motorized varifocal lens (f2.7–13.5mm): Zoom and focus adjustment from the NVR or VMS eliminates repeat site visits for optical repositioning. Deploy the camera once, refine framing indefinitely from your control center. For large perimeter or campus installations, this reduces service costs and downtime.
- Dual-light illumination system: Combines warm white LED with 30-meter infrared range. The IR extends coverage in complete darkness; the warm LED delivers color context in twilight and low-light scenes. This dual approach covers day, dusk, and night without requiring separate day/night models or supplementary outdoor lighting.
- IP66 and IK10 environmental ratings: IP66 blocks dust ingress and direct water spray; IK10 absorbs significant mechanical impact (11 joules) from debris, vibration, or intentional contact. Together, they survive salt spray, freezing rain, wind-blown ice, and physical abuse—critical for exposed perimeter, coastal, or high-traffic industrial environments.
- H.265, H.264, and MJPEG codec support: H.265 reduces storage footprint roughly 40–60% compared to H.264 at equivalent image quality. On 24/7 recording across dozens of cameras, this translates directly to smaller NVR/SAN capacity, lower power draw, and extended retention windows on fixed storage budgets. H.264 and MJPEG remain available for legacy VMS platforms or bandwidth-constrained networks.
- PoE (IEEE 802.3af) power delivery: Draws under 13W, well within standard PoE switch budgets. Single cable delivers data and power—no separate 12VDC supply, power conduit, or outdoor transformer required. Simplifies installation, reduces field complexity, and lowers cable-run costs in large deployments.
- Built-in microphone and two-way audio: Records audio alongside video and supports speaker output for access control integration, breach acknowledgment, or facility announcements. Useful for drive-thru inspection, perimeter alerts, and visitor communication.
- MicroSD/SDHC/SDXC local edge recording: Records directly to the camera when WAN or NVR connectivity fails. Supports card capacities up to 512GB. Reduces reliance on always-on centralized storage and provides a failsafe for critical perimeter or asset-monitoring scenarios.
- Vision Object Analytics and Smart VCA: On-camera behavioral classification detects loitering, direction of travel, and stopped objects. Reduces false positives from weather, shadows, and transient motion. Enables event-driven alerting and selective recording, cutting storage overhead and review burden.
- Extended operating temperature range: −30°C to 55°C: Rated for extreme climates from frozen warehouses and northern facilities to desert deployments. Thermal compensation prevents image quality loss at temperature extremes.
- Trend Micro IoT Security: Firmware signing and secure boot harden the device against supply-chain attacks and unauthorized firmware injection. Meets enhanced cybersecurity compliance for sensitive facility environments.
Integration & Compatibility
The IT9383-HTVW (often searched as IT9383 HTVW) integrates via standard ONVIF Profile S/T, ensuring compatibility with major VMS platforms: Milestone XProtect, Axis Camera Station, Vivotek's own VivoNVR, and third-party systems. H.265 support requires modern VMS codec libraries; verify your platform's H.265 playback and analytics pipeline before committing to H.265-only recording on large fleets. PoE power budgeting: if deploying multiple IT9383-HTVW units on the same switch, confirm cumulative current draw during simultaneous LED illumination cycles. Each camera stays within 802.3af limits individually, but a 24-port PoE switch with many high-draw cameras may need capacity planning or segmentation across switch stacks.
When to Choose a Different Model
The IT9383-HTVW suits mid-to-long-distance outdoor scenes where zoom flexibility and reliable night vision justify motorized optics. For ultra-distant perimeter or runway applications (beyond 50+ meters), consider higher-megapixel variants in the Vivotek outdoor lineup or supplementary IR illumination. For indoor only or short-range coverage, fixed-lens models eliminate mechanical complexity and cost. For extremely high-impact environments (ice-prone sites, salt-spray coastal installations), confirm IK10 impact tolerance with your integrator — IK10 is robust but not a guarantee against all mechanical damage.
Frequently Asked Questions
Q: What is the maximum IR illumination range on the IT9383-HTVW?
A: The camera provides 30 meters (98 feet) of infrared range with 850nm LEDs. This covers mid-to-long-distance perimeter scenes in complete darkness. For scenes beyond 30 meters, supplementary external IR or higher-megapixel outdoor fixtures are recommended.
Q: Can the IT9383-HTVW be powered by standard PoE switches?
A: Yes. The camera draws under 13W via IEEE 802.3af PoE, staying within the 15.4W per-port standard. No separate power supply is needed. For multiple cameras, verify your switch's overall power budget and port utilization if LED illumination cycles occur simultaneously across many units.
Q: Does the IT9383-HTVW support H.265 compression?
A: Yes. The camera supports H.265, H.264, and MJPEG. H.265 reduces storage footprint by 40–60% compared to H.264 at similar quality, resulting in meaningful cost savings on 24/7 multi-camera installations. Confirm your VMS supports H.265 playback and analytics before deploying H.265-only recording.
Q: Is local recording available if the NVR or WAN connection fails?
A: Yes. The camera supports MicroSD/SDHC/SDXC cards up to 512GB capacity for edge recording. Video is written directly to the card during backhaul outages, providing a failsafe for critical monitoring scenarios.
Q: What is the operating temperature range for the IT9383-HTVW?
A: −30°C to 55°C (−22°F to 131°F). This covers cold-climate warehouses, northern facilities, and hot desert deployments. Thermal compensation prevents image degradation at temperature extremes.
Q: Does the IT9383-HTVW include audio capability?
A: Yes. The camera has a built-in microphone and supports two-way audio output. This enables audio-event recording, speaker integration for access control and announcements, and on-site personnel communication.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IT9383-HTVW is purpose-built for outdoor perimeter and mid-range surveillance where motorized zoom and dual-light night vision eliminate repeat commissioning visits. The combination of motorized f2.7–13.5mm optics and 30-meter IR range, paired with H.265 codec support, makes this camera cost-effective for large-scale 24/7 deployments.
Technical Highlights:
- Motorized varifocal lens with remote focus control: Eliminates field visits to adjust scene framing. On a 50-camera perimeter system, this saves significant integration labor and ongoing adjustment costs. The 5MP resolution (2592 × 1944) balances zoom capability with manageable bandwidth and storage on legacy backhaul links.
- H.265 reduces storage footprint 40–60% versus H.264: On 24/7 recording, a fleet of 10–20 IT9383-HTVW cameras will generate 2–3 TB per day in H.265 versus 5–6 TB in H.264. Over a 30-day retention window, that's the difference between a single 100TB SAN and a multi-drive NAS—meaningful capex and power savings.
- IP66/IK10 hardening: Survives direct water spray and 11-joule mechanical impact. In coastal salt-spray environments, this eliminates the need for protective housings. The warm white LED + 850nm IR combination handles dusk-to-midnight transitions without switching between separate day/night fixtures.
- PoE under 13W: Stays within standard 802.3af budgets. No power-budget conflicts on a typical 24-port PoE switch, even if 15–20 cameras are deployed on the same stack.
Deployment Considerations:
- H.265 playback and analytics require modern VMS codec support. If your management platform is older (Milestone 2018 or earlier, for example), test H.265 streaming and search performance before committing the fleet to H.265-only recording.
- The 30-meter IR range covers typical campus perimeter and parking-lot approaches but underperforms on ultra-long-distance runway or open-field applications (100+ meters). Supplementary outdoor IR or higher-megapixel models are required for those scenarios.
- MicroSD failsafe recording is valuable but requires regular card health monitoring—SDHC degradation or wear-out over 12–24 months is common in continuous-write scenarios. Budget for periodic card replacement or implement edge-storage monitoring in your VMS.
- Confirm PoE switch cumulative power availability if deploying 10+ IT9383-HTVW units. LED illumination cycles draw peak current; simultaneous activation across many cameras can stress undersized switch supplies.
The IT9383-HTVW is ideal for campus perimeter, critical-facility approaches, and industrial outdoor scenes where zoom flexibility and reliable dusk-to-night transition justify motorized optics and dual illumination. For fixed-framing outdoor surveillance or extreme-distance coverage, lower-cost fixed-lens alternatives or higher-megapixel variants may be more cost-effective.
