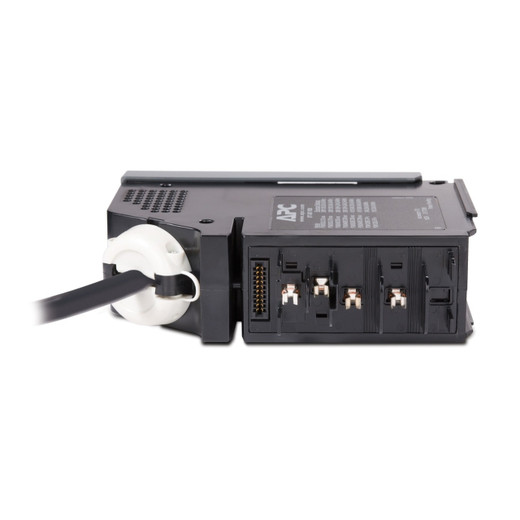

APC by Schneider Electric IT PDM 2 Pole 3 CBL 30A L2-L3 L6-30 1680 - PDM2330L6-23-1680

APC by Schneider Electric PDM2330L6-23-1680 Concise Descriptor

Overview

The APC by Schneider Electric PDM2330L6-23-1680 is a 2-pole, 3-circuit power distribution module designed for IT rack environments. It provides a reliable method to distribute power from a single L6-30 input connection to multiple outlets, ensuring critical equipment receives stable power. This unit is suited for installations where a consolidated power feed is required for servers, network switches, or other rack-mounted IT gear.

Compatibility

This power distribution module is designed to accept a single L6-30P input plug. It is compatible with standard 19-inch rack enclosures and is intended for use with APC's NetShelter racks and similar infrastructure. It is not designed for direct integration with specific camera models or NVRs but serves as a foundational power component within an IT rack that houses such surveillance equipment.

Installation Notes

Installation requires a qualified electrician to terminate the L6-30P input plug to the appropriate power source. The module mounts vertically within a standard 19-inch rack, occupying 2U of vertical space. Ensure the total load does not exceed the 30A rating of the input and the individual circuit ratings. Torque specifications for terminal connections should be followed per electrical code and manufacturer guidelines.

What's in the Box

• 1x APC by Schneider Electric PDM2330L6-23-1680 Power Distribution Module
• 1x Mounting hardware kit
• 1x Installation guide
