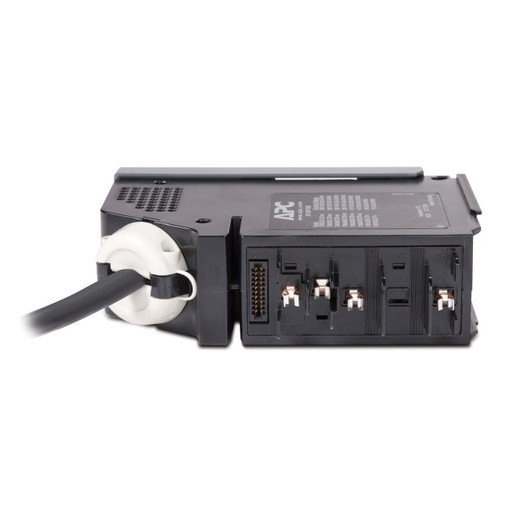

APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1680CM - PDM2330L6-31-1680

APC by Schneider Electric PDM2330L6-31-1680 Concise Descriptor

Overview

The APC by Schneider Electric PDM2330L6-31-1680 is a 30A, 2-pole, 3-wire power distribution module designed for IT rack environments. It provides reliable power connectivity using L6-30 locking receptacles, ensuring secure connections for critical equipment like servers, network switches, and surveillance recorders. This module is engineered to handle high-density power requirements within a standard rack footprint, simplifying power distribution and management in data closets and server rooms.

Compatibility

This power distribution module is designed for integration into standard 19-inch server racks. It utilizes L6-30 locking connectors, ensuring compatibility with equipment that also features L6-30 plugs. It is suitable for use with APC's NetShelter racks and other standard rack enclosures where 30A, 120V power distribution is required.

Installation Notes

Installation requires a qualified electrician. The module accepts a 30A, 120V input via an L6-30P locking plug. Ensure the input power source is correctly rated and protected by an appropriate circuit breaker. The module is designed for vertical mounting within a 19-inch rack, requiring 1U of vertical space. Torque specifications for terminal connections should be followed as per Schneider Electric guidelines to ensure safe and reliable operation.

What's in the Box

• 1x APC PDM2330L6-31-1680 Power Distribution Module
• 1x Rack Mounting Kit
• 1x Installation Guide
