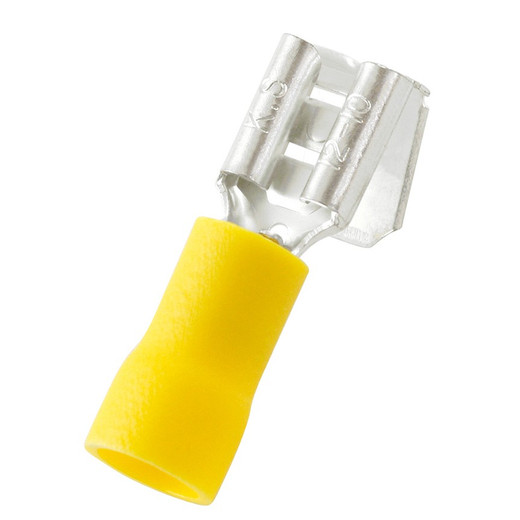

Panduit EDV10-250P-Q StrongHold™ Quick Disconnect Terminal
The Panduit EDV10-250P-Q is a loose-piece quick disconnect terminal engineered for 12-10 AWG wire in commercial security, access control, and fire alarm panel installations. Built under Panduit's StrongHold™ specification, this vinyl-insulated disconnect delivers reliable low-voltage connections to 0.250 × 0.032-inch male tabs—the standard found on power supplies, relays, and terminal blocks across security and life-safety control equipment. Tin-plated brass construction resists corrosion in electrical rooms and plenum environments where moisture and temperature cycling challenge long-term connection integrity. Sold in 25-piece packs, this terminal suits integrators pulling multi-zone panels or retrofitting legacy systems where field-replaceable connections beat hardwired splices.
Key Features
- 12-10 AWG stranded or solid wire compatibility—covers typical control circuit wire sizes
- 0.250 × 0.032-inch tab receptacle fits industry-standard male quick-connect terminals
- Tin-plated brass contact surface inhibits oxidation and maintains conductivity over decades
- Vinyl insulation sleeve rated for 600V—prevents accidental shorts in dense panel wiring
- Loose-piece design supports pre-terminated wire harnesses and rapid field replacement
- cULus listed (E78522) for code-compliant installations in commercial and institutional occupancies
- StrongHold™ construction withstands vibration, thermal cycling, and repeated connect/disconnect cycles
The EDV10-250P-Q accepts 12 AWG and 10 AWG wire—the conductor sizes dominating security panel power feeds, door strike circuits, and auxiliary relay wiring. Installers crimp the terminal barrel using Panduit's CT-Series or equivalent ratcheting crimp tools calibrated for vinyl-insulated ferrules, producing gas-tight connections that meet UL486E pull-test requirements. The 0.250-inch tab width matches the most common quick-disconnect standard in low-voltage control gear; the 0.032-inch thickness ensures positive contact retention without requiring secondary locks. Tin plating on the brass contact keeps resistance low even when panels sit in unconditioned electrical closets or rooftop equipment rooms where humidity and thermal swings corrode bare copper terminals within months.
Quick-disconnect terminations replace wire-nut splices and screw terminals in applications where service speed matters—access control integrators building reader-to-controller harnesses can pre-crimp EDV10-250P-Q terminals onto cable assemblies and snap them onto power supply tabs in seconds, eliminating the torque wrenches and stripped screws that slow down rack builds. Fire alarm technicians retrofitting notification circuits benefit from the loose-piece format: when replacing a failed power supply or relay module, you disconnect the terminal rather than cutting and re-stripping wire. The vinyl sleeve's color-coding aids gauge identification during troubleshooting and reduces mis-termination errors on large panel builds where multiple wire sizes converge at the same terminal strip.
cULus listing under file E78522 confirms the EDV10-250P-Q meets voltage, temperature, and flammability standards required by the National Electrical Code and NFPA 72 for fire alarm and security system wiring. StrongHold™ branding indicates Panduit's enhanced crimp-barrel geometry and tighter brass-grain specification, targeting installations where vibration—elevator machine rooms, rooftop units—or repeated service cycles would fatigue commodity terminals. The 25-piece pack size aligns with typical panel build quantities, providing enough terminals for a mid-size access system or fire alarm sub-panel without forcing bulk contractor-reel purchases, yet available in 5,000-piece cartons when standardizing parts inventory across multi-site integration projects.
