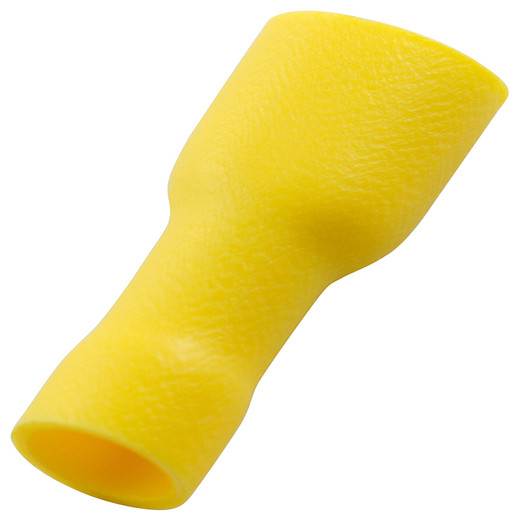

Panduit EDV10-250FIB-Q StrongHold™ Female Disconnect Terminal

The Panduit EDV10-250FIB-Q is a StrongHold™ contractor-grade female disconnect terminal designed for 12-10 AWG wire in low-voltage power distribution, access control panels, and security system installations. The .250 x .032" quick-disconnect tab accepts industry-standard male blade terminals, vinyl insulation provides environmental protection, and tin-plated copper construction delivers reliable conductivity in indoor enclosures. Supplied in 25-piece contractor packs, this terminal is cULus listed under E78522 for commercial electrical code compliance.

Key Features

StrongHold™ contractor-grade construction for reliable crimp retention and long-term connection integrity

.250 x .032" quick-disconnect tab fits standard male blade terminals on power supplies, relays, and control modules

12-10 AWG wire range accommodates most low-voltage power and signal wiring in security installations

Vinyl fully insulated barrel and sleeve prevent accidental shorts in crowded enclosures

Tin-plated copper contact surface resists corrosion and maintains low contact resistance over time

cULus listed (E78522) for compliance with NEC Article 110.3(B) and local electrical codes

25-piece package quantity sized for job-site use; 10,000-piece carton available for large projects

The EDV10-250FIB-Q uses a funnel-entry barrel design that accepts 12 AWG (0.0808" diameter) and 10 AWG (0.1019" diameter) stranded or solid copper wire. The vinyl insulation extends over the crimp barrel and wire entry, providing a 600V rating and preventing accidental contact with adjacent terminals in tight panel layouts. The .250 x .032" female receptacle tab is the most common quick-disconnect size in commercial access control, intrusion panels, and auxiliary power distribution—matching male spade terminals on Altronix, Securitron, and most OEM power supplies. Tin plating over the copper contact area provides corrosion resistance in indoor environments and maintains conductivity below 5 milliohms for low-voltage DC circuits.

StrongHold™ terminals are built for contractor-grade installations where crimp quality and long-term reliability matter. The funnel-entry barrel is sized for proper crimp compression with Panduit CT-series hand crimpers or standard ratcheting tools—no specialized dies required. The insulation support sleeve extends 0.97" overall length, providing strain relief and preventing wire pullout under vibration or thermal cycling. Integrators installing access control strikes, magnetic locks, or reader power runs use the EDV10-250FIB-Q to terminate 12 AWG or 10 AWG home-run power cables at control panels, then connect to power supply output terminals via the quick-disconnect interface. The vinyl insulation withstands temperatures from -40°F to 221°F, suitable for indoor enclosures in both climate-controlled and unconditioned spaces.

The EDV10-250FIB-Q is cULus listed under file E78522, meeting UL 310 (Electrical Quick-Connect Terminals) and CSA C22.2 requirements for commercial electrical installations. This listing satisfies NEC Article 110.3(B) and AHJ inspection requirements in municipal, federal, and institutional projects where listed components are mandatory. The 25-piece contractor pack provides enough terminals for a typical multi-door access control installation, while the 10,000-piece carton (400 bags) supports large campus deployments or integrator inventory stocking.
