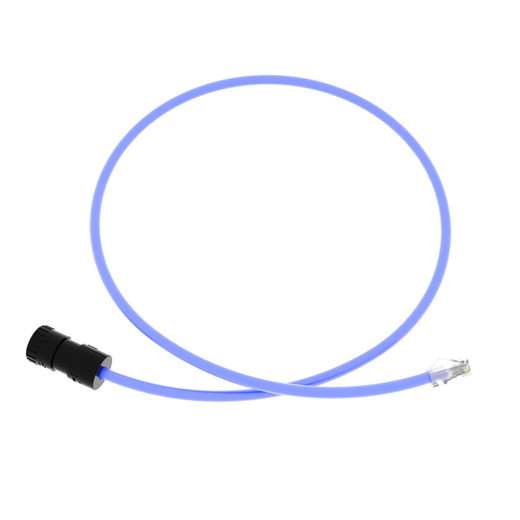

Panduit FC-ICCP1MBU TX6A Category 6A UTP FieldCord

The Panduit FC-ICCP1MBU solves a recurring install headache: terminating network connections in tight equipment spaces where standard patch cords can't flex and pre-made cords leave you hunting for the right length. This 1-meter Category 6A UTP FieldCord ships with a factory-installed low-profile RJ45 plug on one end and a field-terminable splice connector on the other, letting you land it directly onto structured cabling without crimping tools or punch-down blocks. Plenum-rated 23AWG construction qualifies it for air-handling installations, and full Category 6A performance means it handles 10GBASE-T and PoE++ up to 100 watts without throttling.

Key Features

Pre-terminated 1-meter (39.4") plenum-rated Category 6A UTP cord eliminates field crimping

Compact RJ45 plug fits where standard boots won't — ideal for dense patch panels and tight enclosures

Field-terminable splice connector mates to 4-pair 100-ohm UTP without punch-down tools

Exceeds ANSI/TIA Category 6A and ISO Class EA specs when terminated to Panduit Cat 6A cable

Supports PoE, PoE+, and PoE++ (Type 3/4) up to 100 watts for high-power endpoints

Blue jacket for visual circuit identification in multi-network environments

UL 94 V-0 flame rating and plenum compliance for air-handling space installations

The TX6A FieldCord construction pairs 23AWG stranded copper conductors with Panduit's balanced-twist geometry to maintain alien crosstalk margins across the full 500 MHz bandwidth. The factory-installed RJ45 plug uses a slim-profile strain relief that measures roughly half the depth of a standard Cat 6A plug, letting you close cabinet doors and rack-mount equipment without fighting boot interference. The opposite end terminates in an insulation-displacement splice connector that accepts 22-26 AWG solid or stranded conductors; strip the cable jacket, seat the pairs in the color-coded wire guides, and snap the cap for a gas-tight mechanical bond. No impact tool required. The assembly is rated for up to 200 mating cycles on the RJ45 end, and the splice connector provides a permanent connection rated for the life of the installation.

Field cords shine in retrofit and high-density deployments where running a full structured cable to the device isn't practical. Use them for IP cameras mounted in tight soffit pockets, PoE access points installed above drop ceilings, or rack-mount switches in shallow-depth enclosures where rear-plug clearance is measured in millimeters. The 1-meter length bridges the gap between the device and your nearest home-run or consolidation point without the slack management headaches of a 3-foot patch cord. Plenum rating eliminates the need for conduit in air-return spaces, and Category 6A certification future-proofs the link for 10-gig upgrades without rewiring. The blue jacket integrates with color-coded infrastructure schemes — common in environments running parallel networks for voice, data, and building automation on separate VLANs.

The FC-ICCP1MBU meets ANSI/TIA-1096-A (formerly FCC Part 68) and IEC-60603-7 interconnection standards, and it's RoHS compliant for projects with lead-free material mandates. When properly terminated to Panduit TX6A or Pan-Net copper cable, the assembly exceeds Category 6A channel performance requirements with headroom on insertion loss and return loss — critical for PoE++ installations where DC resistance and heat dissipation directly affect power delivery. Ships in single units; carton quantity is 10 for stock orders. If you're building out a high-density network edge where every cubic inch counts, this is the field-terminable cord that lets you land connections without the bulk, the crimping, or the compliance worries.
