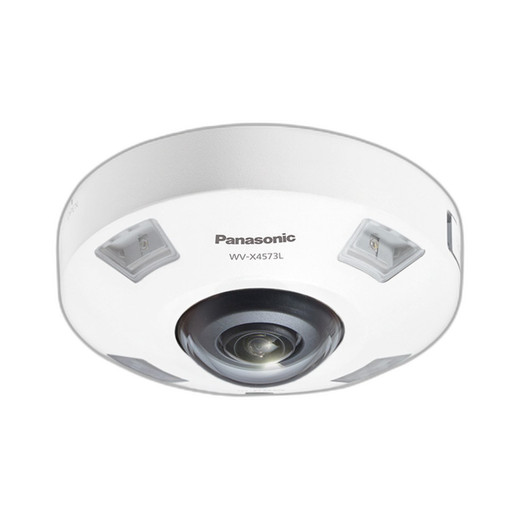

i-PRO WV-X4573L 9MP Vandal-Resistant Fixed Outdoor Dome IP Camera

i-PRO WV-X4573L 12MP Fisheye Dome Camera

Overview

The WV-X4573L is a 12MP fixed outdoor fisheye dome engineered for high-risk environments where impact and weather resistance are non-negotiable. IK10 rating handles 50J shock loads (parking structure collisions, thrown objects); IP66 sealing keeps condensation and direct spray out of optical and electronic components. The 360-degree fisheye sensor with intelligent dewarping eliminates blind spots in retail courts, transit stations, and loading docks—critical where perimeter coverage without tilt/pan must be proven. H.265 Smart Coding cuts bandwidth by 40–60% relative to H.264, which matters when you're recording 12MP continuously across dozens of cameras on a shared network.

Compatibility

ONVIF Profile S integration supports standard VMS platforms (Milestone, Genetec, March Networks) via HTTP metadata delivery. PoE (802.3af) powered—draws minimal current compatible with any standard 802.3af switch or injector; 1000 Mbps Ethernet required to avoid stream bottlenecks at 12MP. Audio input and SD/SDHC edge recording enable local alarm triggering and isolated evidence retention. People Counting and heat map analytics output via ONVIF metadata or direct HTTP notification to most modern VMS systems.

Installation Notes

Operating range –40°C to +60°C (power-on –30°C to +60°C); dehumidification device integrated for condensation-prone coastal or humid enclosures. Shock-resistant 50J per IEC 60068-2-75. Built-in IR LED delivers 10m (33 feet) illumination in zero lux; verify IR range coverage in your scene before final placement. Mount ceiling, wall, pole, corner, or rack. Ensure switch supports 1000 Mbps Ethernet to avoid bandwidth starvation. Full encryption with FIPS 140-2 module; SD card recording supports encrypted local storage.
