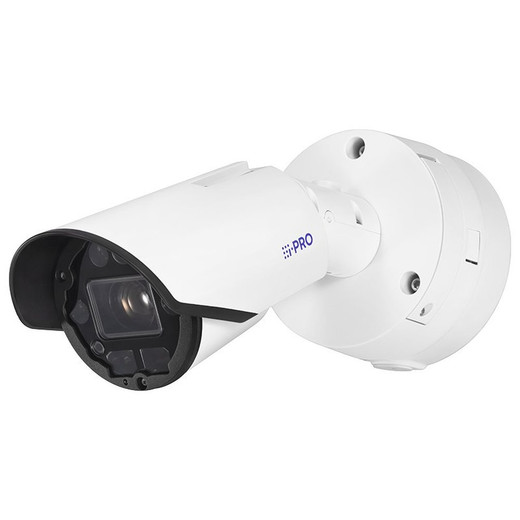

i-PRO WV-X15501-Z3L 5MP Outdoor IR Bullet Camera with 30X Zoom
The i-PRO WV-X15501-Z3L is a motorized varifocal outdoor bullet engineered for perimeter and critical infrastructure surveillance where long-range threat detection and forensic-grade detail matter. Built on a 1/2.8-inch CMOS sensor, the camera delivers 5MP resolution (2592 × 1944) paired with a 4.5–135mm motorized lens offering 30x optical zoom. This combination lets you frame and re-frame coverage zones from the control room without repositioning hardware—a genuine time-saver on multi-camera deployments where pan-tilt-zoom (PTZ) functionality is valuable but full PTZ hardware cost or complexity isn't justified.
The integrated 3.0m (10 ft) infrared LED array with 850nm wavelength and day/night switchability delivers zero-lux night vision in complete darkness while preserving full-color imaging during daylight hours. You eliminate the need for external illuminators on perimeters, back lots, or utility corridors—the IR fires automatically as ambient light drops. IP66 and NEMA 4X sealing mean direct rainfall and dust won't infiltrate the optics or electronics; IK10 vandal resistance (equivalent to a 5kg steel ball dropped from 1.25m) handles physical tampering attempts common in unsecured or high-theft environments. Together, these durability ratings match the demands of 24/7 outdoor operation without seasonal redeployment.
Single PoE++ (Class 4) delivery eliminates dedicated 12VDC power infrastructure at distributed outdoor sites. The camera draws Class 4 power, so you avoid undersized switch power budgets and the cost of remote power supplies or power-over-Ethernet injectors. H.265 video compression cuts bandwidth and storage roughly 40–60% compared to H.264 at equivalent quality—a material cost factor when recording 24/7 across a dozen or more cameras on a multi-camera network video recorder (NVR). The WV-X15501-Z3L outdoor camera also supports H.264 and MJPEG, so legacy or specialized VMS systems won't be left behind.
Embedded AI analytics for license plate recognition (LPR) and facial recognition run on the camera itself, shifting threat detection from human-intensive video review to edge-based automated flagging. Alerts fire in real time without taxing your NVR's CPU or saturating your network with streaming video feeds. Secure firmware, secure boot, and HTTPS encryption protect against unauthorized access and firmware tampering—non-negotiable for government, utility, or sensitive critical infrastructure deployments.
Key Features
- 5MP Resolution (2592 × 1944): Captures fine forensic detail across wide-area zones. Lower-megapixel cameras lose license plate digits and facial characteristics at distance; this 5MP sensor delivers the clarity needed for forensic identification at perimeter ranges.
- 30x Motorized Optical Zoom (4.5–135mm Varifocal): Remote focus and framing adjustments from the control room eliminate the need for physical site visits to re-aim the camera. Single unit covers multiple zones or threat corridors without hardware repositioning.
- 3.0m Integrated IR with Day/Night Switchability: Built-in 850nm LEDs activate automatically in darkness, delivering full-color images during the day and switching to B&W night mode. No external illuminators required for perimeter or after-hours surveillance.
- Optical Image Stabilization: Vibration from wind, adjacent machinery, or mounting flex is reduced, preventing motion artifacts and blur that degrade video quality and analytics accuracy on moving subjects.
- License Plate Recognition (LPR) and Facial Recognition: On-camera AI analytics process video at the edge, generating real-time alerts without streaming the entire video feed upstream. Reduces NVR CPU load and VPN bandwidth on remote monitoring scenarios.
- IP66 / NEMA 4X / IK10 Durability: IP66 resists direct rainfall and dust ingress; NEMA 4X meets industrial enclosure sealing standards; IK10 handles vandal impact. Deploy without worry in exposed perimeters, parking areas, or high-risk theft zones.
- PoE++ (Class 4) Single-Cable Power: Eliminates separate 12VDC power supplies at outdoor locations, reducing installation cost, cable clutter, and the complexity of power conditioning in humid environments.
- H.265 / H.264 / MJPEG Compression: H.265 cuts file sizes 40–60% versus H.264, enabling longer retention or higher frame rates on fixed storage budgets. H.264 and MJPEG support ensure compatibility with legacy or specialized VMS platforms.
- Audio Support: Built-in microphone and speaker enable two-way communication for situational announcements, deterrent messaging, or real-time operator interaction at monitored locations.
- microSD Local Backup: MicroSD card slot provides failover recording if network connectivity drops, ensuring no loss of forensic footage during WAN outages.
- Secure Firmware and Boot: Signed firmware, secure boot, and HTTPS encryption prevent unauthorized access and firmware tampering—critical for CISA-sensitive government or utility environments.
Integration & Compatibility
The WV-X15501-Z3L is ONVIF-compliant, integrating with standard VMS platforms including Milestone XProtect, Genetec Security Center, and i-PRO's own surveillance software. On-camera LPR and facial recognition reduce VMS server load, allowing centralized archival and alerting without edge-to-core bandwidth spikes. The camera's PoE++ power demand fits Class 4 budgets on properly provisioned switches; confirm your PoE network switch supports Class 4 allocation if deploying multiple units. Audio I/O and microSD support integrate seamlessly with VMS platforms that expose speaker and local storage APIs.
When to Choose a Different Model
If your deployment requires coverage distances beyond 3.0m of IR range, evaluate higher-end i-PRO bullet models with extended IR arrays (5m or 10m+). If fixed-position, wide-area coverage without zoom is sufficient, a fixed-lens outdoor bullet will reduce optics cost and simplify cabling. If indoor-only environments are the target, consider i-PRO's enclosed or dome variants rated for lower IP standards, which may offer cost or aesthetic advantages. For PTZ-style 360° pan-and-tilt with motorized zoom, dedicated PTZ housings provide continuous rotation and faster pan speeds; the WV-X15501-Z3L's motorized zoom is a zoom-only convenience, not a PTZ replacement.
Frequently Asked Questions
Q: What is the maximum IR range on the WV-X15501-Z3L?
A: The integrated infrared LED array delivers 3.0m (10 ft) of illumination. Beyond that distance, subjects appear as silhouettes or without detail in zero-lux conditions. If you need extended IR range, evaluate higher-wattage i-PRO models with 5m or longer arrays.
Q: Does the WV-X15501-Z3L support ONVIF?
A: Yes, it is ONVIF-compliant, integrating with Milestone XProtect, Genetec Security Center, and other standard VMS platforms that expose ONVIF interfaces.
Q: How much bandwidth does H.265 video save compared to H.264?
A: H.265 reduces file size and bandwidth approximately 40–60% compared to H.264 at equivalent quality, depending on scene complexity and motion. Over 24/7 multi-camera recording, this translates to meaningful storage and NVR throughput savings.
Q: Can the WV-X15501-Z3L be powered by standard PoE (802.3af)?
A: No. The camera requires PoE++ (Class 4, 802.3bt standard). Standard 802.3af (15.4W) is insufficient. Verify your switch supports PoE++ Class 4 delivery before deployment.
Q: What happens to night vision if I disable the IR LEDs?
A: With IR disabled, the camera switches to B&W mode but requires ambient light (moonlight, street lighting, floodlights) to produce usable video in darkness. In complete zero-lux conditions without external light, the image will be dark and unusable. Enable IR for true no-light operation.
Q: Does the WV-X15501-Z3L record locally, or is NVR recording mandatory?
A: The camera has a microSD card slot for local failover recording if network connectivity drops. Primary recording typically occurs on an NVR; microSD serves as a backup, not as primary storage for 24/7 retention due to microSD capacity and write-cycle limitations.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-X15501-Z3L is a solid fit for perimeter and utility surveillance where you need optical zoom flexibility without full PTZ infrastructure. The 30x motorized varifocal (4.5–135mm) handles framing adjustments from the control room, and the 5MP sensor holds forensic detail across those longer distances. What sets it apart is the engineering discipline: IP66/IK10 durability, edge-based LPR and facial recognition to cut downstream CPU load, and H.265 compression that meaningfully reduces storage costs on multi-camera systems. PoE++ Class 4 power is non-negotiable on your switch design—verify it before commit.
Technical Highlights:
- 30x Motorized Optical Zoom (4.5–135mm): Remote focus and framing from the control room. No site visits to adjust coverage if a threat corridor shifts or a new perimeter zone needs monitoring. Meaningful time savings on 10+ camera deployments.
- 5MP Sensor with Forensic-Grade Detail: 2592 × 1944 resolution holds license plate characters and facial landmarks at distance. Lower-resolution cameras lose that information; you'd have to reposition or add additional units to compensate.
- H.265 Compression (40–60% Smaller Than H.264): Reducing file size by half across 24/7 recording on a dozen cameras is the difference between a 20TB NVR and a 40TB NVR. Real cost impact when budgeting storage infrastructure.
- 3.0m IR LED Array: Built-in illumination eliminates external light fixtures on perimeters. Practical deployment savings on sites without existing floodlights; also easier to hide the IR source than outdoor flood lights.
- Edge-Based LPR & Facial Recognition: On-camera analytics eliminate streaming entire video feeds to a central VMS. Reduces NVR CPU bottlenecks and bandwidth on remote WAN links. Alerts fire at the edge before data leaves the site.
Deployment Considerations:
- PoE++ Class 4 Requirement: This is non-negotiable. Standard 802.3af switches won't power it. If your switch doesn't support Class 4, budget for a separate PoE injector or switch upgrade. Many installers overlook this and create site callbacks.
- 3.0m IR Limitation: Night vision is zero-lux, but only within 10 feet. Beyond that distance in complete darkness, the camera reverts to B&W and needs ambient light. If your perimeter extends 50+ feet and you need illumination that far, budget external IR emitters or floodlights and size accordingly.
- Firmware & Secure Boot: Government and critical infrastructure deployments benefit from the signed firmware and secure boot; standard commercial sites should still verify firmware update processes align with their change-control procedures.
- Audio I/O Is Present: If your VMS doesn't expose audio APIs or your security policy disallows recorded audio, disable the microphone and speaker in the camera web interface. Don't assume audio will integrate seamlessly without testing first.
Deploy the WV-X15501-Z3L where you need long-range forensic detail, edge intelligence, and minimal human intervention on camera positioning. Parking lots, utility perimeters, and gated facility entrances are the sweet spot. Skip it if you need IR beyond 10 feet in complete darkness or if your network lacks PoE++ Class 4 capacity—the workarounds will cost more than the savings.
